Description

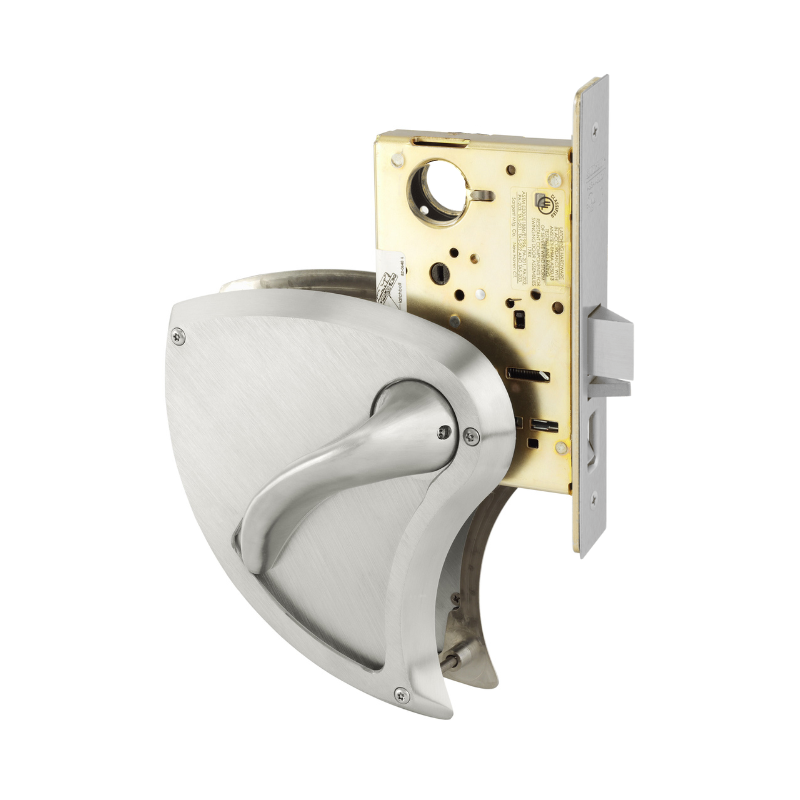

Sargent 8255-BHW-US32D-LC Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent 8255-BHW-US32D-LC Behavioral Health Mortise Lock is designed for office or entry use, featuring a key that retracts the latch and BHW trim. This Grade 1 lock comes without a cylinder and offers field reversibility, finished in satin stainless steel (630)

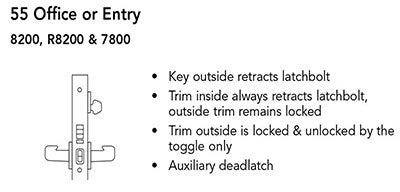

- Office or Entry Function:
- Key outside retracts latchbolt
- Trim inside always retracts latchbolt, outside trim remains locked
- Trim outside is locked & unlocked by the toggle only
- Auxiliary deadlatch
- Key outside retracts latchbolt
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 55 Office or Entry Function |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type |
Less Cylinder |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
