Sargent 8265-LNMD Privacy Bedroom or Bath Mortise Lock, MD Lever, LN Rose

  • SKU: 8265LNMDUS26D

Sargent 8265-LNMD Privacy Bedroom or Bath Mortise Lock, MD Lever, LN Rose

  • SKU: 8265LNMDUS26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$652.57/ea
0% Net 30 Days: Apply Now
Finish: US26D Satin Chrome (626)

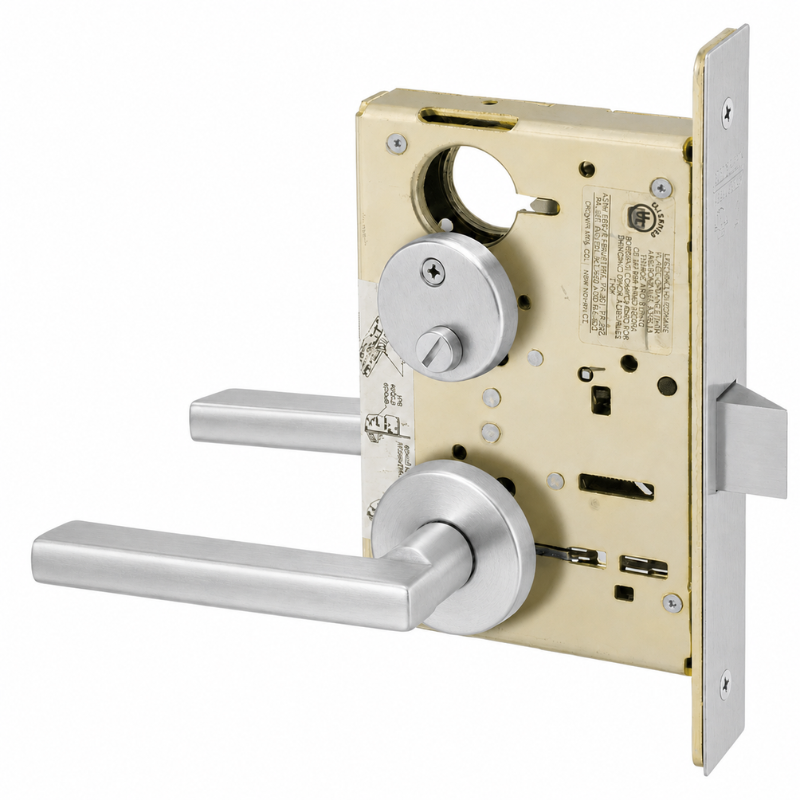

Sargent 8265-LNMD Privacy Bedroom or Bath Mortise Lock, Outside Lever Locked by Inside Thumbturn, Emergency Release Outside, LN Rose, MD Lever, Grade 1, Field Reversible

Features

  • Privacy function ideal for bedrooms, bathrooms, and similar rooms requiring occupancy control.
  • MD lever design paired with the LN rose for a balanced, modern trim.
  • Field reversible handing simplifies installation and reduces the need for handed inventory.
  • ASA strike included for a standard, ready-to-install fit.
  • ANSI/BHMA Grade 1 rated for maximum durability in demanding environments.
  • Robust mortise case construction engineered for long service life.

Functional Details

The 8265 privacy function allows the door to be locked from the inside for occupancy privacy, with an emergency release available from the outside for safety. The interior lever operates freely to allow immediate egress at all times.

  • Privacy, Bedroom or Bath - Deadbolt thrown by turn/push button inside and can only be retracted by inside lever or emergency function outside.
  • Both levers operate latchbolt except when deadbolt is thrown.
  • Turn/push button in inner lever provides privacy.
  • Deadbolt is automatically retracted when inside lever is turned.
Manufacturer Sargent
SKU 8265-LNMD
Grade ANSI/BHMA Grade 1
Function Privacy, Bedroom or Bath (8265)
Lever Style MD Lever
Rose Style LN Rose
Strike ASA Strike
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
Limited Warranty Yes
Series 8200 Mortise Lock Series
Backset 2-3/4"
Latchbolt Throw 3/4"
Deadbolt Throw 1"
Door Thickness 1-3/4" standard
Case Depth Mortise case standard depth
Faceplate 8" x 1-1/4" standard
Strike Type ASA 1-1/4" x 4-7/8"
ANSI Standard ANSI/BHMA A156.13 Grade 1
Cross Bore Standard mortise prep

Cylinder Mortise Handing Chart
