Description

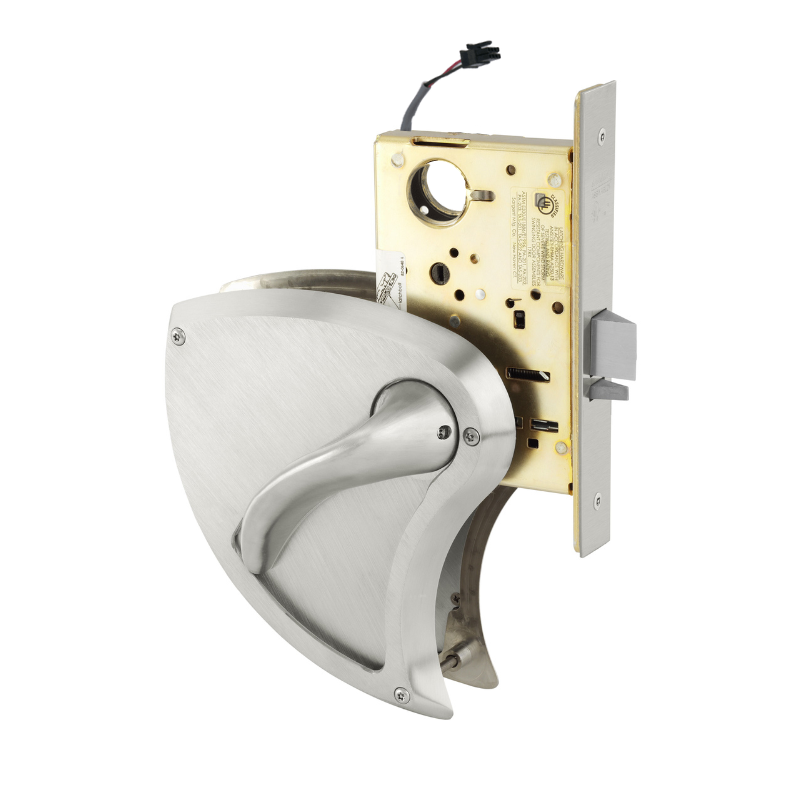

Sargent 8270-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Single Cylinder, Fail Safe 24VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel,
The Sargent 8270-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock features BHW trim and operates on a fail-safe 24VDC system. This Grade 1, single-cylinder lock is field reversible and comes without a cylinder. It is finished in satin stainless steel (630) for durability and performance in demanding healthcare environments.

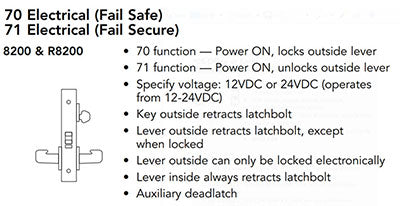

- Electrical (Fail Safe) Function:
- 70 function — Power ON, locks outside lever
- Key outside retracts latchbolt
- Lever outside retracts latchbolt, except when locked
- Lever outside can only be locked electronically
- Lever inside always retracts latchbolt
- Auxiliary deadlatch
- 70 function — Power ON, locks outside lever
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
Technical Specs
| Function | 70 Electrical (Fail Safe) |
| Lever/Knob Design |
BHW Lever |
| Cylinder Type |
Less Cylinder |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
