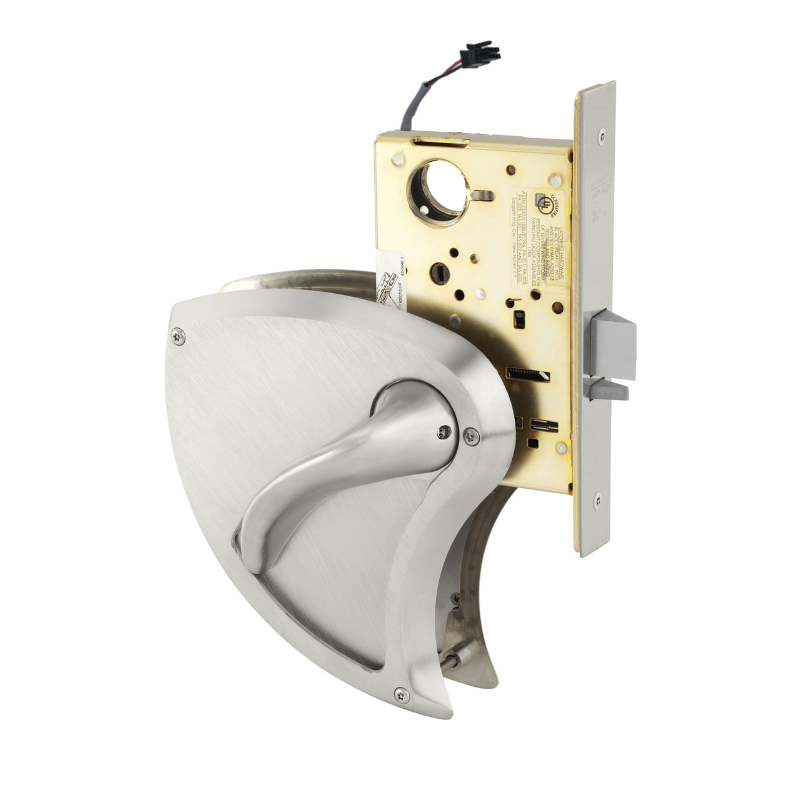

Sargent 8272-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Fail Safe 24VDC, Less Cylinder, Satin Stainless Steel

  • SKU: 8272BHW24VDCUS32DLHLC
Sargent 8272-BHW-24VDC-US32D-LC
Sargent 8272-BHW-24VDC-US32D-LC
All SARGENT Products

Sargent 8272-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Fail Safe 24VDC, Less Cylinder, Satin Stainless Steel

  • SKU: 8272BHW24VDCUS32DLHLC
$1,730.34/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8272-BHW-24VDC-US32D-LC Behav...
Quantity
–
+
$1,730.34
Sargent Mortise Cylinders - Multiple ...
Quantity
–
+
From $117.39
Total

Sargent 8272-BHW-24VDC-US32D-LC Behavioral Health Electrified Mortise Lock, BHW Trim, Double Cylinder Fail Safe 24VDC, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8272-BHW-24VDC-US32D-LC is a Behavioral Health electrified mortise lock with BHW trim, designed for fail-safe operation at 24VDC. It features a double cylinder configuration, is Grade 1 rated, field reversible, and comes without a cylinder. The lock is finished in 630 satin stainless steel for durability and aesthetics.

  • Electrical (Fail Safe) Function:
    • 72 function — Power ON, locks both levers
    • Key on either side retracts latchbolt
    • Lever from either side retracts latchbolt, except when levers are locked
    • Both Levers can only be locked & unlocked electronically
    • Levers can not be locked separately, only together
    • Auxiliary deadlatch
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 72 Electrical (Fail Safe)
Lever/Knob Design BHW Lever
Cylinder Type Less Cylinder
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
