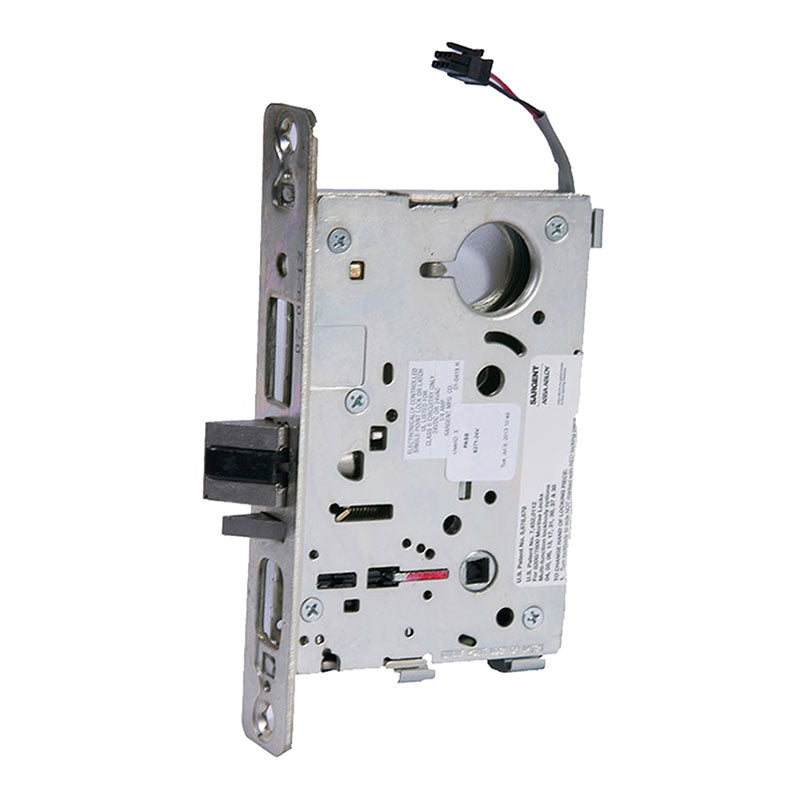

Sargent 8273-12V-US26D Lock Body Only, Fail Secure, Double Cylinder, Satin Chrome Finish

  • SKU: 827312VUS26D
Sargent 8273-12V-US26D
Sargent 8273-12V-US26D Lock Body Only, Fail Secure, Double Cylinder, Satin Chrome Finish
Sargent 8273-12V-US26D
Sargent 8273-12V-US26D Lock Body Only, Fail Secure, Double Cylinder, Satin Chrome Finish
All SARGENT Products

Sargent 8273-12V-US26D Lock Body Only, Fail Secure, Double Cylinder, Satin Chrome Finish

  • SKU: 827312VUS26D
$596.21/ea
Available (2‑3 Weeks)
2-3 Weeks Lead Time

Sargent 8273-12V-US26D Lock Body Only, Electro Mechanical Fail Secure Function, Double Cylinder, 12VDC, Satin Chrome Finish

The Sargent 8273-12V-US26D Lock Body Only features an Electro Mechanical Fail Secure Function and is designed for use with a Double Cylinder. It operates on 12VDC and boasts a sleek Satin Chrome Finish.

73 Electric (Fail Secure)

  • 73 function — Power ON, unlocks both levers
  • Specify voltage: 12VDC
  • Key on either side retracts latchbolt
  • Lever from either side retracts latchbolt, except when levers are locked
  • Both Levers can only be locked & unlocked electronically
  • Levers can not be locked separately, only together
  • Auxiliary deadlatch
Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
Application Complete Lock
BAA Qualified Yes
Limited Warranty 2 Years
Fire Rated 2 Hours {B}



Function 73-Electrical Fail Secure
Side Locked Both side
Door Thickness 1 3/4"
Latch Type Dead Latch (Guarded)
Latch Backset Dim 2 3/4 In.
Lock Face Size 8" X 1 1/4"
Bolt Projection 3/4"
Strike Number 82-0110
Strike Type ASA
Strike Height 4 7/8"
Strike Width 1 1/4"
Screws Combination
Power Hard Wired
Operating Voltage 12VDC
Amp Draw 500mA Peak, 15mA Holding
Product Type Electric Mortise Lock


Product Cut Sheet

Cylinder Mortise Handing Chart
