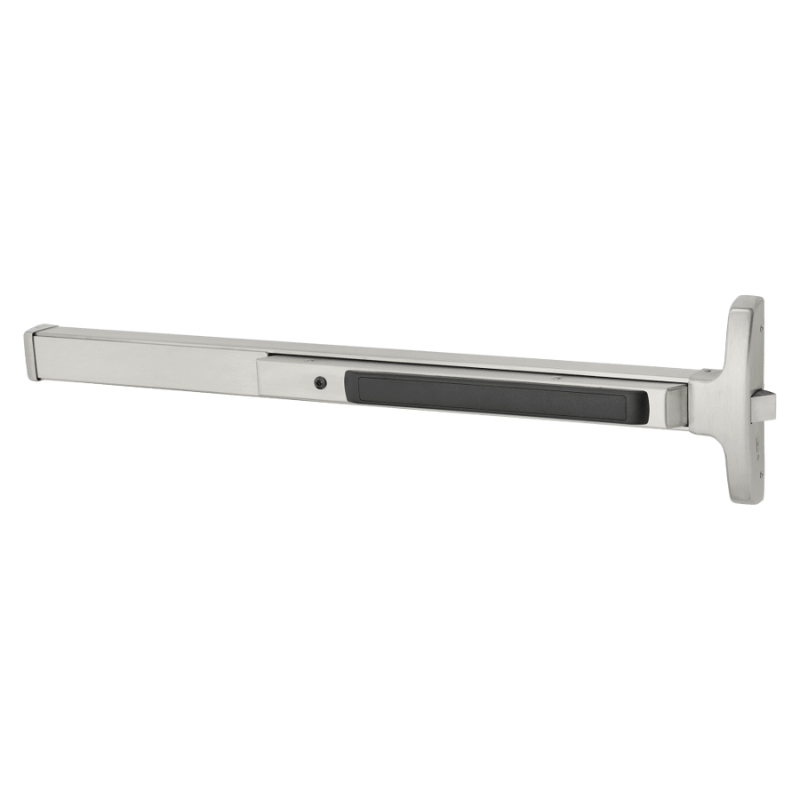

Sargent 8510-G-US32D
Sargent 8510-G-US10B
Sargent 8510-G-US3
Sargent 8510-G-US4
Sargent 8510-G-US10
Sargent 8510-G-US10B
Sargent 8510-G-US32
Sargent 8510-G-BSP
Sargent 8510-G-WSP
Sargent 8510-G-US32D
Sargent 8510-G-US10B
Sargent 8510-G-US3
Sargent 8510-G-US4
Sargent 8510-G-US10
Sargent 8510-G-US10B
Sargent 8510-G-US32
Sargent 8510-G-BSP
Sargent 8510-G-WSP
All SARGENT Products

Sargent 8510-G Narrow Stile Rim Exit Device, Exit Only, For 43"-48" Dr Width, Field Reversible

  • SKU: 8510GUS32D
$1,398.47/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8510-G Narrow Stile Rim Exit ...
Quantity
–
+
From $1,398.47
Sargent 710-ETL Exit Device, Dummy Le...
Quantity
–
+
$533.03
Sargent M56A-G Electric Latch Retract...
Quantity
–
+
$599.17
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $372.33
Total

Sargent 8510-G Narrow Stile Rim Exit Device, Exit Only, 43"-48" Dr Width,  Reversible, Hex Key Dogging, Grade 1

Sargent 8510-G Narrow Stile Rim Exit Device delivers Grade 1 security for exit-only applications. Featuring a 43"-48" bar compatible with standard door widths, field reversibility for flexible installation, and hex key dogging functionality. Engineered to meet commercial building safety requirements with superior durability.

  • Designed for narrow stile applications (e.g., aluminum frame full glass doors)
  • Single and double doors with mullion
  • Single point rim latching device
  • Quiet operation and solid security
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) and UL305 (Panic) listed
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Exit Only
Device Length 48"
Includes Trim No
Minimum Stile Size 2"
Door Material Aluminum
Door Width 43 In. to 48 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated No
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
