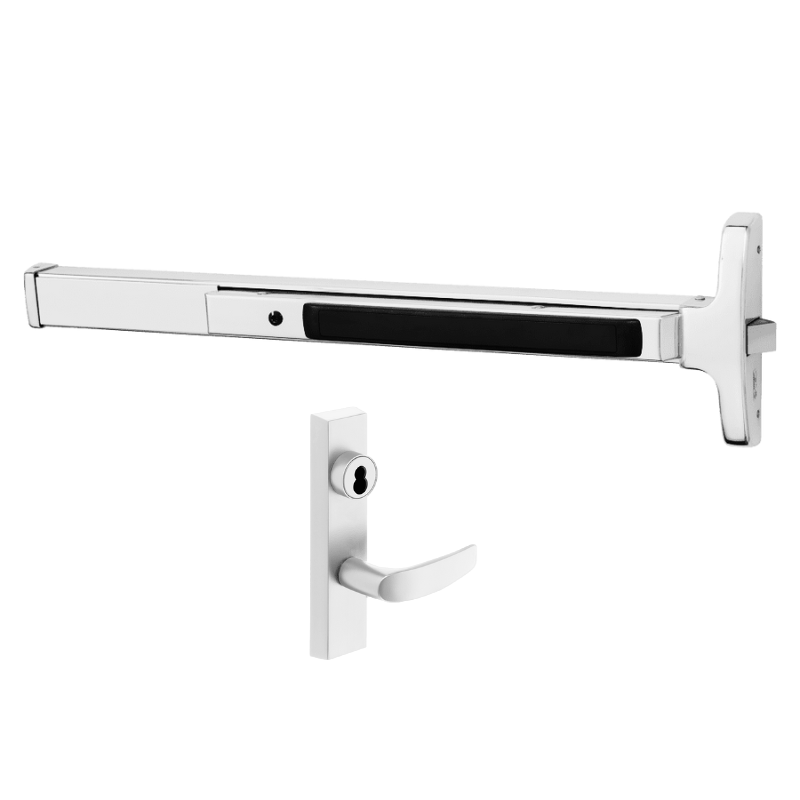

Sargent60-8513-F-ETB-WSP
Sargent70-8513-F-ETB-BSP
Sargent70-8513-F-ETB-US3
Sargent70-8513-F-ETB-US4
Sargent70-8513-F-ETB-US10
Sargent70-8513-F-ETB-US10B
Sargent70-8513-F-ETB-US32
Sargent70-8513-F-ETB-US32D
Sargent70-8513-F-ETB-WSP
Sargent8513-F-ETB-BSP

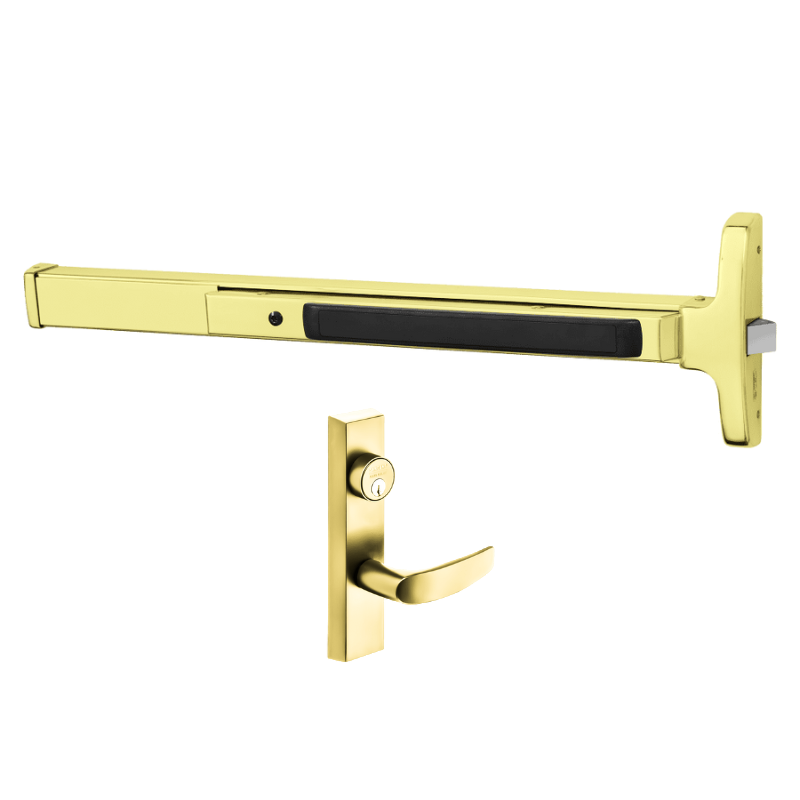

Sargent8513-F-ETB-US3

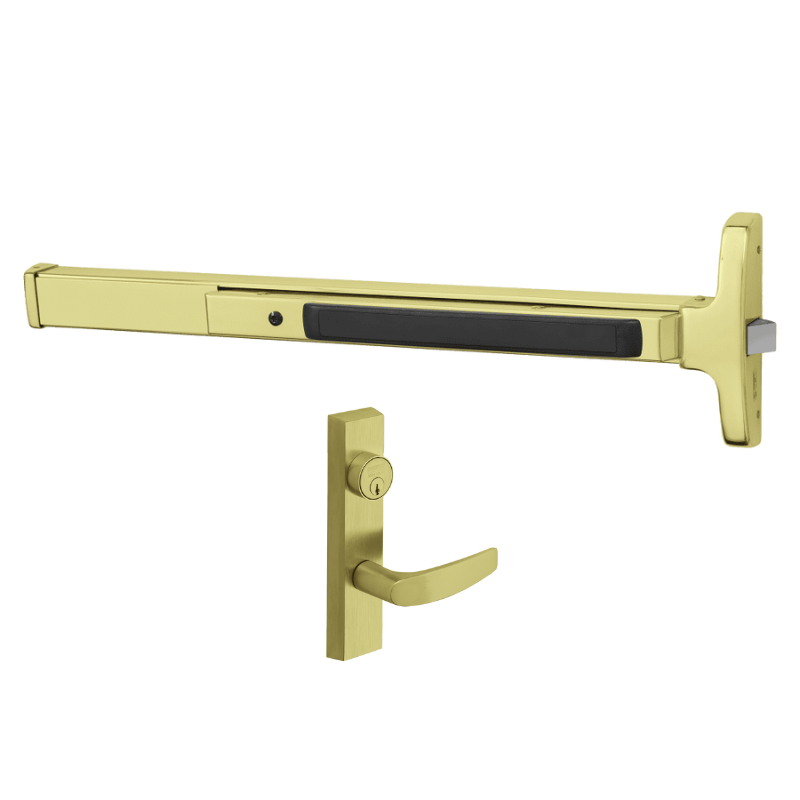

Sargent8513-F-ETB-US4
Sargent8513-F-ETB-US10
Sargent8513-F-ETB-US10B
Sargent8513-F-ETB-US32
Sargent8513-F-ETB-US32D
Sargent8513-F-ETB-US32D
Sargent60-8513-F-ETB-BSP
Sargent60-8513-F-ETB-US3
Sargent60-8513-F-ETB-US4
Sargent60-8513-F-ETB-US10
Sargent60-8513-F-ETB-US10B

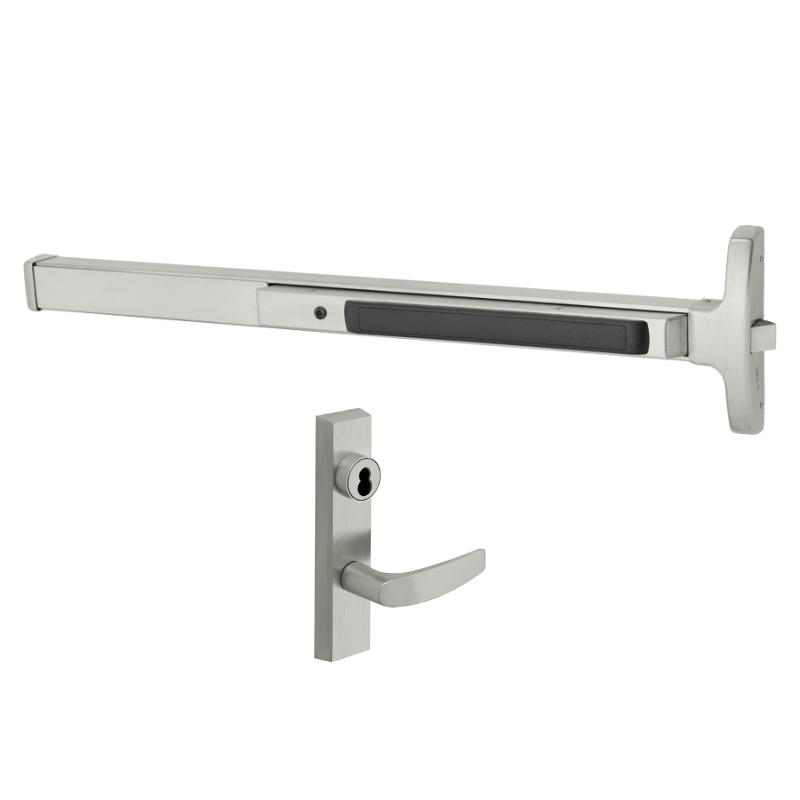

Sargent60-8513-F-ETB-US32D
Sargent 8513-F-ETB Narrow Stile Rim Exit Device, Classroom Function Lever, 33"-36" Dr Width

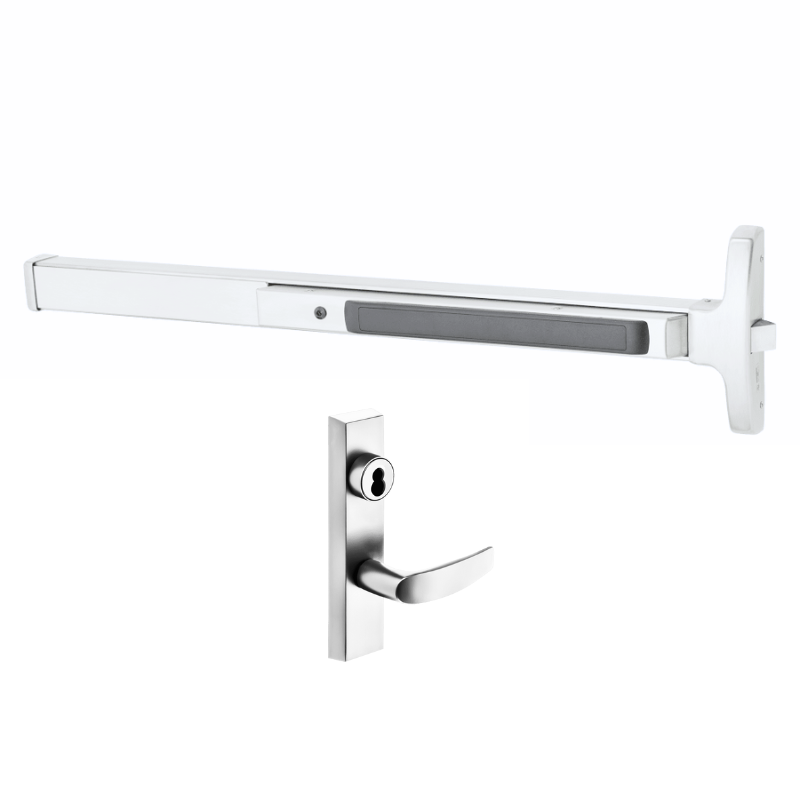

Sargent60-8513-F-ETB-US32
Sargent60-8513-F-ETB-WSP
Sargent70-8513-F-ETB-BSP
Sargent70-8513-F-ETB-US3
Sargent70-8513-F-ETB-US4

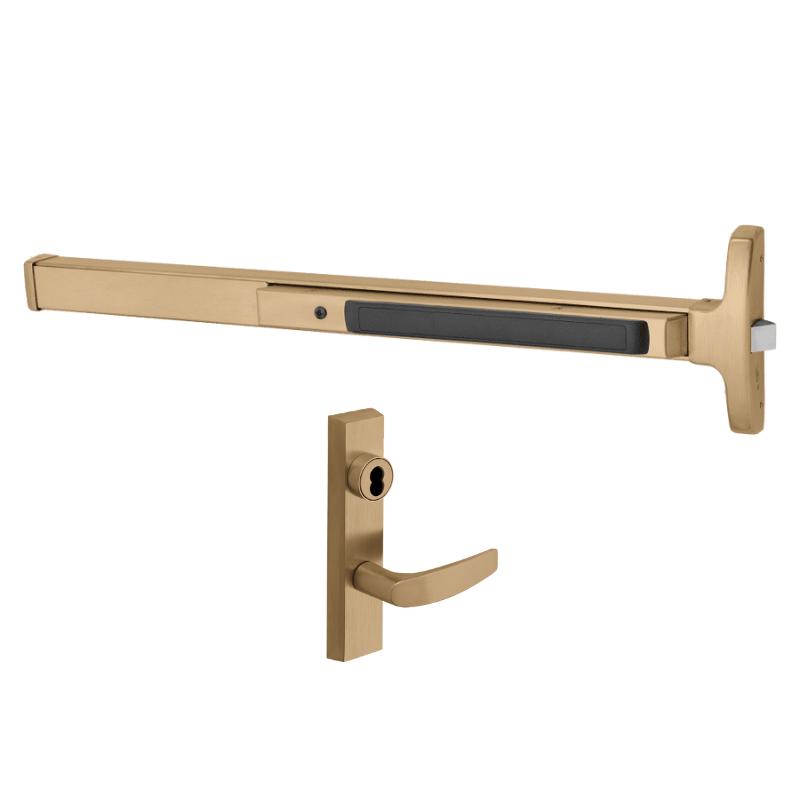

Sargent70-8513-F-ETB-US10
Sargent70-8513-F-ETB-US10B
Sargent70-8513-F-ETB-US32
Sargent70-8513-F-ETB-US32D
Sargent70-8513-F-ETB-WSP
Sargent8513-F-ETB-BSP
Sargent8513-F-ETB-US3
Sargent8513-F-ETB-US4
Sargent8513-F-ETB-US10

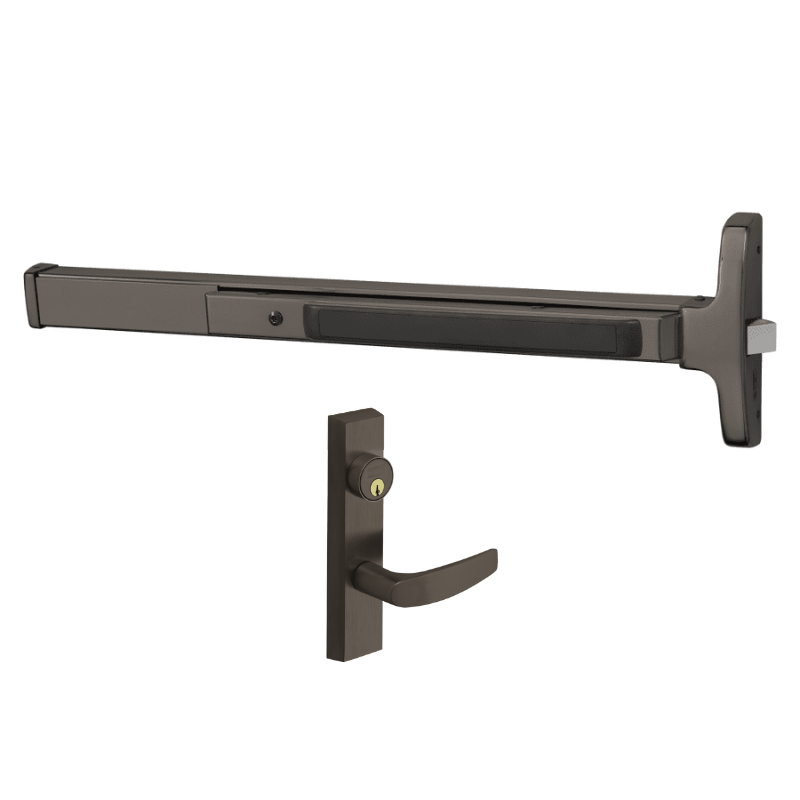

Sargent8513-F-ETB-US10B

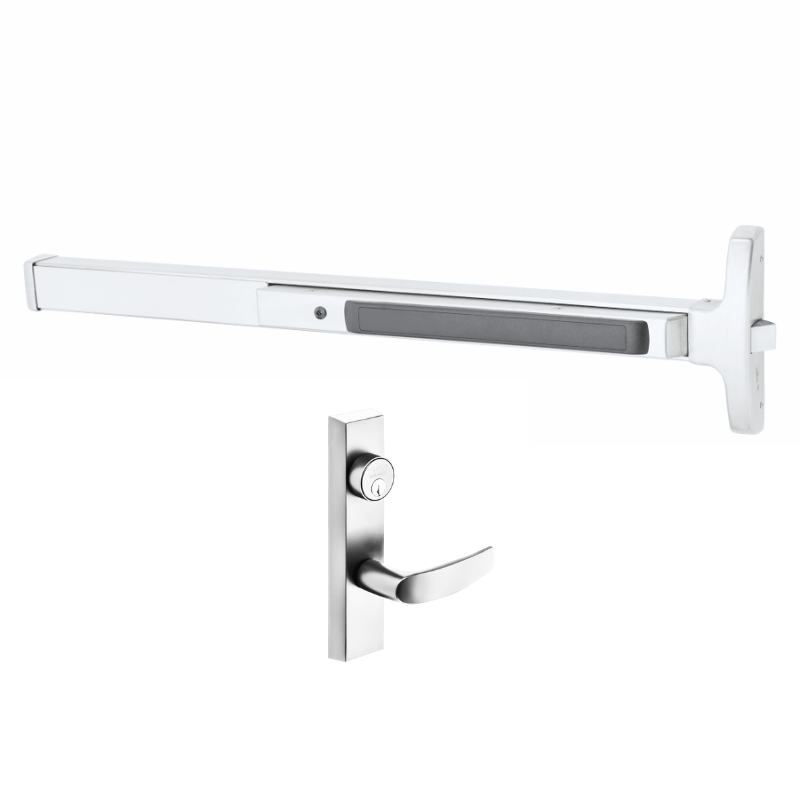

Sargent8513-F-ETB-US32

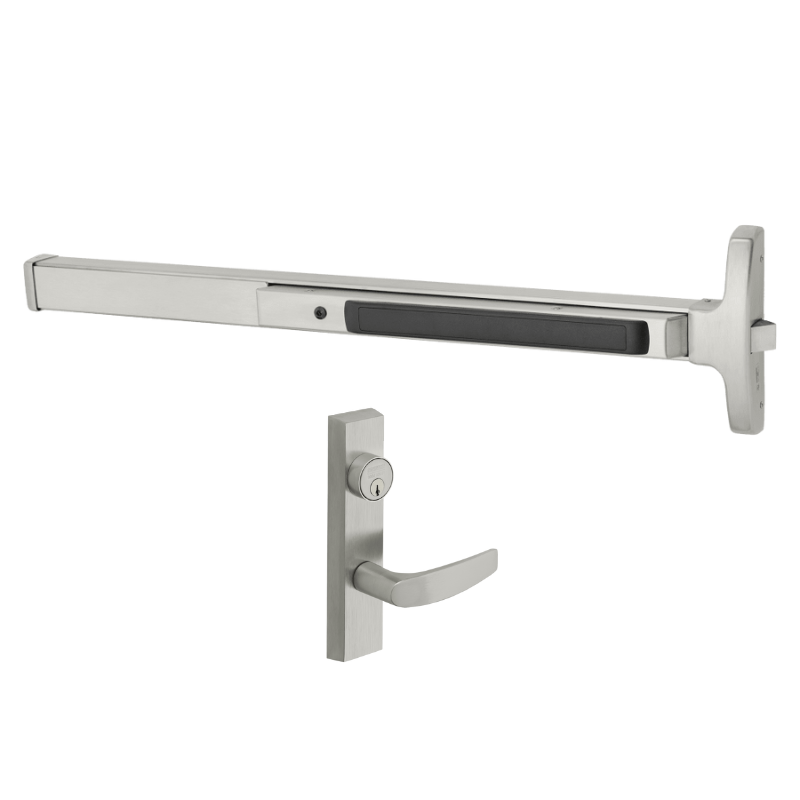

Sargent8513-F-ETB-US32D
Sargent8513-F-ETB-US32D
Sargent60-8513-F-ETB-BSP

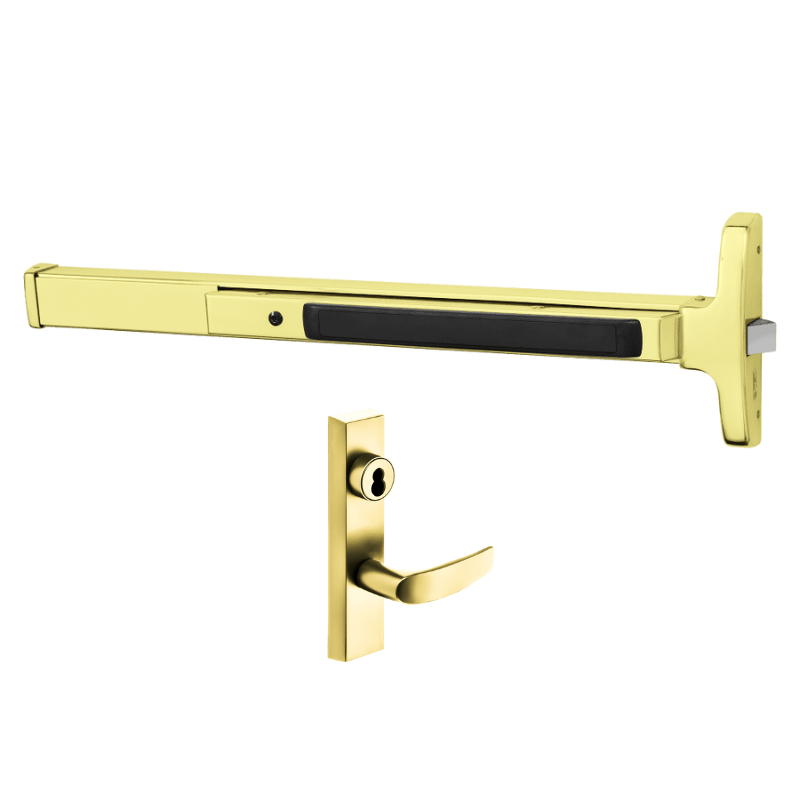

Sargent60-8513-F-ETB-US3

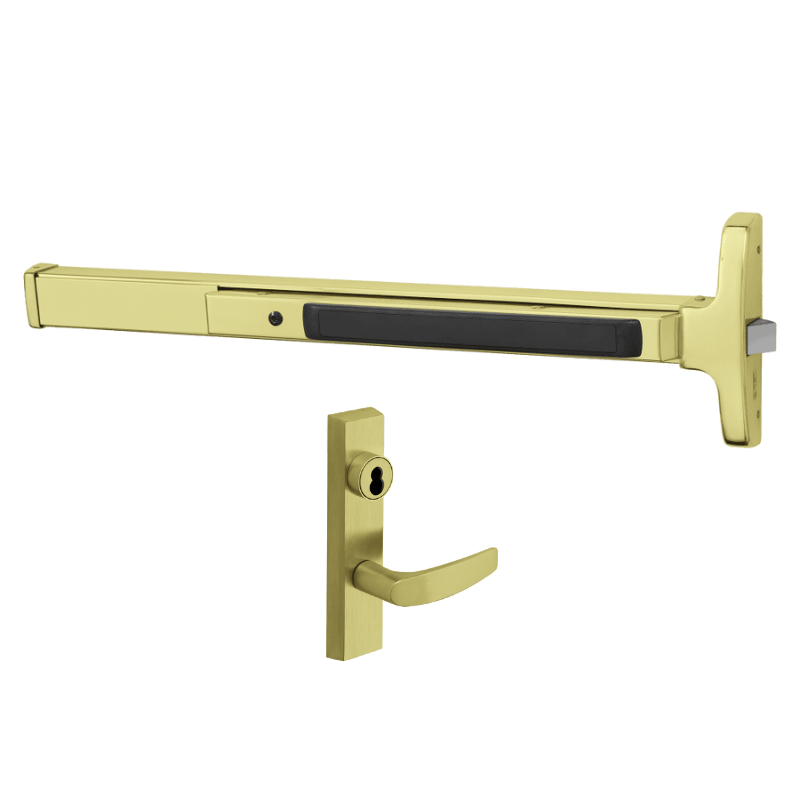

Sargent60-8513-F-ETB-US4
Sargent60-8513-F-ETB-US10
Sargent60-8513-F-ETB-US10B
All SARGENT Products

Sargent 8513-F-ETB Narrow Stile Rim Exit Device, Classroom Function Lever, 33"-36" Dr Width

  • SKU: 8513FETBUS32DLHR
$1,884.11/ea
Available (2 Weeks)
2 Weeks Lead Time
Finish: US32D-630 Satin Stainless Steel
Core Option: KD LA Keyway Keyed Different [2] Keys
Handing: LHR - Left Hand Reverse
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8513-F-ETB Narrow Stile Rim E...
Quantity
–
+
From $1,884.11
Sargent M56A-F Electric Latch Retract...
Quantity
–
+
$599.17
Sargent 351-UO-TB Powerglide Surface ...
Quantity
–
+
From $372.33
Total

Sargent 8513-F-ETB Narrow Stile Rim Exit Device, B Lever, Key Locks or Unlocks Lever, For 33-36 In Door, Hex Key Dogging, Grade 1

The Sargent 8513-F-ETB Narrow Stile Rim Exit Device features a B lever with a key-operated locking mechanism that secures or releases the lever. Designed for doors measuring 33 to 36 inches wide, it includes hex key dogging and meets Grade 1 standards for superior durability and performance.

8500 Series Narrow Rim Exit Devices

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.
  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.  1-3/4" (44mm) minimum stile
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Narrow Stile Pushpad
Device Type Rim
Mechanical Function Lever Classroom
Device Length 36"
Includes Trim Yes, ETB
Minimum Stile Size 2"
Door Material Aluminum
Door Width 33" - 36"
Door Thickness 1-3/4" to 2-1/4"
Fire Rated No
Product Type Rim Exit Devices
