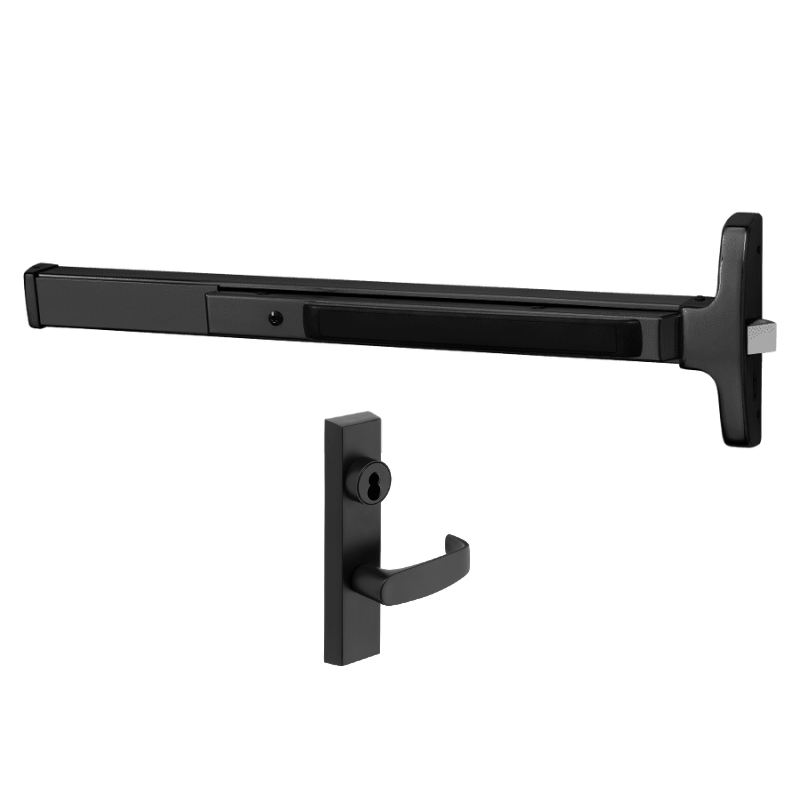

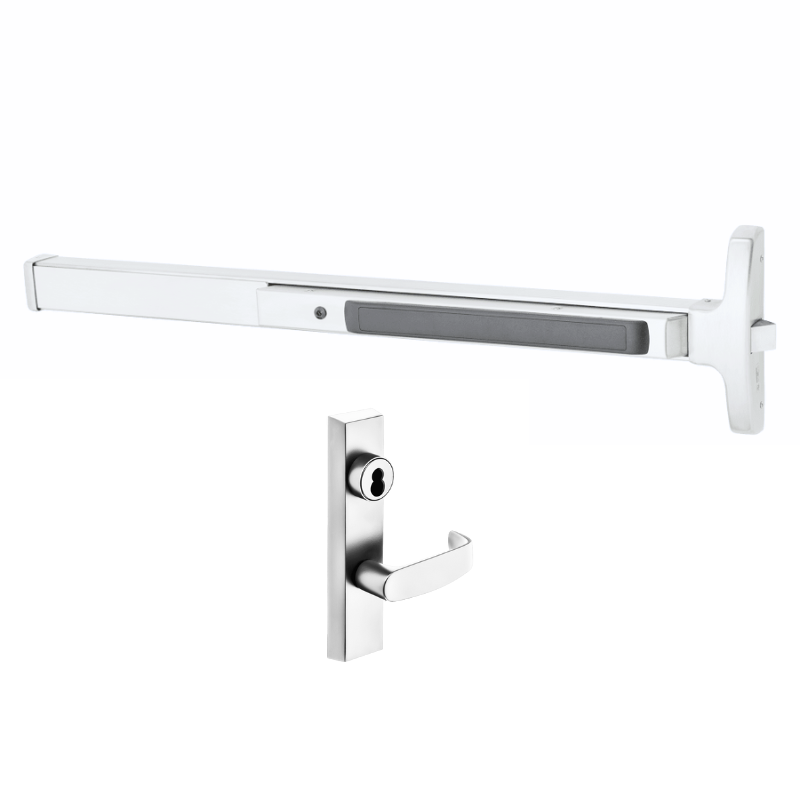

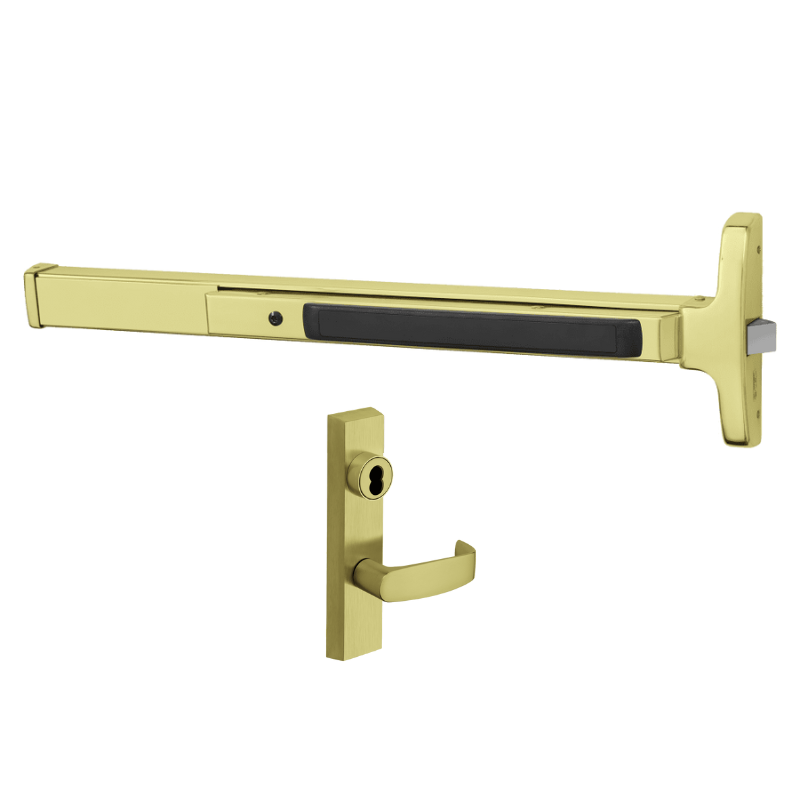

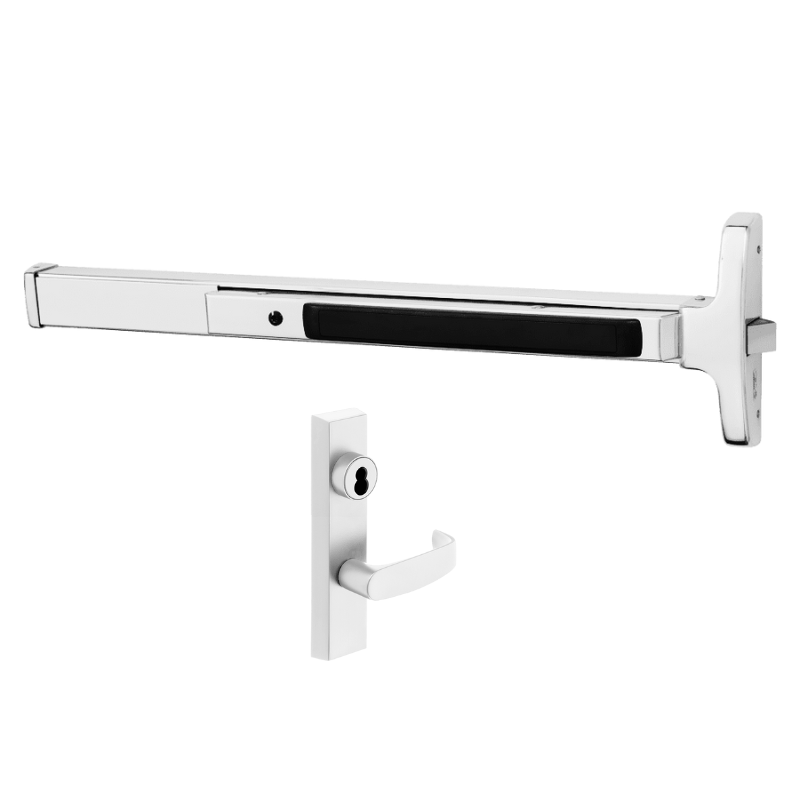

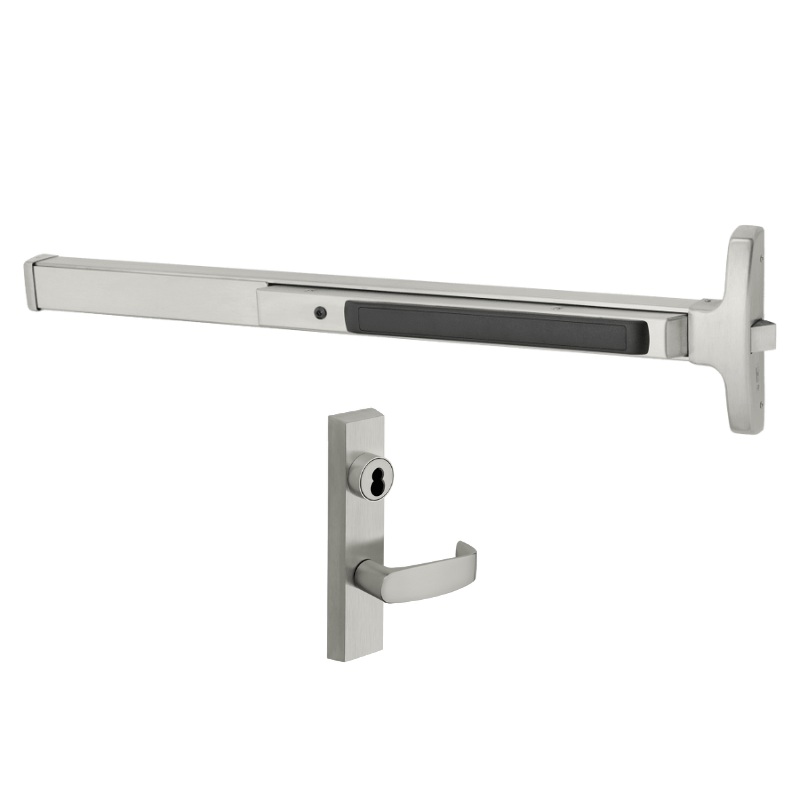

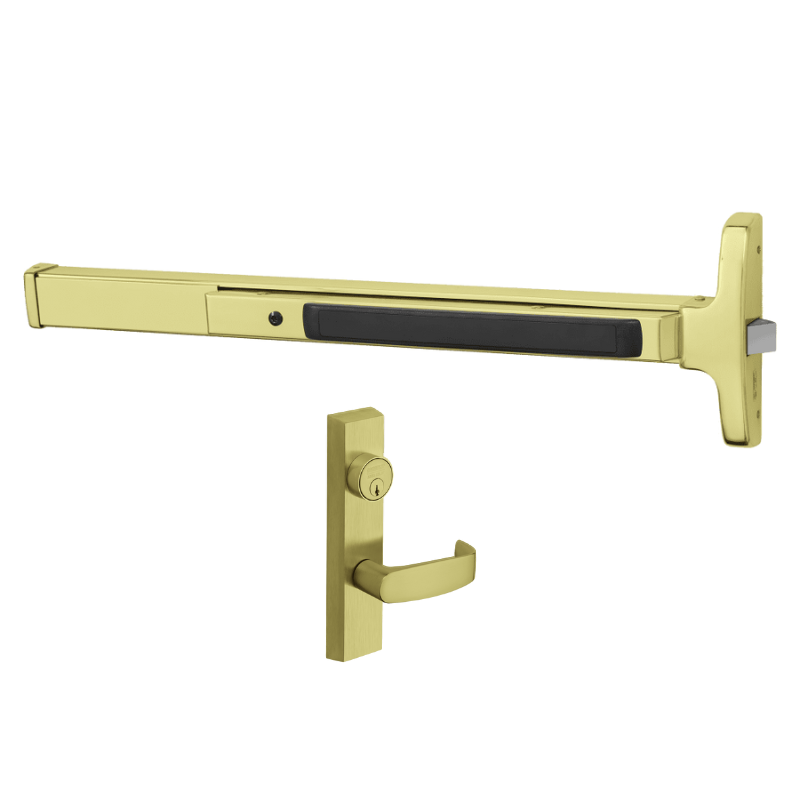

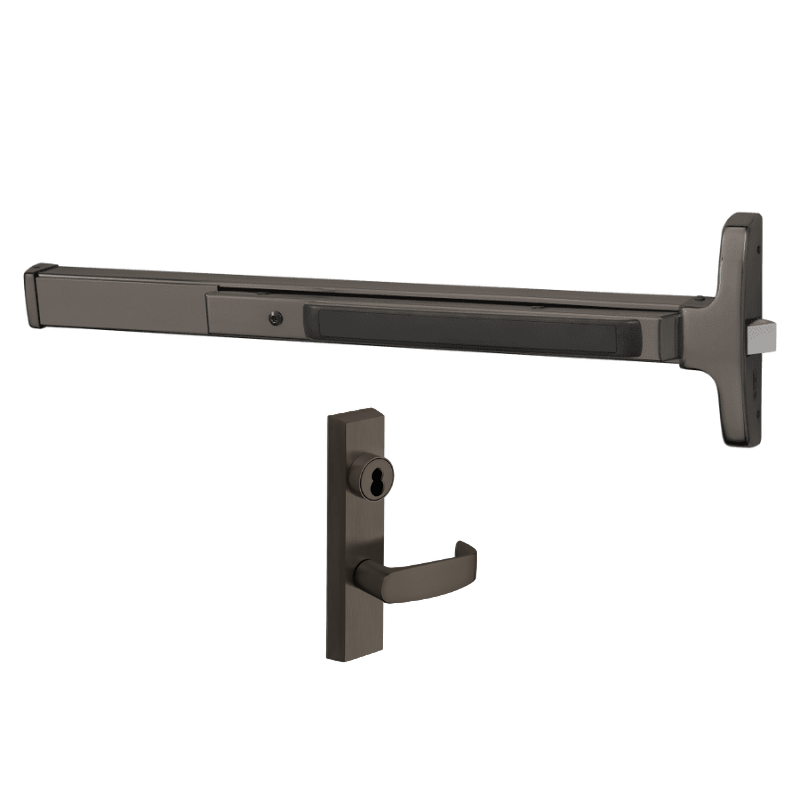

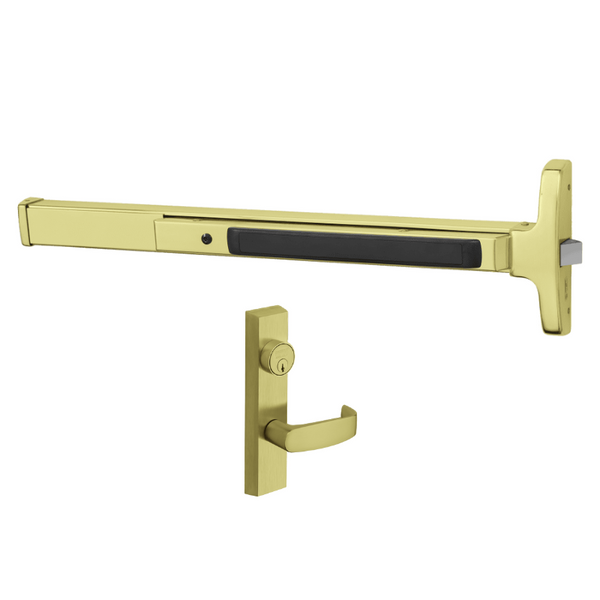

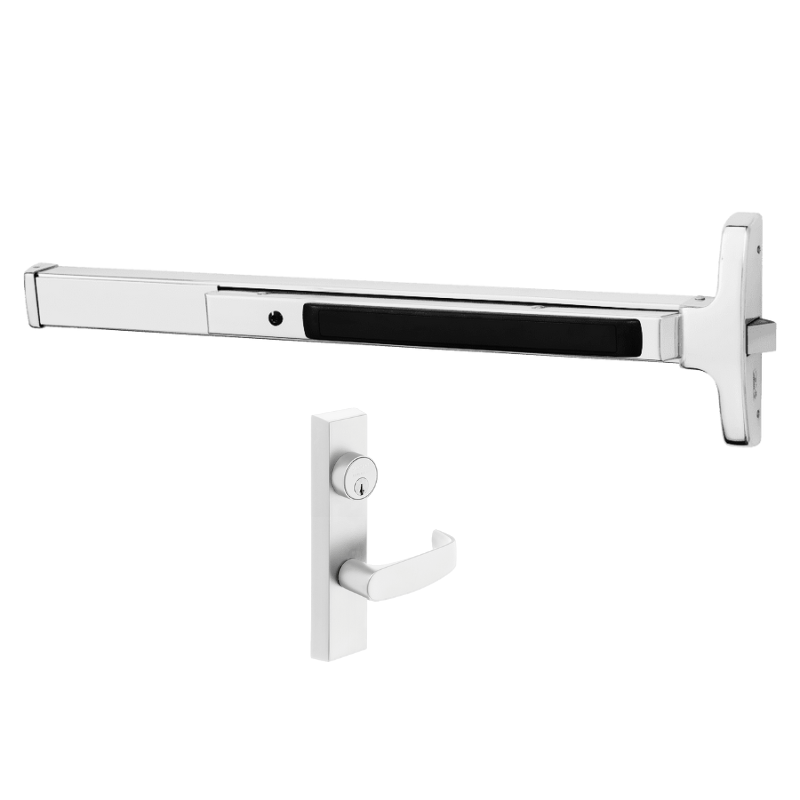

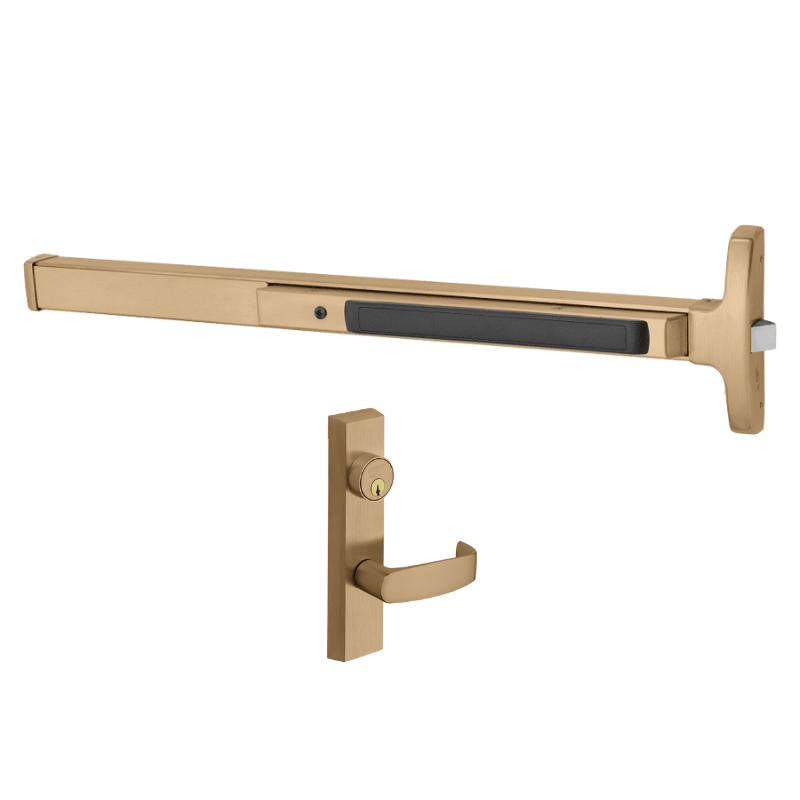

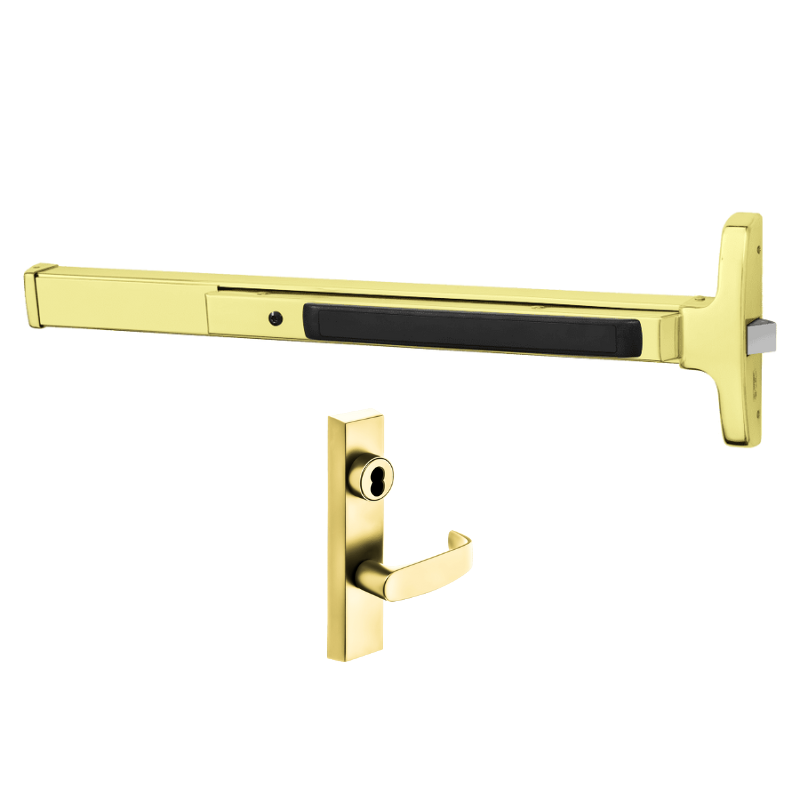

Sargent 8513-J-ETL Narrow Stile Rim Exit Device, Classroom Function Lever, 37"-42" Dr Width

SKU: 8513JETLUS32DLHR

Sargent 8513-J-ETL Narrow Stile Rim Exit Device, Classroom Function Lever, 37"-42" Dr Width

All SARGENT Products

Buy Complete Door Hardware Set

Sargent 8513-J-ETL Narrow Stile Rim E...

Quantity

–

+

From $1,856.54

Sargent 351-UO-TB-EN Door Closer Powerglide Universal Arm Select Finish

Sargent 351-UO-TB Powerglide Surface ...

Quantity

–

+

From $372.33

Total

Description
Product Specs
Technical Specs
Document Center
Handing Chart

Description

Sargent 8513-J-ETL Narrow Stile Rim Exit Device, L Lever, Key Locks or Unlocks Lever, For 37-42 In Door, Hex Key Dogging, Grade 1

The Sargent 8513-J-ETL is a Grade 1 narrow stile rim exit device featuring an L lever. Designed for doors 37 to 42 inches wide, it offers key-operated locking and unlocking of the lever, along with hex key dogging for secure and convenient operation.

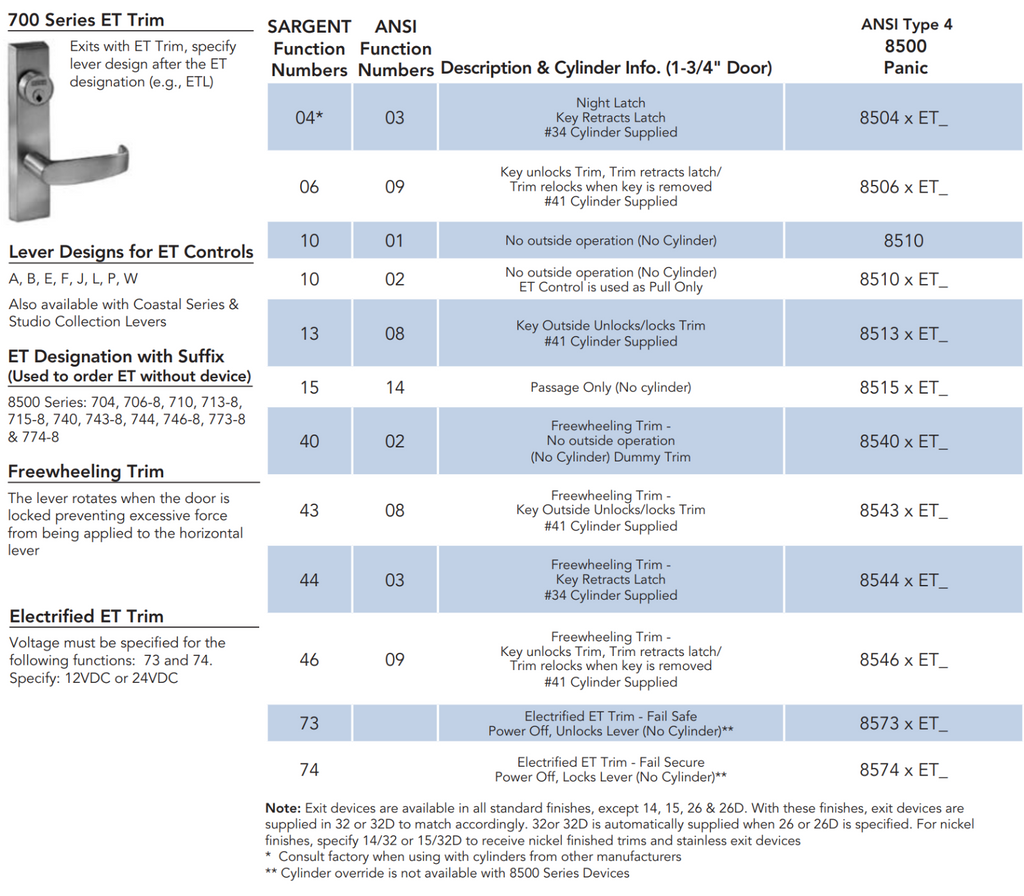

8500 Series Narrow Rim Exit Devices

The 8500 Narrow Design Rim Exit Device is designed for narrow stile applications and features a rim bolt for quiet operation and security.

The 8500 Series has a quiet operation with solid security. The single point rim latching device works nicely to help complete Sargent's full line of exit devices that provide the best combination of durability and innovation.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix. 1-3/4" (44mm) minimum stile
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Technical Specs

Physical Appearance	Narrow Stile Pushpad
Device Type	Rim
Mechanical Function	Lever Classroom
Device Length	42"
Includes Trim	Yes, ETL
Minimum Stile Size	2"
Door Material	Aluminum
Door Width	37" - 42"
Door Thickness	1-3/4" to 2-1/4"
Fire Rated	No
Product Type	Rim Exit Devices

Document Center

Product Cut Sheet

Handing Chart

Panic Handing Chart
