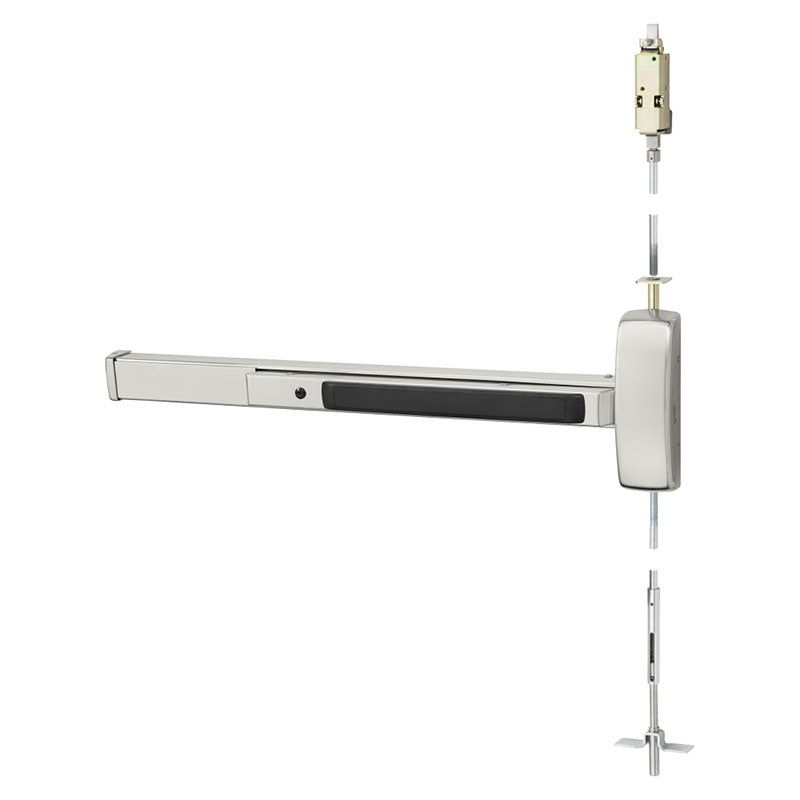

Sargent AD8610F-36x96-US32D Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-US10BE Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-US10B Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-BSP Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-WSP Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-US32D Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-US10BE Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-US10B Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-BSP Concealed Vertical Rod Exit Device
Sargent AD8610F-36x96-WSP Concealed Vertical Rod Exit Device
All SARGENT Products

Sargent 8610 Concealed Vertical Rod Exit Device, Exit Only, 33-36" Device, 96" Dr Height

  • SKU: AD8610F3696US32DRHR
$1,788.68/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Door Material: AD-Aluminum
Handing: RHR - Right Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Sargent 8610 Concealed Vertical Rod E...
Quantity
–
+
From $1,788.68
Sargent 710-4-ETL Exit Device, Dummy ...
Quantity
–
+
$533.03
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $111.80
Total

Sargent 8610F-96 Concealed Vertical Rod Exit Device, No Trim Exit Only, Multi-Function, 33-36" Device, 96" Dr Height, Hex Key Dogging

The Sargent AD8610F-96 Concealed Vertical Rod Exit Device, with no trim and a multi-function design, boasts a 96" door height and can easily be operated with a hex key for dogging.

Features

  • AD8600 Series stands for Aluminum Door
  • MD8600 Series stands for Metal Door
  • WD8600 Series stands for wood Door
  • Concealed rods for security and aesthetics
  • Single and double door applications
  • Specify NB- for less bottom rod
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL305 (Panic) listed only
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Mutli-Function
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 4 1/2"
Door Height 84" to 96"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices


Product Cut Sheet
