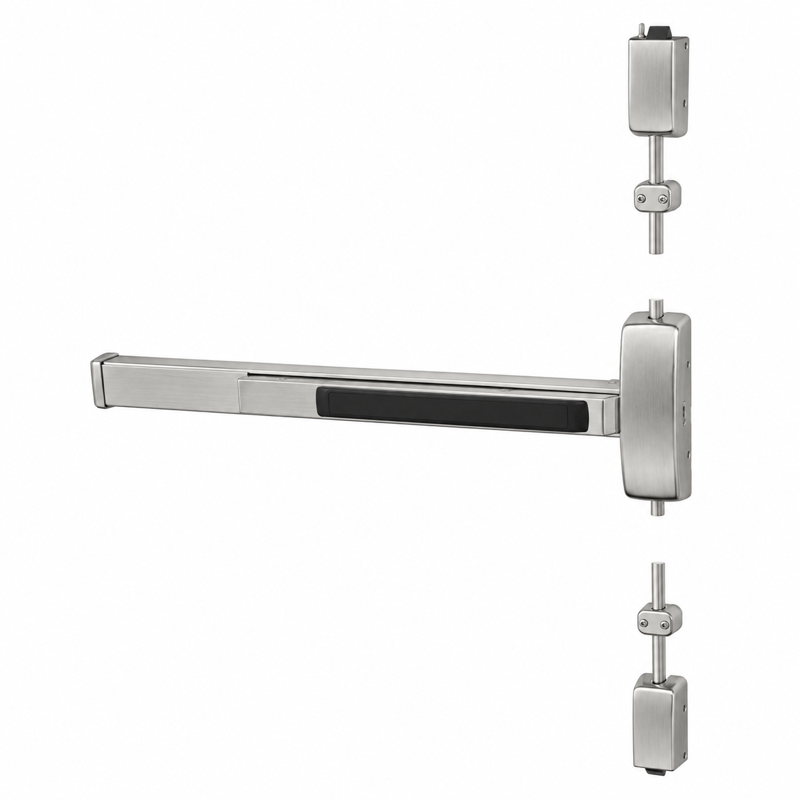

Sargent 8715F-84 Surface Vertical Rod Exit Device, Exit Only, 36" Device, 84" Door Height, Less Trim, Hex Key Dogging

The Sargent 8715F-84 is a Grade 1 surface vertical rod exit device built for demanding commercial openings. Configured as exit only with no outside trim, it fits a 36" door width and accommodates door heights up to 84". The surface-mounted vertical rods latch at both the top and bottom of the door, delivering reliable two-point security without the need to mortise rods into the door edge. Hex key dogging allows the latches to be held retracted for push/pull operation during high-traffic periods, and the device is well suited for aluminum, hollow metal, and wood door applications where durability and dependable egress are essential.

Features

  • Surface-mounted vertical rod design latches at both top and bottom for added security.
  • Exit-only function with no outside trim for controlled single-direction egress.
  • Sized for a 36" wide device on doors up to 84" in height.
  • Hex key dogging holds the latches retracted for free push/pull operation.
  • Grade 1 construction meets the highest ANSI/BHMA durability standards.
  • Field-adjustable rods accommodate standard door heights.

Functional Details

The 8715F operates as an exit-only device, meaning the push bar retracts both the top and bottom latches to allow egress, while the absence of outside trim prevents re-entry from the exterior side. Hex key dogging lets authorized staff mechanically hold the latches retracted for continuous pull/push use.

  • Exit only (no outside trim).
  • Surface vertical rod.
  • Hex key dogging standard.

Included Components

The device ships complete with the push rail assembly, top and bottom surface-mounted vertical rods, top and bottom latches, and the required mounting hardware for installation on the specified door size.

Manufacturer Sargent
SKU 8715F-84
Series 8700 Series
Grade ANSI/BHMA Grade 1
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Dogging Type Hex Key Dogging
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Manufacturer's Limited Warranty
Device Width 36"
Maximum Door Height 84"
Latch Points Two (top and bottom)
Mounting Surface mounted vertical rods
Door Type Aluminum, hollow metal, wood
Door Thickness 1-3/4" standard
Latch Bolt Throw (Bottom) 1/2"
Projection (Device) Approx. 3-5/16"
Dogging Hex key, latch hold-retract
Handing Non-handed
Fire Rating Non-fire (standard panic exit)
