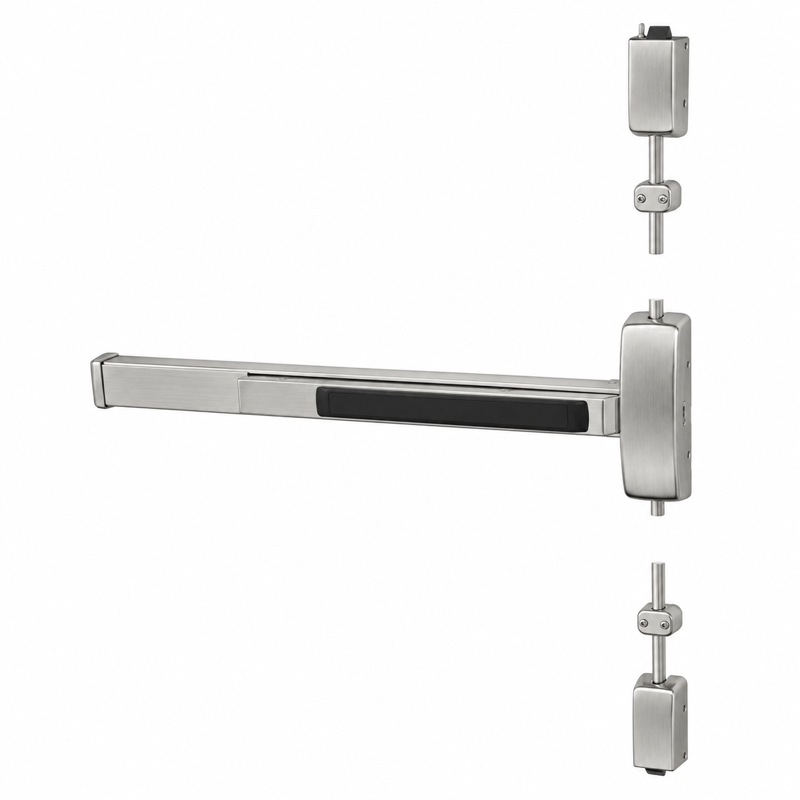

Sargent 8715G-84 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 84" Door Height, Less Trim, Hex Key Dogging

The Sargent 8715G-84 is a heavy-duty surface vertical rod exit device engineered for demanding commercial openings. Built for 84" door heights and sized for 48" wide doors, this exit-only model mounts to the surface of the door with top and bottom vertical rods for secure two-point latching. The G-type housing offers a clean, durable profile, and the hex key dogging feature allows the latch to be held retracted for push-pull operation during high-traffic periods. Supplied less trim, it functions as an exit-only device, making it ideal for stairwells, service corridors, and secondary egress doors where reliable panic hardware is required.

Features

  • Surface-mounted vertical rod design provides two-point latching at the top and bottom of the door.
  • Exit-only configuration operates from the inside with no outside trim.
  • Hex key dogging lets the push bar be held in the retracted position for free passage.
  • Sized to fit 48" wide doors with an 84" door height.
  • Grade 1 construction built to withstand high-use commercial environments.
  • UL listed for panic hardware applications.

Functional Details

As an exit-only device, the 8715G operates solely from the egress side. Depressing the push bar retracts both the top and bottom latch bolts simultaneously to release the door. The hex key dogging mechanism allows authorized personnel to retain the bar in the depressed position, keeping the latches held open for continuous push-pull traffic.

  • Exit only (no outside operation).
  • Hex key dogging holds the pushpad depressed for continuous latch retraction.
Manufacturer Sargent
SKU 8715G-84
Product Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Dogging Hex Key Dogging
Grade ANSI/BHMA Grade 1
Origin USA
Unit of Measure Each
UL Listing Type UL Listed Panic Hardware
ANSI Number A156.3
Limited Warranty Yes
Series 8700 Series
Device Type Surface Vertical Rod
Device Size 48" (fits doors up to 48" wide)
Door Height 84"
Latching Points Two (top and bottom)
Top Latch Bolt Throw 5/8"
Bottom Latch Bolt Throw 5/8"
Door Thickness 1-3/4" standard
Mounting Surface mounted
Dogging Type Hex key
Handing Non-handed
