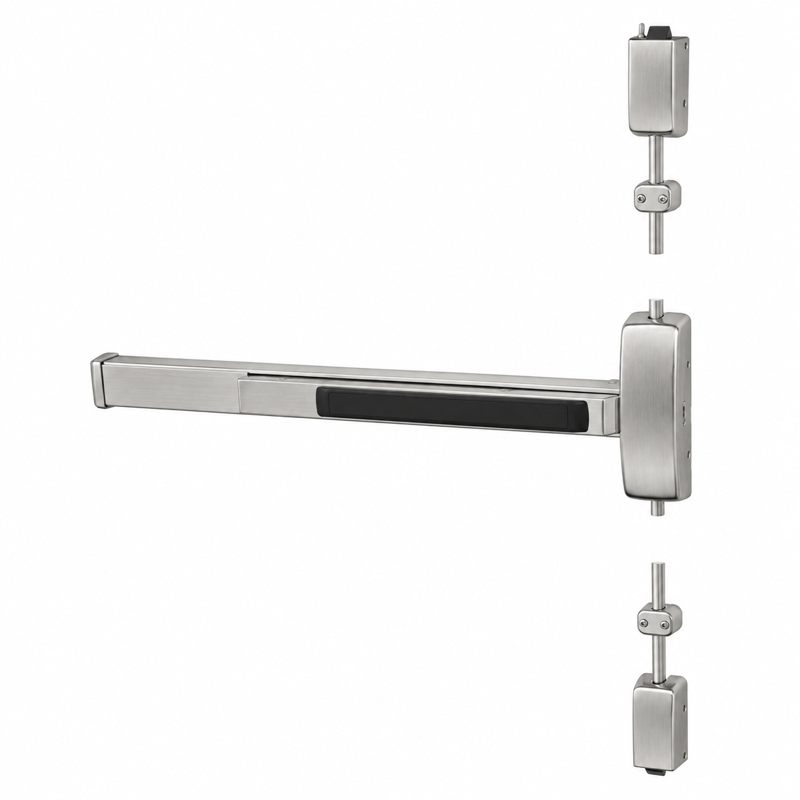

Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging

  • SKU: 8715G96US32DLHR
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US3-605 Bright Brass, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US3-605 Bright Brass, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US4-606 Satin Brass, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US4-606 Satin Brass, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US9-611 Polished Brass, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US9-611 Polished Brass, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10-612 Satin Bronze, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10-612 Satin Bronze, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10B-613 Oil Rubbed Bronze, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10B-613 Oil Rubbed Bronze, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10BE-613E Dark Oxidized Bronze, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10BE-613E Dark Oxidized Bronze, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10BL-614 Oxidized Satin Bronze, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US10BL-614 Oxidized Satin Bronze, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US20D-624 Statuary Dark Bronze, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US20D-624 Statuary Dark Bronze, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US32-629 Polished Stainless Steel, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — US32-629 Polished Stainless Steel, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — BSP Black Suede Powder Coat, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — BSP Black Suede Powder Coat, RHR Right Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — WSP White Powder Coat, LHR Left Hand Reverse
Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging — WSP White Powder Coat, RHR Right Hand Reverse
Zoomed view
All SARGENT Products

Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging

  • SKU: 8715G96US32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,734.79/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8715G-96 Surface Vertical Rod...
Quantity
–
+
$1,734.79
Sargent ET Trims For 80 Series Exit D...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 8715G-96 Surface Vertical Rod Exit Device, Exit Only, 48" Device, 96" Door Height, Less Trim, Hex Key Dogging

The Sargent 8715G-96 is a surface vertical rod exit device built for heavy commercial use on 96-inch tall doors. Configured for exit-only operation, it comes less trim for applications where no outside control is needed, and the 48-inch device width suits full-size openings. Part of Sargent's reliable 8700 Series, this device features hex key dogging to hold the latch retracted for push/pull traffic during busy hours. With its surface-mounted top and bottom rods, it delivers dependable two-point latching while remaining straightforward to install and service on aluminum, hollow metal, or wood doors.

Features

  • Surface vertical rod design provides secure top and bottom latching for added door control.
  • Exit-only function allows free egress while keeping the opening secured from outside.
  • Less trim configuration for openings that do not require exterior operating hardware.
  • Hex key dogging holds the pushbar depressed for continuous push/pull operation.
  • Sized for a 96-inch door height with a 48-inch device length.
  • Grade 1 construction engineered for high-traffic commercial environments.

Functional Details

The 8715 is an exit-only vertical rod device, meaning it provides free egress from the inside with no outside trim or operation. Depressing the pushpad retracts both the top and bottom latch bolts simultaneously, allowing the door to open.

  • 8715 — Exit Only (No Outside Operation)

Included Components

This device ships as a complete surface vertical rod assembly including the pushbar mechanism, top and bottom rods, and latch bolts. Hex key dogging hardware is integrated for tool-based latch hold-open. No exterior trim is included with this less-trim configuration.

Manufacturer Sargent
SKU 8715G-96
Series 8700 Series
Device Type Surface Vertical Rod Exit Device
Function Exit Only, Less Trim
Grade ANSI/BHMA Grade 1
Origin Made in USA
Unit of Measure Each
UL Listing Type UL Listed for Panic Exit Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Device Length 48 in.
Door Height 96 in.
Latching Points Top and Bottom (Two-Point)
Dogging Type Hex Key Dogging
Mounting Surface Mounted
Rod Type Surface Vertical Rod
Top Latch Bolt Projection 3/4 in.
Bottom Latch Bolt Projection 3/4 in.
Door Type Compatibility Hollow Metal, Aluminum, Wood
Handing Non-Handed
Product Cut Sheet
