All SARGENT Products

Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging

  • SKU: 8715JUS32DLHR
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US32D-630 Satin Stainless Steel, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US3-605 Bright Brass, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US3-605 Bright Brass, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US4-606 Satin Brass, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US4-606 Satin Brass, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US9-611 Polished Brass, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US9-611 Polished Brass, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10-612 Satin Bronze, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10-612 Satin Bronze, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10B-613 Oil Rubbed Bronze, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10B-613 Oil Rubbed Bronze, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10BE-613E Dark Oxidized Bronze, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10BE-613E Dark Oxidized Bronze, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10BL-614 Oxidized Satin Bronze, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US10BL-614 Oxidized Satin Bronze, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US20D-624 Statuary Dark Bronze, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US20D-624 Statuary Dark Bronze, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US32-629 Polished Stainless Steel, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — US32-629 Polished Stainless Steel, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — BSP Black Suede Powder Coat, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — BSP Black Suede Powder Coat, RHR Right Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — WSP White Powder Coat, LHR Left Hand Reverse
Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging — WSP White Powder Coat, RHR Right Hand Reverse
Zoomed view
All SARGENT Products

Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging

  • SKU: 8715JUS32DLHR
  • ✓
    Ships in (3‑4 Weeks)
    3-4 Weeks Lead Time
Your Price
$1,734.79/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8715J-84 Surface Vertical Rod...
Quantity
–
+
$1,734.79
Sargent ET Trims For 80 Series Exit D...
Quantity
–
+
From $446.60
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 8715J-84 Surface Vertical Rod Exit Device, Exit Only, 42" Device, 84" Door Height, Less Trim, Hex Key Dogging

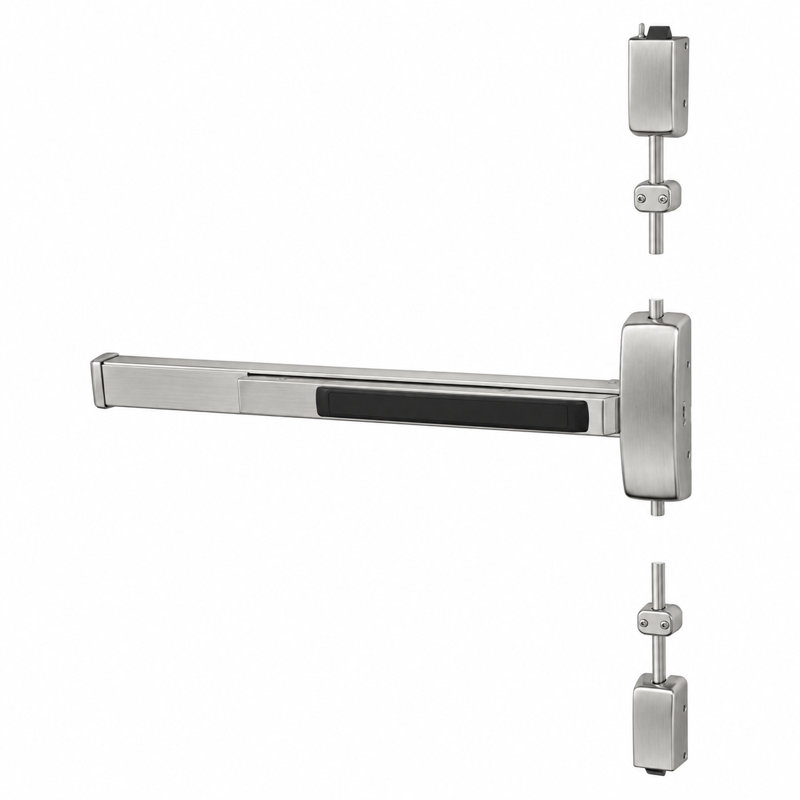

The Sargent 8715J-84 is a surface vertical rod exit device built for reliable, high-traffic commercial applications. Designed for exit-only service, it provides a secure means of egress without requiring outside trim, making it ideal for doors that only need free exit from the inside. This model fits 84" door heights and comes in a 42" device size to accommodate wider openings. The included hex key dogging lets staff hold the pushbar retracted for push/pull operation during busy hours. As part of Sargent's durable 8700 Series, it delivers dependable Grade 1 performance for institutional, educational, and commercial settings where safety and longevity matter.

Features

  • Surface-mounted vertical rod design for secure top and bottom latching.
  • Exit-only configuration offers free egress without outside trim.
  • Sized at 42" to fit wider door openings up to the listed maximum.
  • Built for 84" door heights in standard commercial installations.
  • Hex key dogging allows the pushbar to be held retracted for latch hold-back.
  • Grade 1 construction from the heavy-duty 8700 Series for long service life.

Functional Details

As an exit-only device, the 8715J functions strictly for egress. Depressing the pushbar retracts the top and bottom latch bolts simultaneously, allowing the door to open freely from the secure side. With no outside trim, re-entry is not provided. The hex key dogging feature lets authorized personnel mechanically hold the latches retracted so the door can be used in a push/pull mode during peak traffic.

  • Exit only, no outside trim.
  • Hex key dogging to hold pushbar depressed and latches retracted.
Manufacturer Sargent
SKU 8715J-84
Series 8700 Series
Grade ANSI/BHMA Grade 1
Device Type Surface Vertical Rod Exit Device
Function Exit Only (Less Trim)
Dogging Type Hex Key Dogging
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed for Panic Hardware
ANSI Number ANSI/BHMA A156.3
Limited Warranty Manufacturer's Limited Warranty
Device Size 42"
Maximum Door Width 48"
Door Height 84"
Mounting Surface Mounted
Latching Points Top and Bottom Vertical Rods
Top Latch Bolt Throw 5/8"
Projection (Device) 3-1/8"
Minimum Stile Width Per 8700 Series specifications
Door Type Hollow Metal, Wood, or Aluminum
Handing Non-Handed
Product Cut Sheet
