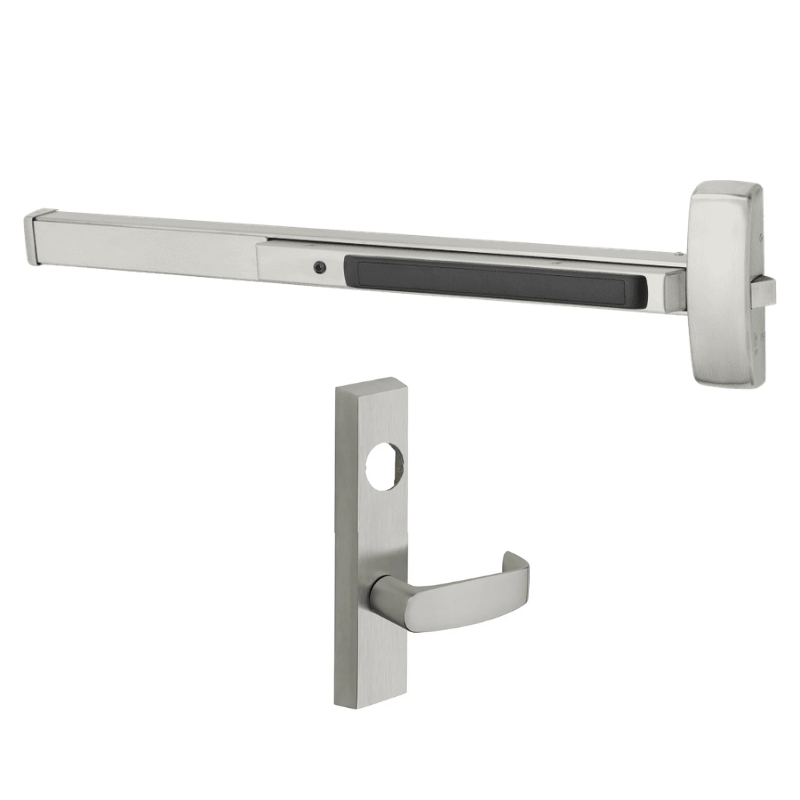

Sargent 8804-G-ETL-LC Rim Exit Device Lever Trim, Night Latch Function, 43"-48" Dr Width, ETL Trim, Less Cylinder, Grade 1

The Sargent 8804-G-ETL-LC is a Grade 1 rim exit device engineered for high-traffic commercial openings that demand dependable, code-compliant egress. Built for doors between 43" and 48" wide, this unit pairs the durable 8800 Series rim mechanism with ETL lever trim and operates in the night latch (04) function, allowing free exit at all times while keeping the outside lever locked until unlatched by a key. Supplied less cylinder, it lets you specify your preferred keying to match an existing system. With its heavy-duty construction and clean architectural styling, the 8804-G-ETL-LC delivers reliable security and everyday performance for schools, offices, and institutional facilities.

Features

• Grade 1 rim exit device rated for demanding commercial and institutional use.
• Night latch function provides free egress while the outside lever remains locked until unlocked by key.
• Sized for door widths from 43" to 48" for wider single-door openings.
• ETL lever trim offers a comfortable, ADA-friendly grip and modern appearance.
• Supplied less cylinder so you can integrate the device into your own keying system.
• Rim-style mounting for straightforward installation on standard doors.

Functional Details

In the night latch (function 04) configuration, the device allows unrestricted exit through the push bar at all times. The outside lever is fixed and rigid; a key is required to retract the latch and gain entry from the exterior, providing controlled access without compromising egress.

• Latchbolt by lever, key outside unlocks/retracts latchbolt.
• Free egress at all times by depressing push pad.

Arm Type Details

This model uses ETL lever trim, a keyed lever pull mounted on the exterior of the opening. The lever provides an intuitive entry point while the internal exit mechanism controls latch operation, ensuring secure and consistent performance.
