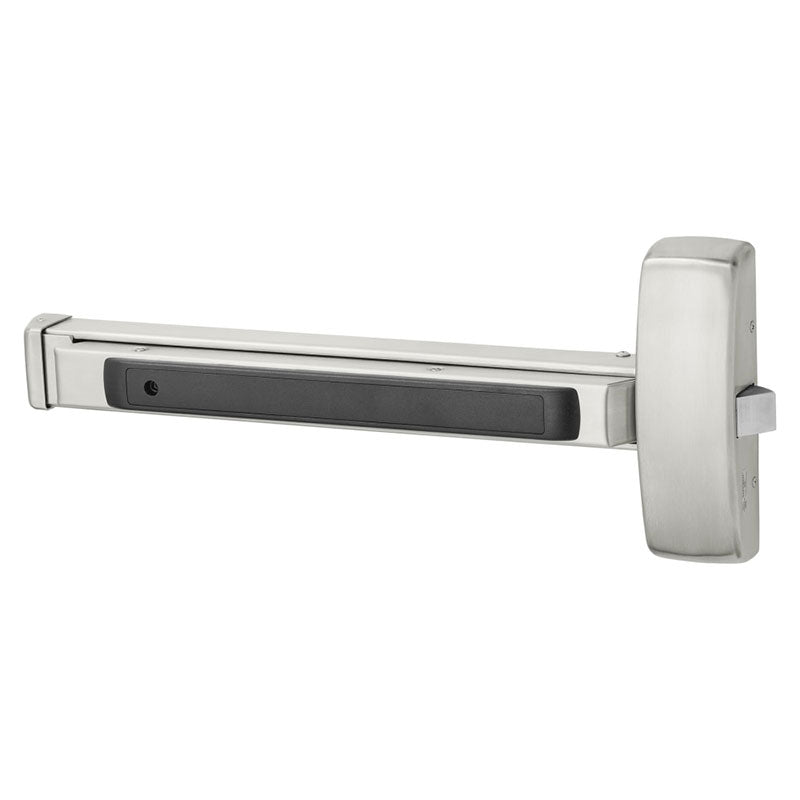

The Sargent 8810-E is a Rim Exit Device, that is Exit Only, is Field Reversible, has a 24"-32" Bar, and is Grade 1.
The Sargent 8810 Exit Device is exit only with no outside trim. This exit device can be customized with the select finish, select handing, select bar length 24" or 32", and select fire-rated or non-rated.
The 8810 exit device, also known as a panic bar, is applied to the surface of the door, making installation simple. Trim is sold separately.
This Sargent panic device is perfect for wood or metal doors 1-3/4" thick with a 4-1/2" minimum stile. Its excellent design ensures quiet operation and solid security.
And it is ideal for use in all institutions, office spaces, and healthcare facilities. The single-point rim latching device is made for both single-door and double-door applications.
| Manufacturer | Sargent |
| SKU | 8810E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Exit Only |
| Device Length | 32" |
| Hand | Non-Handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | No |
| Trim Type | Less trim |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
