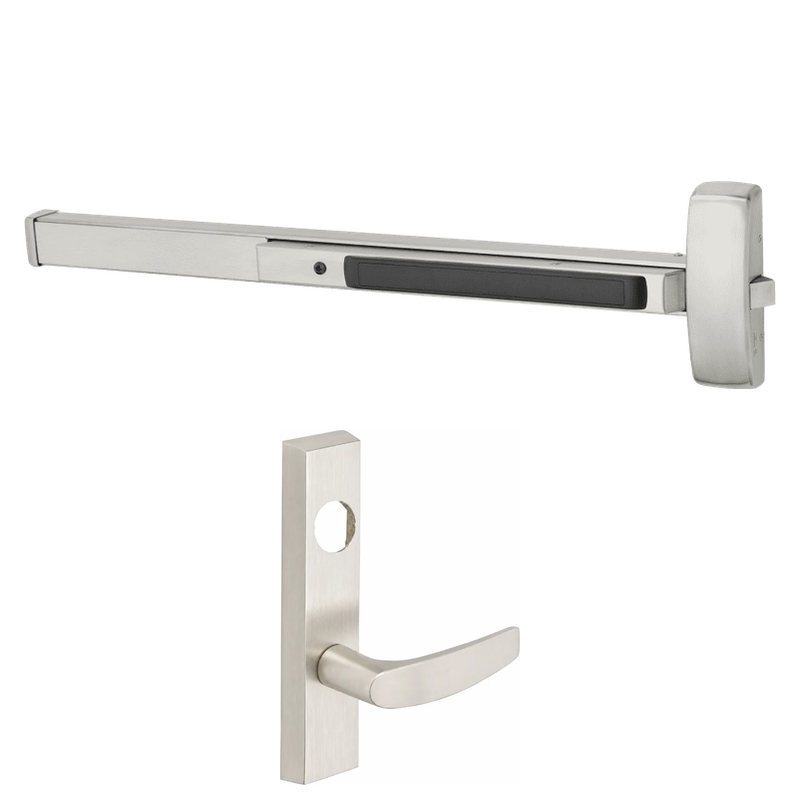

Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 8813FETBUS32DLHRLC
Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US10B-613 Oil Rubbed Bronze
Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US10BE-613E Dark Oxidized Bronze
Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 8813-F-ETB Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 8813FETBUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,639.27/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8813-F-ETB Rim Exit Device, C...
Quantity
–
+
From $1,639.27
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 8813-F-ETB Rim Exit Device, Classroom Function, ET Control, B Lever, 33-36 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-F-ETB is a Grade 1 rim exit device built for high-traffic commercial openings that demand reliable, code-compliant egress. Configured with classroom (ET) function and the B lever design, it pairs smooth exterior trim operation with secure life-safety performance. This model fits doors 33 to 36 inches wide and features hex key dogging, allowing the push bar to be held in a depressed position for push-pull operation during peak hours. Shipped less cylinder, it lets you specify the mortise cylinder that matches your facility's keying system. Durable construction and proven Sargent engineering make it a dependable choice for schools, offices, and institutional buildings.

Features

  • Grade 1 rim exit device rated for heavy-duty commercial applications.
  • Classroom (ET) function with B lever trim for controlled access from the exterior.
  • Designed to fit single doors ranging from 33 to 36 inches in width.
  • Hex key dogging holds the push bar down for latch retraction and push-pull use.
  • Supplied less cylinder so you can match existing keying hardware.
  • Free egress at all times by simply pushing the touch bar.

Functional Details

In the classroom (ET) configuration, the outside lever is controlled by a key. Turning the key retracts the latch for entry, while free egress is always available from the inside by depressing the push bar. Hex key dogging allows the latch to be held retracted for continuous push-pull operation when security is not required.

  • Classroom function: Key outside retracts latch. Latchbolt operated by lever unless outside lever is locked by key. Push bar always allows free egress.
Manufacturer Sargent
SKU 8813-F-ETB
Device Type Rim Exit Device
Function Classroom (ET Control)
Trim/Lever B Lever
Grade Grade 1
Dogging Type Hex Key Dogging
Cylinder Less Cylinder
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed for Panic Exit Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Door Width Range 33 in. to 36 in.
Device Series 8800 Series
Mounting Type Rim
Latchbolt Type Deadlocking latchbolt
Latchbolt Throw 3/4 in.
Minimum Stile Width Standard commercial stile
Dogging Hex key
Trim Function ET Classroom
Cylinder Required Mortise cylinder (not included)
Handing Non-handed
Door Type Single door
