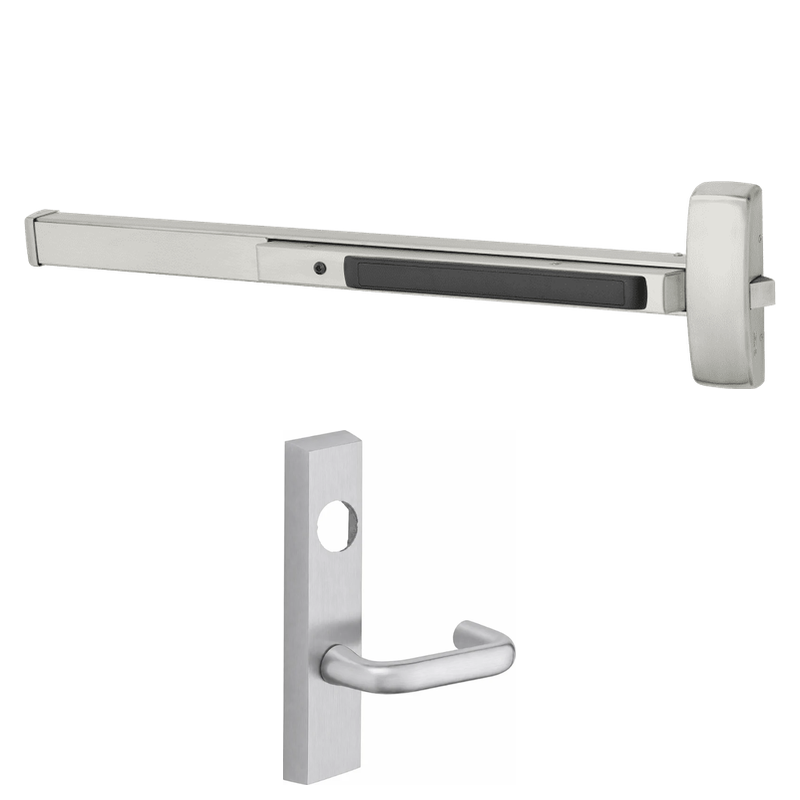

Sargent 8813-F-ETJ Rim Exit Device, Classroom Function, ET Control, J Lever, 33-36 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-F-ETJ is a Grade 1 rim exit device built for high-traffic commercial openings up to 33-36 inches wide. Designed for classroom function, it allows controlled access from the outside using a cylinder while always permitting free egress from the inside. This model features the ET trim with the J lever design, offering a clean, ergonomic feel that meets ADA requirements. The fire-rated (F) build makes it suitable for labeled door assemblies, and hex key dogging allows the latch to be held retracted for push/pull operation during business hours. It ships less cylinder, giving installers the flexibility to match existing keying systems.

Features

• Grade 1 rated rim exit device engineered for durability in demanding commercial environments.
• Classroom (ET) function provides keyed outside access while maintaining free egress at all times.
• J lever trim delivers a comfortable grip and complies with ADA accessibility standards.
• Fire-rated construction suitable for labeled fire door assemblies.
• Hex key dogging holds the latch retracted for easy push/pull access.
• Sized for doors measuring 33 to 36 inches in width.
• Supplied less cylinder for flexible keying integration.

Functional Details

Classroom function allows the outside lever to be locked or unlocked by key. When unlocked, the lever retracts the latch for passage; when locked, entry requires a key while the inside push bar always allows free egress.

• Outside lever is locked and unlocked by key.
• Latchbolt retracted by lever when unlocked or by key when locked.
• Free egress at all times by depressing the push bar.

Arm Type Details

The ET control with J lever is a decorative lever trim configuration. The J lever provides a smooth, contemporary profile and operates the latch when the device is in the unlocked state, offering consistent, accessible operation.
