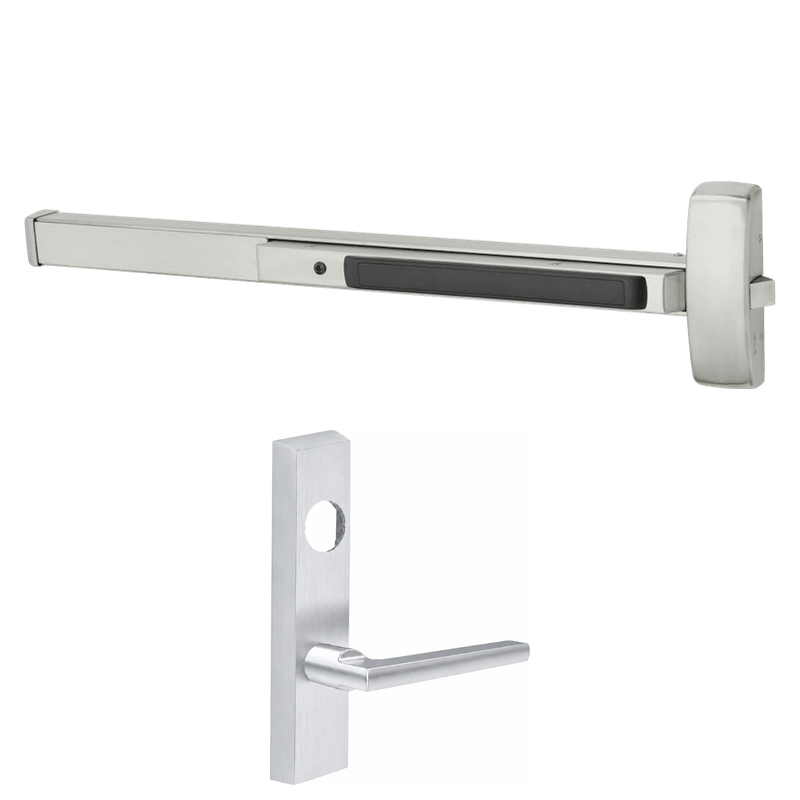

Sargent 8813-F-ETMD Rim Exit Device, Classroom Function, ET Control, MD Lever, 33-36 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-F-ETMD is a Grade 1 rim exit device engineered for classroom applications where secure, reliable egress is essential. Built for doors 33 to 36 inches wide, it pairs the 8800 Series rim mechanism with ET trim and the MD lever design, offering a clean look and durable daily performance. In classroom (F) function, the outside lever is locked or unlocked by key, while free egress is always available from the inside. Hex key dogging allows the push bar to be held in the retracted position for push/pull operation during high-traffic periods. Shipped less cylinder for field cylinder selection.

Features

• Grade 1 rim exit device suited for heavy-duty commercial and institutional openings.
• Classroom (F) function provides keyed control of the outside lever while allowing free egress at all times.
• ET trim with MD lever design for a durable, modern aesthetic.
• Sized for doors 33 to 36 inches in width.
• Hex key dogging holds the latch retracted for push/pull convenience.
• Supplied less cylinder, allowing you to match your facility's keying system.
• Field-reversible and adaptable to a range of commercial door configurations.

Functional Details

The classroom function (F) lets staff control access from the secure side using a key, while building occupants can always exit freely by pressing the push bar. The ET trim uses the MD lever to retract the latch when unlocked.

• Outside lever locked or unlocked by key.
• Latchbolt retracted by lever when unlocked.
• Free egress at all times by depressing push pad.

Arm Type Details

This device uses rim-mounted exit hardware with the ET control and MD lever trim on the outside. The push pad actuates the rim latch for exit, while the exterior lever provides keyed entry control consistent with classroom operation.

Included Components

The 8813-F-ETMD ships with the rim exit device chassis, ET trim with MD lever, strike, hex key dogging hardware, and mounting fasteners. A mortise cylinder must be ordered separately.
