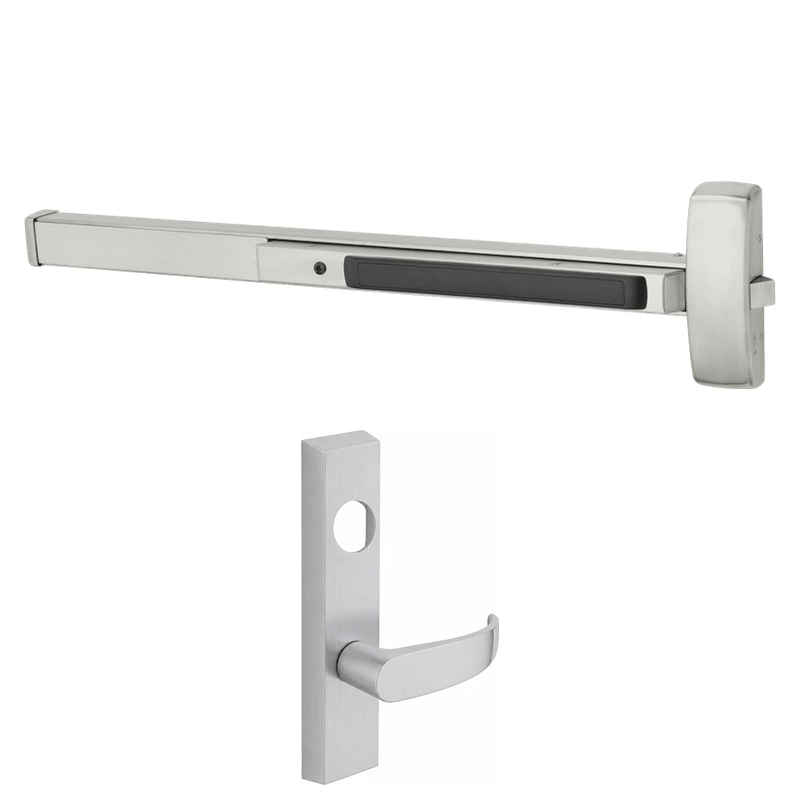

Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 8813FETPUS32DLHRLC
Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US32D-630 Satin Stainless Steel
Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US10B-613 Oil Rubbed Bronze
Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, US10BE-613E Dark Oxidized Bronze
Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder, BSP Black Suede Powder Coat
Zoomed view
All Sargent Products

Sargent 8813-F-ETP Rim Exit Device, Classroom Function, For 33-36 Inch Width Door, Hex Key Dogging, Less Cylinder

  • SKU: 8813FETPUS32DLHRLC
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$1,639.27/ea
0% Net 30 Days: Apply Now
Finish: US32D-630 Satin Stainless Steel
Handing: LHR Left Hand Reverse

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent 8813-F-ETP Rim Exit Device, C...
Quantity
–
+
From $1,639.27
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent 8813-F-ETP Rim Exit Device, Classroom Function, ET Control, P Lever, 33-36 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-F-ETP is a Grade 1 rim exit device built for demanding commercial applications where security and reliable egress are essential. Designed for doors measuring 33 to 36 inches wide, it features classroom function with the ET trim and P lever design, allowing controlled access from the outside while maintaining free egress at all times. The fire-rated (F) construction makes it suitable for rated openings, and hex key dogging lets staff hold the latch retracted for push/pull operation during peak traffic. Supplied less cylinder, this device gives installers the flexibility to specify their preferred mortise cylinder for the exterior trim.

Features

  • Grade 1 rim exit device rated for heavy-duty commercial use.
  • Fits door widths from 33 to 36 inches.
  • Classroom function controls outside access while allowing continuous free egress.
  • ET control with the P lever design provides a durable, comfortable trim option.
  • Fire-rated construction suitable for labeled openings.
  • Hex key dogging holds the latch retracted for push/pull convenience.
  • Ships less cylinder to accommodate the installer's keying system.

Functional Details

The classroom function allows the outside lever to be locked or unlocked by key, while the inside push bar always provides free egress. Depressing the push rail retracts the latch for immediate exit, and when dogged, the device stays retracted to permit free passage from both sides.

Arm Type Details

The ETP trim combines the ET escutcheon control with the P lever, offering a return-style lever that meets accessibility requirements and provides smooth, dependable operation on the pull side of the door.

Manufacturer Sargent
SKU 8813-F-ETP
Grade Grade 1
Device Type Rim Exit Device
Function Classroom
Trim ET Control, P Lever
Dogging Hex Key Dogging
Cylinder Less Cylinder
Fire Rating Fire Rated (F)
Origin USA
Unit of Measure Each
ANSI Number ANSI/BHMA A156.3
Limited Warranty Yes
Door Width Range 33 to 36 inches
Device Series 8800 Series
Mounting Rim
Latchbolt Type Deadlocking Pullman
Latch Throw 3/4 inch
Minimum Stile Width 3 inches
Door Thickness 1-3/4 inch standard
Cylinder Type Mortise Cylinder (not included)
Maximum Door Height 10 feet
Dogging Type Hex Key
Fire Classification UL Listed for Fire Doors
