Description

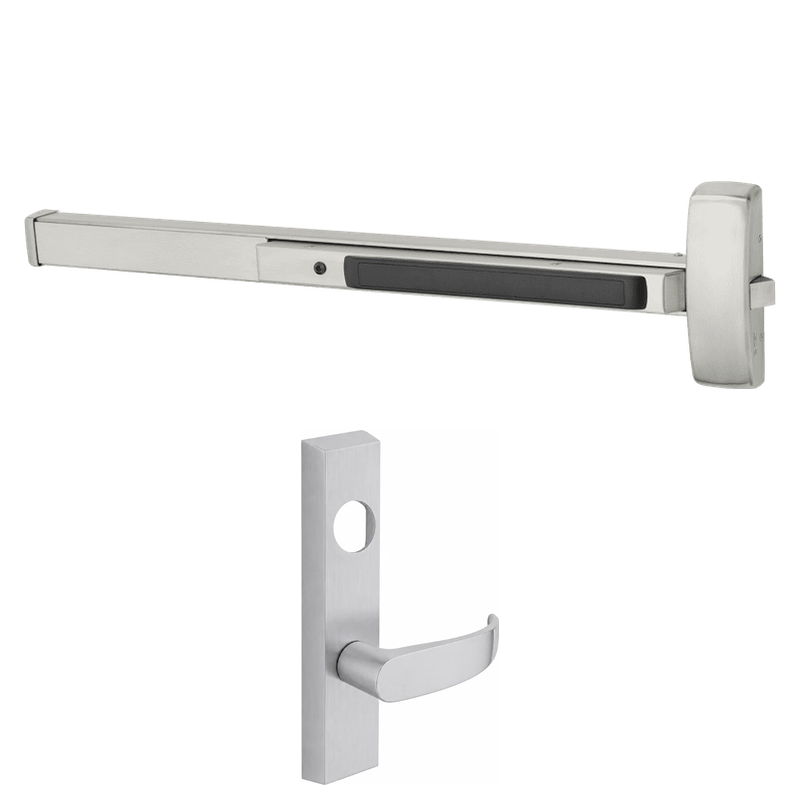

Sargent 8813-G-ETP Rim Exit Device, Classroom Function, ET Control, P Lever, 43"-48" Door Width, Hex Key Dogging, Grade 1, Less Cylinder
The Sargent 8813-G-ETP is a Grade 1 rim exit device built for high-traffic commercial openings, offering dependable classroom-function control on doors measuring 43 to 48 inches wide. Paired with the ET trim and P lever design, it allows authorized entry from the outside using a key while maintaining secure egress at all times from the inside. Hex key dogging lets staff hold the latch retracted during peak hours for push-pull operation, reducing wear and simplifying access. Shipped less cylinder for flexible keying integration, this device delivers the durability and performance expected from Sargent's 80 Series line in schools, offices, and institutional environments.
Features
- Grade 1 rim exit device engineered for demanding commercial and institutional use.
- Classroom function allows key-controlled access from the outside while permitting free egress from the inside.
- ET trim with the P lever design provides a comfortable, ADA-compliant grip.
- Sized for doors between 43 and 48 inches in width.
- Hex key dogging holds the latch retracted for convenient push-pull operation during high-traffic periods.
- Supplied less cylinder to accommodate your preferred keying system.
Functional Details
The classroom function (ET control) uses an outside key to retract the latch for entry, while the inside push bar always allows immediate, free egress. The lever remains fixed and the opening stays secured until a key is used, making it ideal for controlled-access rooms.
- Key outside retracts latchbolt.
- Inside lever or pad is always active for free egress.
- Hex key dogging holds the pushbar depressed for push/pull operation.
Arm Type Details
This is a rim-mounted exit device, meaning the latching mechanism and strike are installed on the surface of the door and frame. This configuration offers straightforward installation and reliable single-point latching for standard swinging doors.
Included Components
The device ships with the exit device chassis, ET trim with P lever, mounting hardware, and strike. A cylinder is not included and must be ordered separately.
Product Specifications
| Manufacturer | Sargent |
| SKU | 8813-G-ETP |
| Grade | Grade 1 |
| Device Type | Rim Exit Device |
| Function | Classroom (ET Control) |
| Trim / Lever | ET Trim, P Lever |
| Dogging Type | Hex Key Dogging |
| Door Width Range | 43 to 48 inches |
| Cylinder | Less Cylinder |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | UL Listed Panic Hardware |
| ANSI Number | ANSI/BHMA A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Series | 80 Series |
| Door Width Range | 43" - 48" |
| Latchbolt Throw | 3/4 inch |
| Mounting | Surface (Rim) |
| Device Projection | 3-5/8 inch (approx.) |
| Minimum Stile | 5 inch (approx.) |
| Door Type | Single or Double |
| Handing | Non-Handed |
| Cylinder Type | Rim Cylinder (ordered separately) |
| Fire Rating | Available for fire-rated openings (less dogging) |
| ANSI Grade | Grade 1 |
