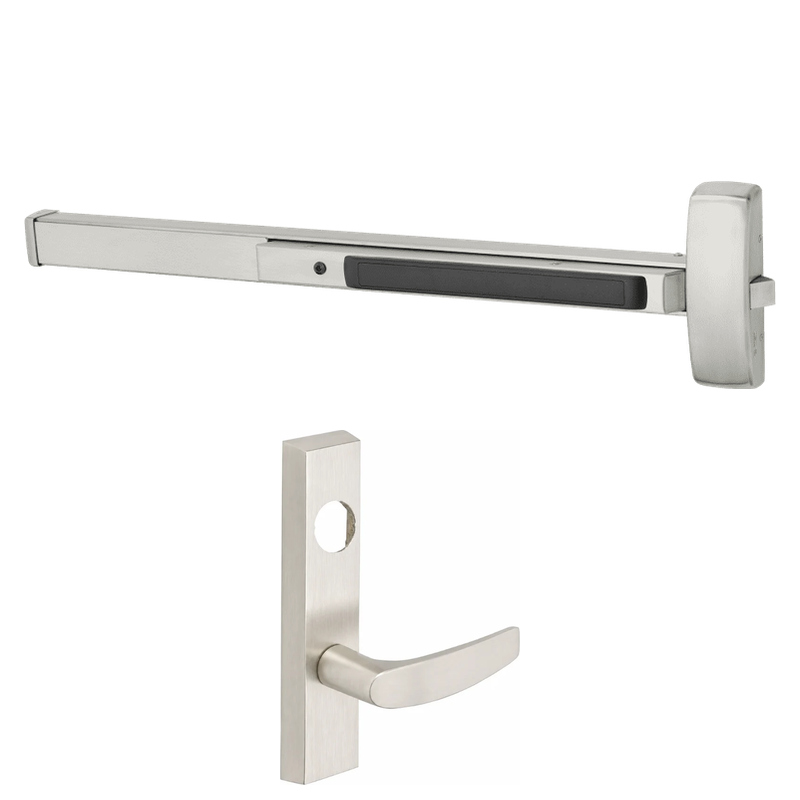

Sargent 8813-J-ETB Rim Exit Device, Classroom Function, ET Control, B Lever, 37-42 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-J-ETB is a Grade 1 rim exit device engineered for demanding commercial and institutional openings measuring 37 to 42 inches wide. Configured for classroom function with the ET trim and B lever design, this device allows secure entry from the outside using a key while permitting free egress at all times. It features convenient hex key dogging to hold the latch retracted during high-traffic periods and ships less cylinder for installations requiring a specific keying system. Built to withstand heavy daily use, the 8813-J-ETB delivers reliable security, dependable performance, and the durability expected from Sargent's 80 Series exit hardware.

Features

• Grade 1 rim exit device suited for heavy-duty commercial applications.
• Classroom function lets outside trim be locked or unlocked by key while egress remains free.
• ET trim paired with the B lever for a clean, ergonomic appearance.
• Hex key dogging holds the pushbar depressed for push/pull operation during peak traffic.
• Sized to fit doors from 37 to 42 inches in width.
• Supplied less cylinder to accommodate the facility's keying requirements.
• Rim-mounted design for straightforward installation on single or double doors.

Functional Details

The classroom function allows the outside lever to be locked or unlocked with a key. When locked, entry requires a key, but the inside pushbar always permits free egress for life-safety compliance.

• Classroom Function (J): Latchbolt retracted by lever from outside unless outside lever is locked by key. When outside lever is locked, latchbolt retracted by key from outside. Latchbolt retracted by exit device inside at all times.

Arm Type Details

The ET trim uses the B lever design, providing a comfortable grip and smooth operation for key-controlled access from the exterior side of the opening.

Included Components

Includes the rim exit device chassis, ET control trim with B lever, and hex key dogging hardware. Cylinder is not included and must be ordered separately.
