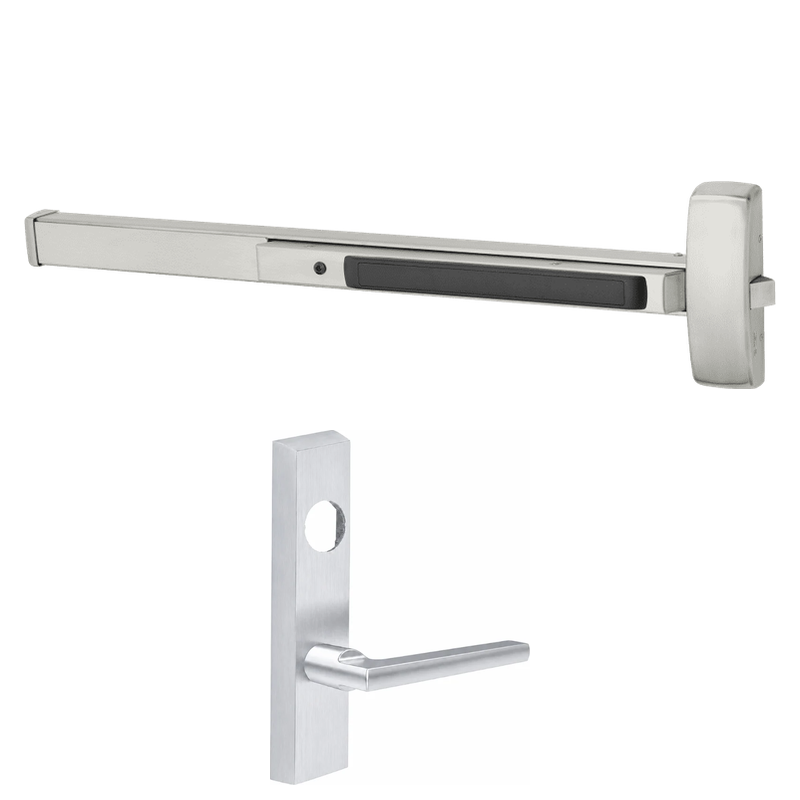

Sargent 8813-J-ETMD Rim Exit Device, Classroom Function, ET Control, MD Lever, 37-42 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-J-ETMD is a Grade 1 rim exit device built for high-traffic commercial openings on doors ranging from 37 to 42 inches wide. Configured for classroom function with ET control trim and the MD lever, it delivers reliable code-compliant egress while allowing secured access from the outside. Hex key dogging lets staff hold the pushbar retracted for push-pull operation during peak periods, reducing wear and noise. Supplied less cylinder so you can match your facility's existing keying system, this device pairs durable construction with the smooth, dependable performance Sargent is known for across schools, offices, and institutional buildings.

Features

  • Grade 1 rim exit device suitable for demanding commercial and institutional applications.
  • Classroom function allows locking and unlocking of the outside lever by key.
  • ET control trim with the MD lever design for a clean, ergonomic feel.
  • Sized for single doors measuring 37 to 42 inches in width.
  • Hex key dogging holds the latch retracted for free push-pull use.
  • Supplied less cylinder for integration with existing keying systems.
  • Non-handed rim mounting for simplified installation.

Functional Details

In classroom function, the outside lever is controlled by key. Turning the key locks or unlocks the lever, while free egress is always available from the inside by pushing the exit bar.

  • Key outside locks or unlocks the outside lever.
  • Latchbolt operated by lever unless locked by key.
  • Exit device always allows free egress from the inside.

Included Components

The device ships with the 8800 series rim exit chassis, ET control trim with MD lever, strike, and mounting hardware. A compatible mortise cylinder must be ordered separately to complete the classroom function.

Manufacturer Sargent
SKU 8813-J-ETMD
Grade ANSI/BHMA Grade 1
Device Type Rim Exit Device
Function Classroom (ET Control)
Lever Style MD Lever
Dogging Hex Key Dogging
Cylinder Less Cylinder
Origin USA
Unit of Measure Each
ANSI Number A156.3
Limited Warranty Yes
Door Width Range 37 in. to 42 in.
Series 8800
Mounting Rim
Handing Non-Handed
Latchbolt 3/4 in. throw deadlocking latchbolt
Minimum Stile Width 3 in.
Trim Control ET
Cylinder Type Mortise Cylinder (not included)
Fire Rating Available listed for fire-rated openings
Material Steel and brass components
