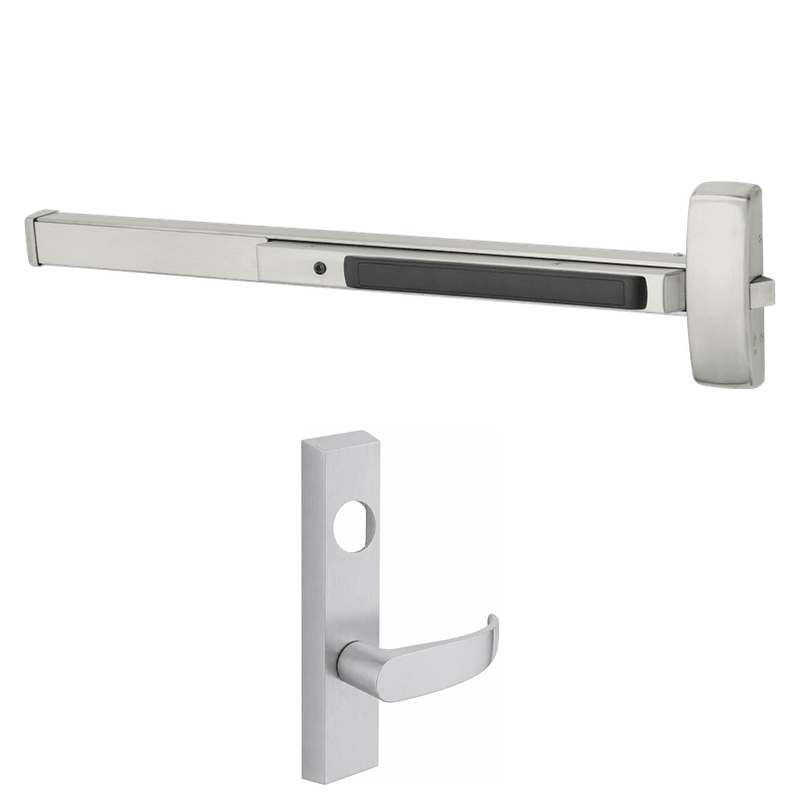

Sargent 8813-J-ETP Rim Exit Device, Classroom Function, ET Control, P Lever, 37-42 Inch Door, Hex Key Dogging, Grade 1, Less Cylinder

The Sargent 8813-J-ETP Rim Exit Device delivers reliable, code-compliant egress for medium to high-traffic commercial openings. Built for classroom function, it allows controlled access from the outside while always permitting free exit from the inside. This configuration fits doors measuring 37 to 42 inches wide and features hex key dogging, letting staff hold the latch retracted for push/pull operation during peak hours. Paired with the ET trim and the P lever design, the 8813-J-ETP ships less cylinder for flexible keying to match your facility's existing hardware. As a Grade 1 device, it offers the durability and strength expected in schools, offices, and institutional buildings.

Features

• Rim-mounted exit device engineered for dependable single-door egress.
• Classroom (ET) function controls outside access while allowing continuous free egress.
• Sized to fit door widths from 37 to 42 inches.
• Hex key dogging holds the latch retracted for quiet push/pull operation.
• P lever trim offers a clean, ergonomic grip for controlled entry.
• Supplied less cylinder for compatibility with your preferred keying system.
• ANSI/BHMA Grade 1 rated for demanding commercial environments.

Functional Details

In classroom function, the outside lever is controlled by a key, while the inside push bar always releases the latch for immediate egress. The hex key dogging feature allows authorized personnel to retract and hold the latchbolt for free push/pull access when the door does not need to stay latched.

• Key outside locks or unlocks the outside lever.
• Latchbolt retracted by lever or by exit device.
• Inside lever or push pad always allows free egress.

Included Components

This assembly includes the 8800 series rim exit device chassis with hex key dogging and the ET control with P lever trim. A mortise cylinder is not included and must be ordered separately.
