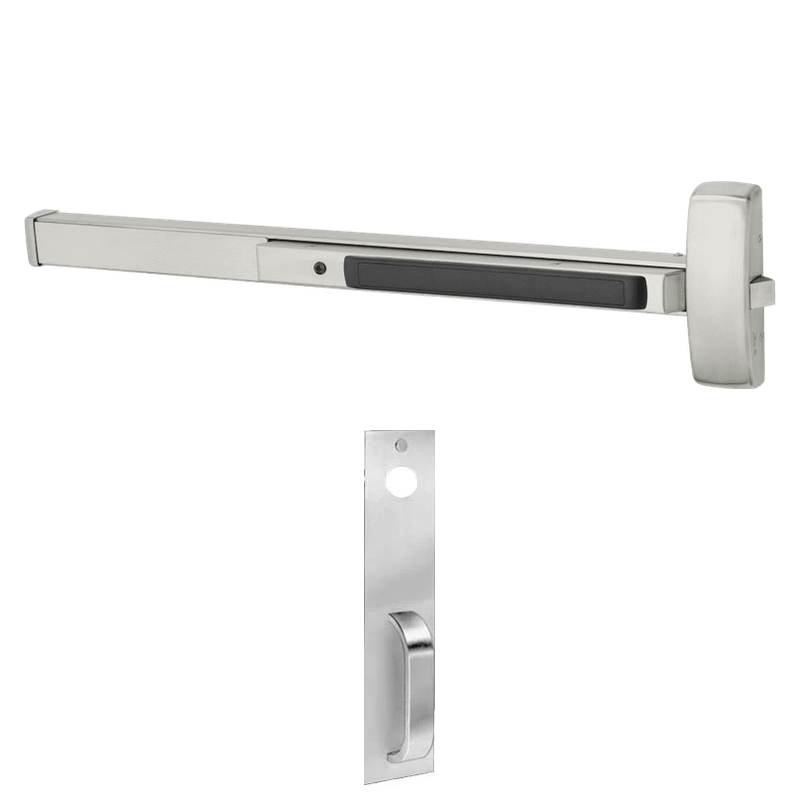

Sargent 8863-J-PTB Rim Exit Device, Classroom Function, PTB Thumbpiece Trim, 37"-42" Door Width, Hex Key Dogging, Grade 1, Reversible, Less Cylinder

The Sargent 8863-J-PTB is a Grade 1 rim exit device built for demanding commercial openings, pairing dependable panic egress with classroom-function control. Designed for doors measuring 37 to 42 inches wide, this device includes the PTB thumbpiece trim and operates in the 8800 series classroom configuration, allowing authorized key control of outside access while maintaining free egress at all times. The reversible design simplifies installation on either hand of door, and hex key dogging lets staff hold the latch retracted for push-pull operation during high-traffic periods. Supplied less cylinder, it accepts a standard mortise cylinder to match your facility's keying system.

Features

• Grade 1 rim exit device engineered for heavy-duty commercial use.
• Classroom function allows outside lever/thumbpiece control by key while permitting free egress.
• PTB thumbpiece trim provides reliable outside operation.
• Sized for doors 37 to 42 inches wide.
• Reversible design fits left- or right-hand door applications.
• Hex key dogging holds the latch retracted for easy push-pull access.
• Supplied less cylinder for compatibility with existing keying systems.

Functional Details

The classroom function (08) lets the outside thumbpiece retract the latch unless locked by a key from the outside cylinder. Egress through the device is always free, meeting life-safety requirements.

• Outside trim is operated by key.
• Key retracts latch and holds trim active or inactive.
• Free egress at all times by pushing the touchbar.

Included Components

Device ships with the PTB thumbpiece trim and mounting hardware. A mortise cylinder is required but not included.
