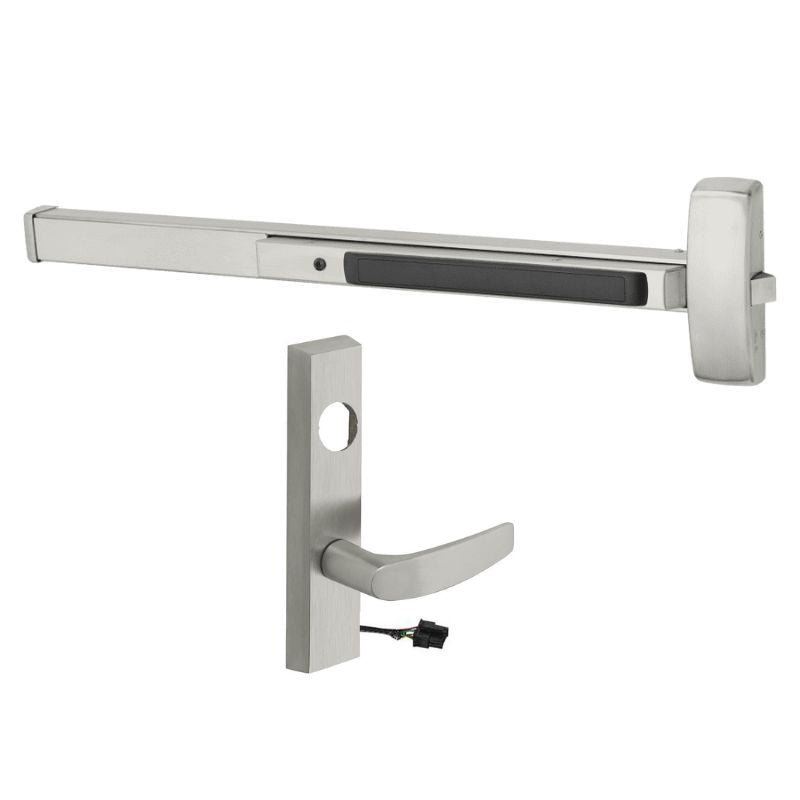

Sargent 8875-F-ETB-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-F-ETB-12V is an electrified rim exit device built for secure, access-controlled openings on doors measuring 33" to 36" in width. Configured with ETB electrified lever trim and a 12V power supply, it operates in a fail safe mode, meaning the outside lever unlocks whenever power is removed to support safe egress and controlled access. The outside key retracts the latch for mechanical override, while hex key dogging allows the device to be held in a retracted, push-pull state during high-traffic periods. Backed by Sargent's reputation for durable, Grade 1 hardware, this exit device delivers dependable performance in commercial and institutional environments.

Features

• Electrified ETB lever trim provides controlled access for card readers, keypads, and other access control systems.
• Fail safe operation unlocks the outside lever when power is cut, supporting safe egress during power loss.
• Outside key retracts the latch for convenient mechanical override.
• Hex key dogging holds the latch retracted for push-pull operation during peak traffic.
• Sized for 33" to 36" door widths for broad application coverage.
• 12V power configuration for compatibility with standard low-voltage systems.
• Rim-mounted design for straightforward installation on single or double doors.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

The 8875-F fail safe configuration keeps the outside lever locked while energized and automatically unlocks it when power is interrupted, ensuring the door can be opened from the outside during an emergency or power failure. Free egress is always available from the inside via the push bar.

• Fail safe (power off unlocks the lever).
• Key retracts latch for mechanical access.
• Hex key dogging holds the latch retracted.

Included Components

This unit ships with the rim exit device chassis, ETB electrified lever trim, mounting hardware, and strike for standard installation.
