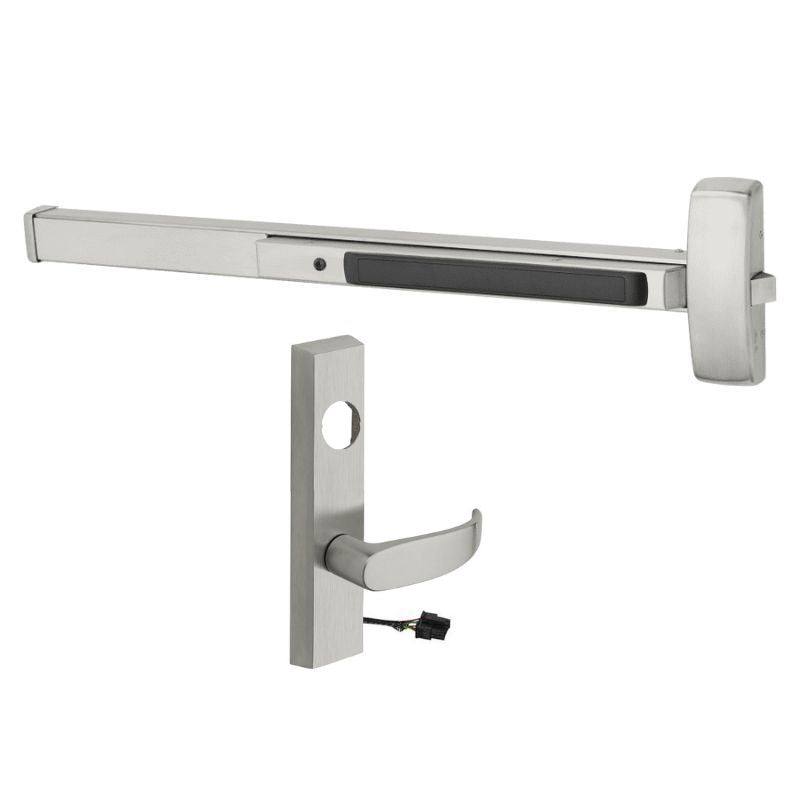

Sargent 8875-F-ETP-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-F-ETP-12V is a Grade 1 electrified rim exit device built for secure, code-compliant openings on doors measuring 33" to 36" in width. It combines dependable panic hardware with an electrified ETP lever trim operating at 12V in a fail safe configuration, meaning the lever unlocks for free passage when power is removed. The key retracts latch feature allows authorized entry from the outside, while hex key dogging holds the latch retracted for push-pull operation during high-traffic periods. Ideal for access control integration, fire exits, and commercial entrances, this device delivers the durability and performance Sargent's 80 Series is known for.

Features

• Electrified ETP lever trim provides controlled access on the exterior side of the door.
• Fail safe operation unlocks the outside lever automatically when power is lost.
• Key retracts latch function allows mechanical key override for entry.
• Sized specifically for door widths from 33" to 36".
• Hex key dogging keeps the pushbar depressed and latch retracted for push-pull use.
• Grade 1 rated construction for heavy-duty commercial applications.
• Operates on 12V for straightforward integration with access control systems.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In a fail safe configuration, the device is energized to keep the outside lever locked. When power is interrupted, the lever becomes operable, allowing free entry for life-safety and emergency egress situations. Free egress through the pushbar is always available regardless of power status.

• Fail Safe (Power Off/Unlocked): outside lever is unlocked when power is removed.
• Key retracts latch for mechanical entry from the outside.
• Free egress at all times from the inside pushbar.

Arm Type Details

This is a rim-mounted exit device, installed on the surface of the door face. The latch engages a strike mounted on the frame, making it well suited for single doors or the active leaf of a pair with the proper mullion or coordinator.

Included Components

The device ships with the 8875 rim exit chassis, electrified ETP lever trim, and standard mounting hardware. Strike and power supply are specified separately based on the installation.
