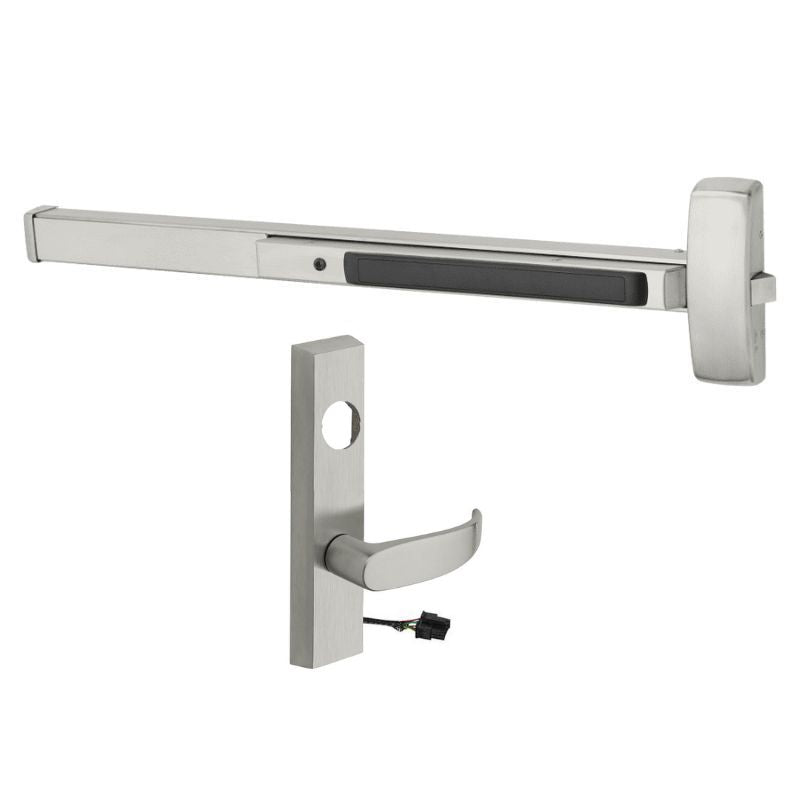

Sargent 8875-F-ETP-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 33-36 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-F-ETP-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require controlled access. Designed for doors 33 to 36 inches wide, this unit pairs a rim-mounted latch with an electrified ETP lever trim operating on 24V power. It functions as a fail safe device, meaning a loss of power releases the lever to allow free passage from the exterior, making it ideal for access-controlled and life-safety applications. Hex key dogging holds the pushbar in a retracted position for push/pull operation during peak periods, while the key-retracts-latch feature adds convenient outside key control.

Features

• Electrified ETP lever trim operating on 24V for integration with access control systems.
• Fail safe operation unlocks the lever automatically when power is removed.
• Sized for doors measuring 33 to 36 inches in width.
• Rim-mounted design for straightforward installation on single or paired doors.
• Hex key dogging retains the pushbar for quiet push/pull operation.
• Key retracts the latch for added exterior control and convenience.
• Grade 1 construction suited to demanding commercial environments.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

As a fail safe (F) device, the electrified trim is powered to lock. When the 24V supply is interrupted, the outside lever is released and allows entry, supporting secure egress and access control schemes that prioritize free access during a power loss.

• Fail safe: power off unlocks the outside lever.
• Key outside retracts the latch for momentary entry.
• Hex key dogging holds the pushbar depressed for push/pull use.

Included Components

The device ships with the rim exit chassis, electrified ETP lever trim, and mounting hardware required for installation on 33 to 36 inch wide doors.
