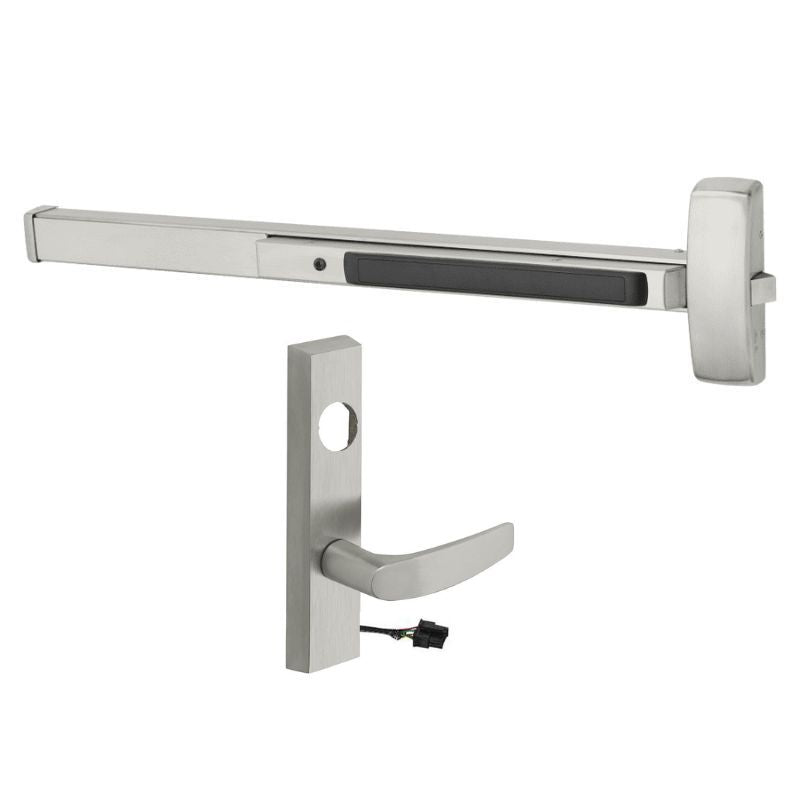

Sargent 8875-G-ETB-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-G-ETB-24V is a heavy-duty rim exit device built for high-traffic commercial openings that require electrified access control. Designed for doors measuring 43 to 48 inches wide, it pairs reliable panic exit hardware with an electrified ETB lever trim running on 24V power. Configured as fail safe, the device unlocks the outside lever when power is removed, making it a practical choice for openings tied to emergency egress and life-safety systems. A key retracts the latch for everyday access, while hex key dogging allows the latchbolt to be held retracted for push/pull operation during peak periods. Grade 1 construction ensures long-term durability.

Features

• Rim exit device engineered for 43" to 48" wide doors.
• Electrified ETB lever trim operates on 24V power for integration with access control.
• Fail safe function unlocks the outside lever when power is removed.
• Key retracts the latch for convenient authorized entry.
• Hex key dogging holds the latch retracted for push/pull use.
• Grade 1 rated for demanding commercial applications.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

As a fail safe electrified device, the ETB trim remains locked while energized and releases the outside lever when power is cut, allowing free access during a power loss. The exit device always permits free egress from the secure side, regardless of power status.

Arm Type Details

This unit uses electrified ETB lever trim, which controls entry from the outside. When the lever is locked, the inside push bar still allows immediate egress; the electrified solenoid controls whether the exterior lever retracts the latch.

Included Components

The device ships with the rim exit chassis, electrified ETB lever trim, strike, and mounting hardware for standard installation.
