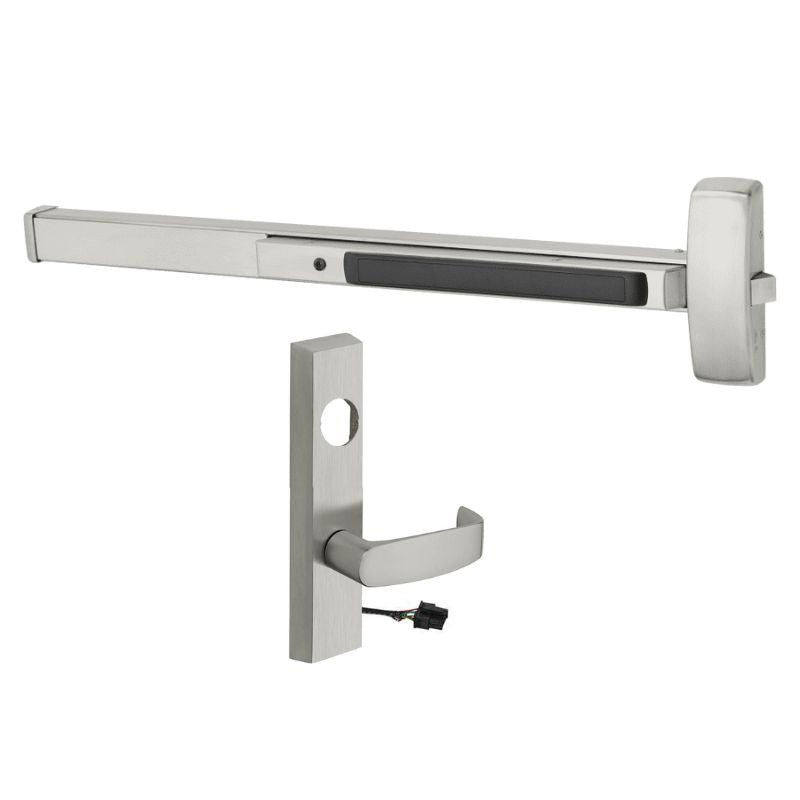

Sargent 8875-G-ETL-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-G-ETL-12V is a heavy-duty rim exit device engineered for wide openings measuring 43 to 48 inches. It combines a reliable rim latch with electrified ETL trim running on 12 volts DC, delivering secure electronic access control on the pull side while allowing free egress at all times. Configured as fail safe, the outside lever unlocks automatically on power loss to meet life-safety requirements, and the key retracts the latch for a mechanical override. With hex key dogging for convenient mechanical hold-open and Grade 1 construction, this device offers the durability and dependable performance demanded in schools, healthcare facilities, and other high-traffic commercial settings.

Features

• Rim exit device rated for 43" to 48" door widths.
• Electrified ETL (Electric Trim Lever) operating on 12 volts DC.
• Fail safe configuration unlocks the outside lever when power is removed.
• Key retracts the latch for mechanical control from the trim.
• Hex key dogging allows the device to be held in a dogged, push/pull state.
• Grade 1 construction suited for high-use commercial applications.
• G trim design provides durable, comfortable lever operation.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In fail safe mode, the electrified trim is powered to remain locked and releases to allow entry whenever the 12V power supply is interrupted. This ensures the door can be opened from the outside during a power failure, while the exit device always permits free egress from the inside.

• Fail safe: outside lever is unlocked when power is removed.
• Key retracts latch for mechanical override of the trim.
• Outside lever always rigid until electrically or mechanically released.

Arm Type Details

The ETL trim uses the G lever design, a durable escutcheon-style lever trim that remains rigid until released either electrically through the 12V supply or mechanically by key. This configuration keeps the outside lever secure in normal operation while providing a reliable means of controlled access.
