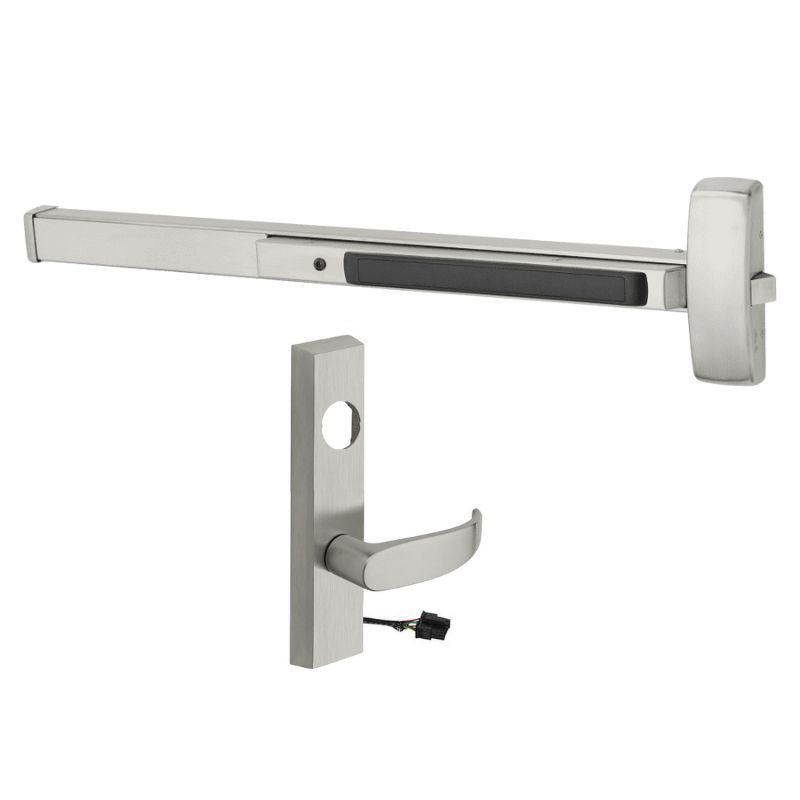

Sargent 8875-G-ETP-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)
The Sargent 8875-G-ETP-12V is an electrified rim exit device engineered for wide openings measuring 43 to 48 inches. Built around Sargent's rugged 80 Series platform, it combines reliable panic egress with electrified access control through the ETP trim. Operating at 12 volts in a fail safe configuration, the device automatically unlocks the lever during a power loss, making it a strong fit for emergency egress and secure access applications. The G lever design offers comfortable operation, while hex key dogging allows the latch to be held retracted for push/pull function. It's a dependable choice for schools, offices, and commercial facilities requiring controlled entry.
Features
- Electrified rim exit device sized for doors 43 to 48 inches wide.
- ETP electrified trim provides controlled access from the outside.
- Operates on 12V DC for integration with access control systems.
- Fail safe function unlocks the outside lever when power is removed.
- Key retracts latch for convenient mechanical override.
- Hex key dogging holds the latch retracted for push/pull operation.
- G lever design delivers smooth, ergonomic trim operation.
- Optional: KD LA keyway keyed differently with 2 change keys.
- Optional: LC Less Cylinder.
Functional Details
The 8875 function provides key-controlled access with an electrified trim. In the fail safe mode, removing power unlocks the outside lever so the door can be opened without a credential, while applying power keeps the lever locked. Free egress from the interior is always available through the touchpad.
- Key retracts latch.
- Fail safe: power off unlocks the outside lever.
Arm Type Details
This is a rim-mounted exit device with a surface-applied latch that engages a rim strike on the door frame, making installation straightforward on single doors and the active leaf of pairs.
| Manufacturer | Sargent |
| SKU | 8875-G-ETP-12V |
| Device Type | Rim Exit Device |
| Function | Electrified, Fail Safe |
| Lever Style | G Lever |
| Grade | Grade 1 |
| Dogging | Hex Key Dogging |
| Origin | Made in USA |
| Unit of Measure | Each |
| ANSI Number | A156.3 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
| Voltage | 12V DC |
| Door Width Range | 43 in. to 48 in. |
| Device Series | 80 Series |
| Mounting | Rim |
| Latch Bolt Throw | 3/4 in. |
| Door Thickness | 1-3/4 in. standard |
| Electrical Function | Fail Safe (power off unlocks) |
| Trim | ETP Electrified Trim |
| Handing | Non-handed |
| Fire Rating | Available for fire-rated openings |
