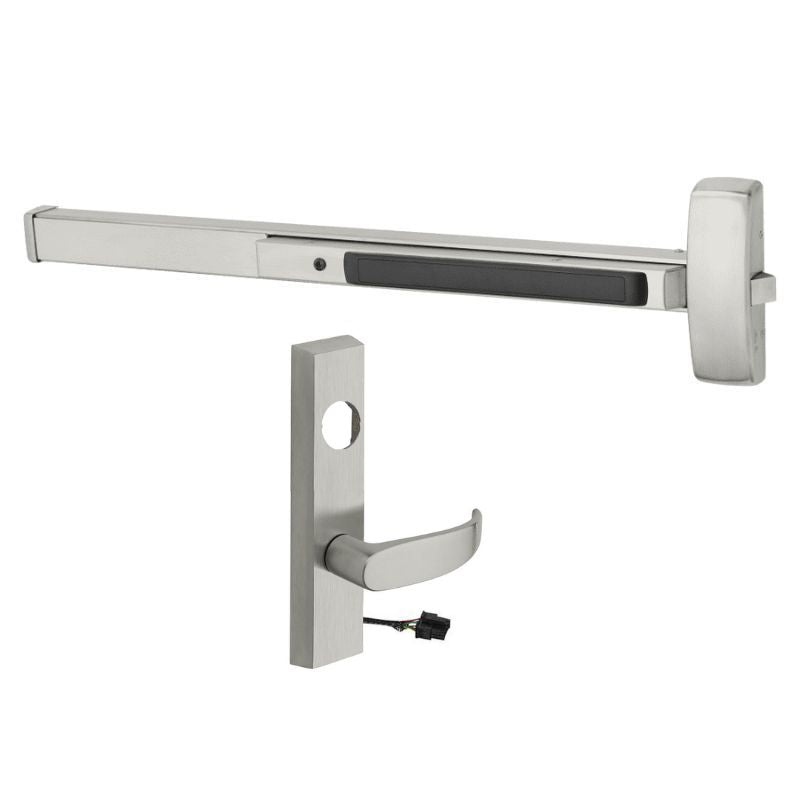

Sargent 8875-G-ETP-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 43-48 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-G-ETP-24V is a heavy-duty electrified rim exit device built for wide openings measuring 43" to 48" in door width. Designed with ETP electrified trim running on 24V power, it operates in a fail safe configuration, meaning the lever unlocks for entry when power is removed. The outside lever allows controlled access, while the key retracts the latch for added convenience. Equipped with hex key dogging, the device can be mechanically held in the depressed position for push/pull function during high-traffic periods. Backed by Sargent's reputation for durability, the 8875 series delivers reliable performance for commercial and institutional access control applications.

Features

• Electrified rim exit device sized for 43" to 48" door widths.
• ETP electrified trim operates on 24V power for integration with access control systems.
• Fail safe function unlocks the outside lever when power is removed.
• Key retracts the latch for straightforward keyed access.
• Hex key dogging allows the latch to be held retracted for push/pull operation.
• Rim mounting provides simplified installation on single or double doors.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In a fail safe configuration, the outside lever is electrically locked when energized and automatically unlocks when power is interrupted, allowing free entry during a power loss or emergency. The 24V ETP trim ties into building access control for remote and credentialed operation, while free egress is always maintained from the push-bar side.

• Power off unlocks the lever (Fail Safe).
• Key retracts latch.
• Hex key dogging holds the latch retracted for push/pull function.
