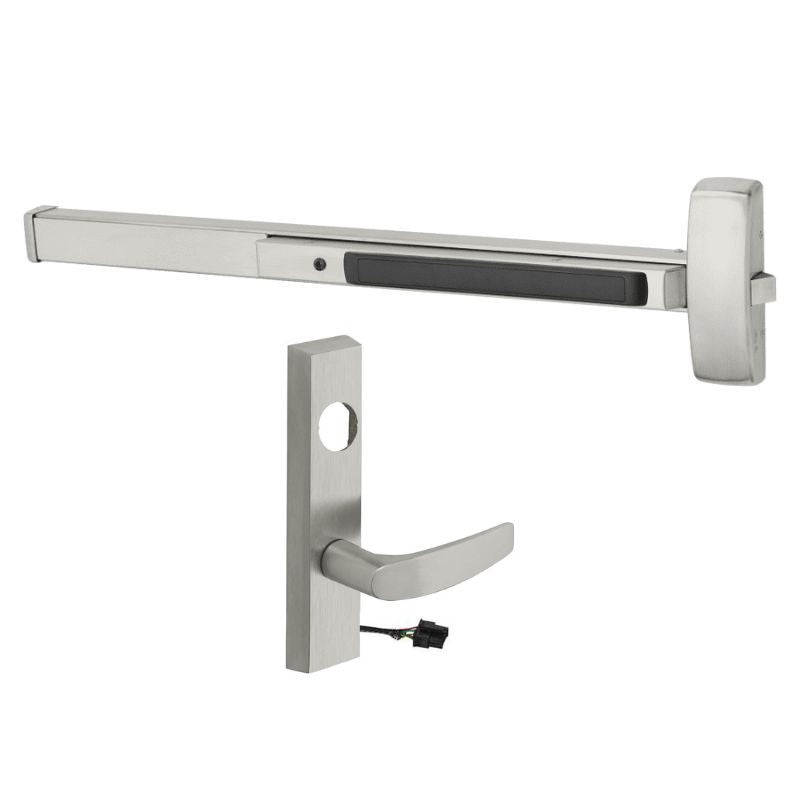

Sargent 8875-J-ETB-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-J-ETB-12V is a Grade 1 rim exit device engineered for wide openings measuring 37" to 42" in door width. Built with electrified ETB lever trim operating on 12 volts, it provides fail-safe access control, meaning the lever unlocks automatically when power is removed, making it a reliable choice for secured egress and emergency scenarios. The J designation indicates key-retracts-latch functionality, allowing authorized entry by withdrawing the latch with a key. Hex key dogging lets staff hold the latch retracted for push-pull operation during high-traffic hours. This device delivers dependable performance for commercial and institutional entrances where controlled access and code-compliant egress are required.

Features

• Electrified ETB lever trim for controlled electric access on the exterior.
• 12V operation for integration with access control and electrical systems.
• Fail-safe design unlocks the outside lever when power is interrupted.
• Key-retracts-latch (J function) permits authorized entry by withdrawing the latch.
• Hex key dogging holds the latch retracted for free push-pull operation.
• Sized specifically for wide doors from 37" to 42".
• Grade 1 construction for demanding commercial and institutional use.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail-safe configuration, removing power releases the outside lever so it can retract the latch and allow entry. Applying power locks the lever, requiring valid credentials for access while free egress is always available from the inside.

• Fail Safe: Power off unlocks lever
• Key retracts latch
• Hex key dogging holds latch bolt retracted

Arm Type Details

The ETB trim is an electrified lever handle mounted on the pull side of the door. When energized, the lever controls access electronically; the touchpad on the push side provides unobstructed egress at all times.

Included Components

This exit device ships with the rim exit chassis, electrified ETB lever trim, strike, and standard mounting hardware for installation on 37" to 42" wide doors.
