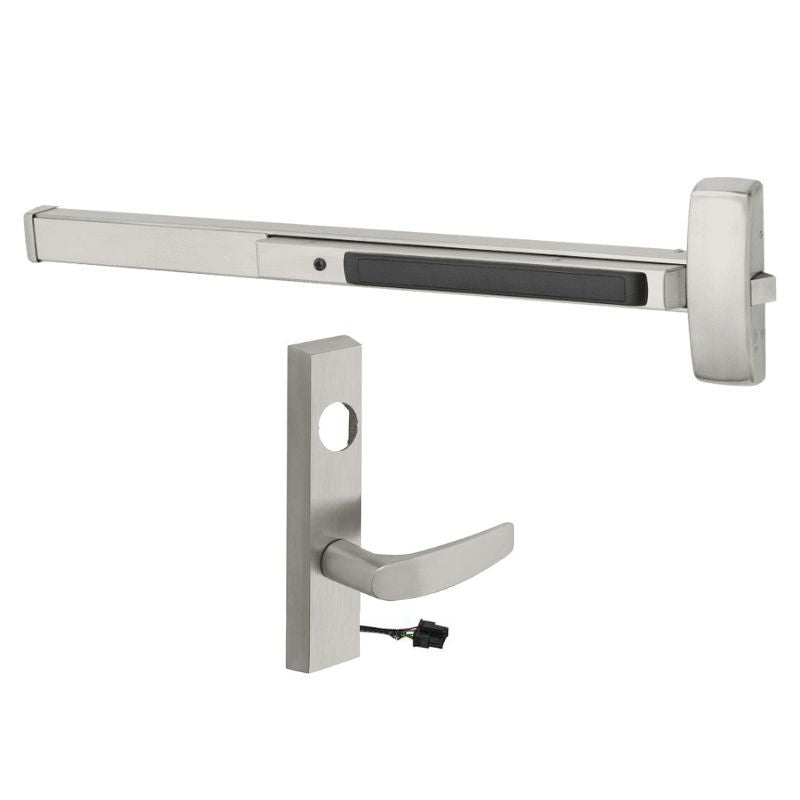

Sargent 8875-J-ETB-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-J-ETB-24V is a heavy-duty rim exit device engineered for commercial openings that need both reliable egress and controlled electrified access. Built for doors measuring 37" to 42" in width, this unit pairs a Grade 1 rim exit mechanism with the electrified ETB lever trim operating on 24V. Configured as fail safe, the trim unlocks automatically when power is removed, making it a strong fit for access control and life-safety applications. The J design accommodates the full door width range, while hex key dogging allows the latch to be held retracted for push/pull operation during high-traffic periods.

Features

• Grade 1 rim exit device designed for high-use commercial and institutional doors.
• Fits doors ranging from 37 to 42 inches in width.
• Electrified ETB lever trim operating on 24V for integration with access control systems.
• Fail safe operation unlocks the lever when power is removed.
• Key retracts the latch for convenient outside access.
• Hex key dogging allows the latch to be held retracted for push/pull use.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In a fail safe configuration, the ETB electrified trim is unlocked whenever power is interrupted, allowing free passage from the exterior during a power loss. When energized, the trim remains locked and the outside lever controls entry through the key or energized state, while free egress is always available from the push-bar side.

• Fail Safe: Power off unlocks the lever.
• Key retracts the latch for outside access.
• Hex key dogging holds the latch retracted for push/pull operation.

Arm Type Details

The ETB trim is a lever-style electrified pull trim mounted to the exterior of the door. The lever provides controlled entry when energized or when operated by key, while the interior push bar ensures unrestricted egress at all times.
