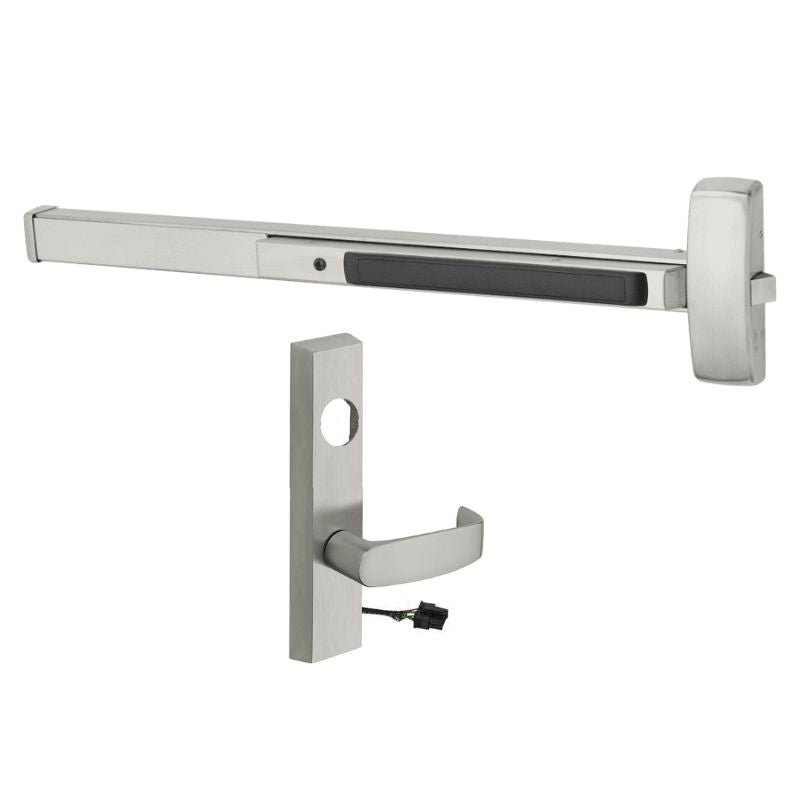

Sargent 8875-J-ETL-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-J-ETL-24V is a Grade 1 rim exit device built for high-traffic commercial openings that require access control integration. Operating on 24V, it features electrified ETL (electric trim) in a fail safe configuration, meaning the lever unlocks on power loss to allow entry. The outside lever stays locked when powered, and a key retracts the latch for mechanical override. Designed for door widths from 37 to 42 inches, this device includes hex key dogging to hold the latch retracted for push/pull operation during peak hours. The J (Grant) lever trim provides durable, code-compliant access for institutional, educational, and healthcare facilities.

Features

• Grade 1 rim exit device rated for heavy commercial and institutional use.
• Electrified ETL trim controls outside lever access through the access control system.
• 24V operation for compatibility with standard low-voltage power supplies.
• Fail safe function unlocks the outside lever when power is removed.
• Key retracts the latch for mechanical override at the outside trim.
• Sized for door widths of 37 to 42 inches.
• Hex key dogging holds the latch retracted for push/pull operation.
• J (Grant) lever design offers a clean, durable aesthetic.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

The 8875 ETL function provides electrically controlled access through the outside lever. In the fail safe mode, removing power unlocks the lever for free entry, while applying power locks it. Free egress is always available from the inside by pressing the push bar, and a cylinder in the trim allows the latch to be retracted by key.

• Electric latch retraction and electrified trim functions available
• Fail safe: lever unlocked when de-energized
• Free egress at all times from the inside
• Key retracts latch

Arm Type Details

This is a rim-mounted exit device with a surface-mounted latch that engages a strike on the frame, making it ideal for single doors or the active leaf of a pair. The push rail spans the door for intuitive, panic-compliant egress.
