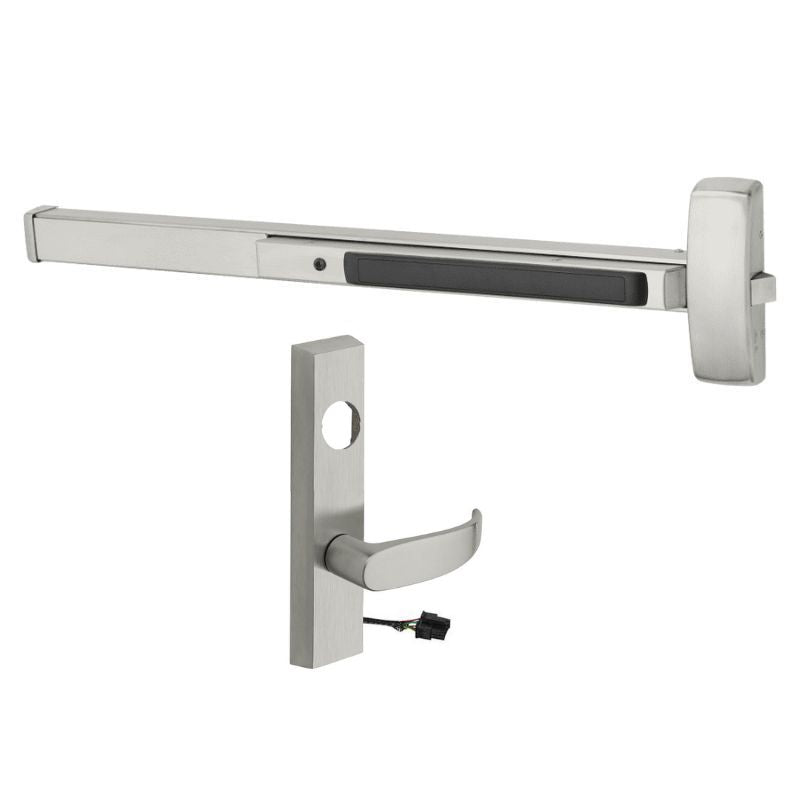

Sargent 8875-J-ETP-12V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-J-ETP-12V is a Grade 1 electrified rim exit device built for medium to high-traffic commercial openings measuring 37 to 42 inches in width. It pairs a dependable rim-mounted mechanism with electrified ETP lever trim operating on 12 volts, giving facilities reliable access control at a single opening. Configured in a fail-safe arrangement, the trim unlocks automatically when power is removed, making it a practical choice for egress routes and areas governed by life-safety requirements. The P lever design and key-retracts-latch function round out a device engineered for durability, code compliance, and everyday ease of use in institutional and commercial settings.

Features

• Electrified rim exit device rated for door widths from 37 to 42 inches.
• ETP electrified lever trim operates on 12V for integration with access control systems.
• Fail-safe operation unlocks the outside lever when power is removed.
• Key retracts the latch for convenient authorized entry from the exterior.
• Hex key dogging allows the device to be held in a retracted, push-pull state.
• Grade 1 construction for heavy commercial and institutional use.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail-safe configuration, the exit device defaults to an unlocked outside trim whenever power is interrupted, ensuring immediate access during a power loss. When energized, the outside lever remains locked and controlled by the access control system, while free egress from the inside is always available.

• Fail Safe: Power off unlocks the lever trim.
• Key outside retracts latch for mechanical override entry.
• Free egress at all times from the inside push bar.

Arm Type Details

The device uses the P lever design as its trim style, providing an ergonomic, ADA-friendly grip for operating the outside lever when unlocked. The lever returns to a neutral position after each use and is engineered to withstand repeated cycling in demanding environments.

Included Components

The device ships with the rim exit chassis, electrified ETP lever trim with J design lever, mounting hardware, and strike for standard rim installation.
