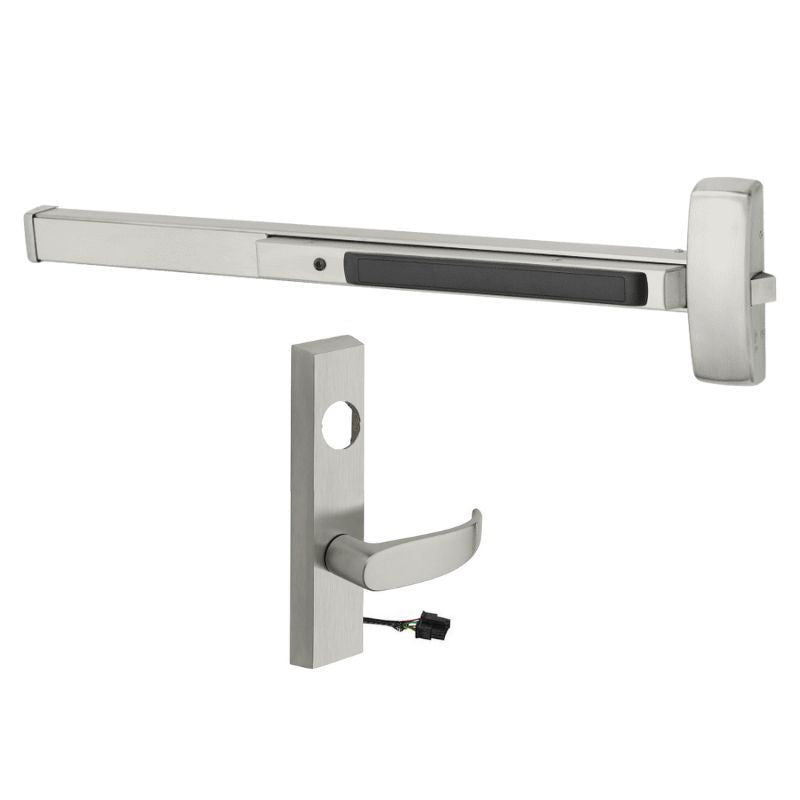

Sargent 8875-J-ETP-24V Electrified Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, For 37-42 Inch Width Door, Hex Key Dogging — Core Options: KD LA keyway keyed differently with 2 change keys; or LC Less Cylinder (Option)

The Sargent 8875-J-ETP-24V is a grade 1 electrified rim exit device built for high-traffic openings that require controlled access. Configured with fail safe operation at 24 volts, the outside ETP lever trim unlocks automatically when power is removed, making it ideal for secured egress and emergency scenarios. It accommodates door widths from 37" to 42" and uses a key to retract the latch for authorized entry. Hex key dogging allows the device to be held in a retracted, push-to-open state when needed. With the durable P lever design and Sargent's trusted build quality, this unit delivers reliable security and smooth everyday performance.

Features

• Electrified rim exit device with ETP outside lever trim for controlled access.
• Fail safe operation unlocks the lever when power is removed from the device.
• Operates on 24V DC for integration with access control systems.
• Sized for door widths ranging from 37 inches to 42 inches.
• Key retracts latch to allow authorized entry from the outside.
• Hex key dogging holds the latch retracted for push/pull operation.
• Grade 1 construction for durability in demanding commercial use.
• Optional: KD LA keyway keyed differently with 2 change keys.
• Optional: LC Less Cylinder.

Functional Details

In the fail safe configuration, removing power to the ETP trim releases the outside lever, allowing free entry during a power loss. When power is applied, the trim is locked and access is restricted. A key can be used from the outside to retract the latch at any time, and hex key dogging keeps the device dogged for continuous passage.

• Fail safe: power off unlocks the outside lever.
• Key retracts latch for authorized entry.
• Hex key dogging holds latch retracted.

Arm Type Details

The device uses the P lever trim style, providing an ergonomic grip and ADA-friendly operation for the outside trim when unlocked.
