Sargent 8904G-US32D Mortise Exit Bar, Wide Stile Pushpad, 48" Bar, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

  • SKU: 8904GUS32DRHR

Sargent 8904G-US32D Mortise Exit Bar, Wide Stile Pushpad, 48" Bar, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

  • SKU: 8904GUS32DRHR
Sale price$1,339.20/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Sargent Handing: -RHR Right Hand Reverse
Visa Mastercard American Express Discover Shop Pay Apple Pay

Frequently Bought Together

? What's this?
Door hardware to Complete Your Set
Sargent 8904G-US32D Mortise Exit Bar,...
Quantity
+
Sale price$1,339.20
Sargent 704-ETL Exit Device Trim, Nig...
Quantity
+
Sale priceFrom $448.20
Total

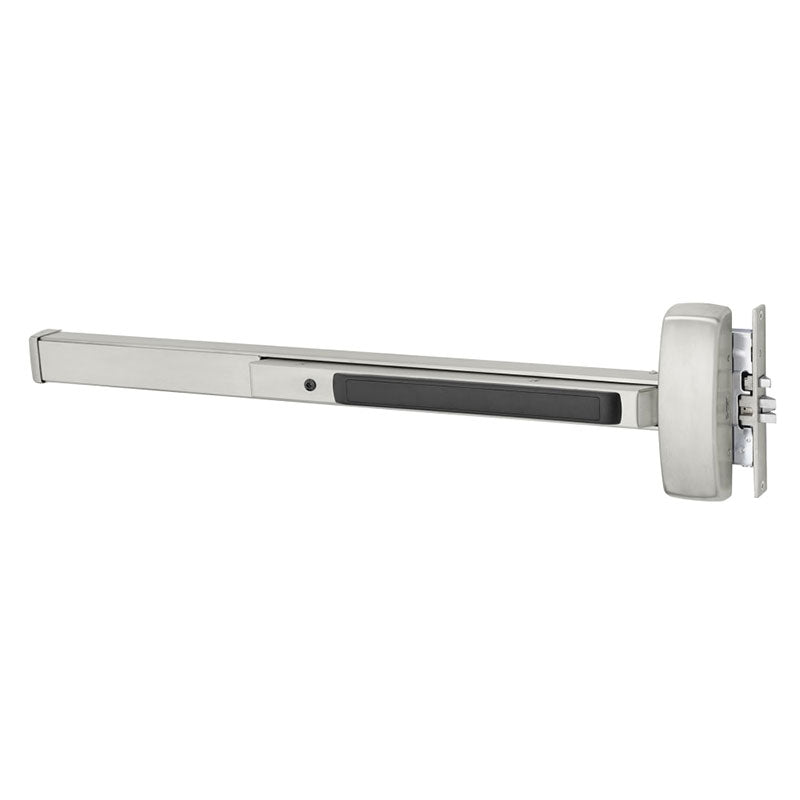

The Sargent 8904G-US32D is a Mortise Device Exit Bar, with a Wide Stile Pushpad, is 48" Long and accommodates door 43"- 48" wide, is Night Latch Function, has Hex Key Dogging,  is handed Left Hand Reverse or Right Hand Reverse, is Grade 1, and comes in Satin Stainless Steel Finish

8900 Series Mortise Exit Devices

The 8900 Series is for single-door applications

8900 Mortise Lock Exit Device has concealed single-point guarded latching for additional security and is designed for standard-width stile applications on wood and metal doors.

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- option.  4-1/2" (114mm) minimum stile
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
SKU 8904G 32D
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No
Finish 630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver



Physical Appearance Wide Stile Pushpad
Device Type Mortise
Mechanical Function Night Latch
Device Length 48"
Dogging Options Hex Key Dogging
Includes Trim Yes
Trim Type Cylinder Only
Includes Cylinder(s) Yes
Cylinder Type 1-3/4" Mortise
Minimum Stile Size 4-1/2"
Door Material Metal
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible No
Product Type Mortise Exit Devices

Panic Handing Chart
