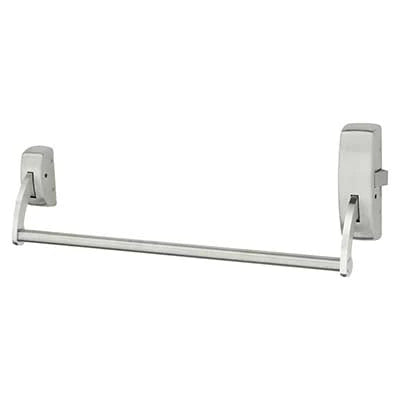

Sargent 9898-44-US32D Reversible Rim Crossbar Exit Device
Sargent 9898-44-US32D Reversible Rim Crossbar Exit Device
Sargent 9898-44-US10B Reversible Rim Crossbar Exit Device
Sargent 9898-44-US10 Reversible Rim Crossbar Exit Device
All SARGENT Products

Sargent 9898-48 Multi-Function, Rim Crossbar Exit Device, Field Reversible, 48" Bar

  • SKU: 989848US32D
  • ✓
    In Stock
    In Stock
Your Price
$1,206.12/ea
Finish: US32D Satin Stainless Steel (630)
Handing Guide:
handing chart image

Sargent 9898-48 Multi-Function Reversible Rim Crossbar Exit Device, Surface Mounted, Hex Key Dogging, 48" Bar, 1 3/4" Thick Door, Non-Handed, Trim Sold Separately

9800 Series Rim Exit Devices can be cut to length in the feild to match door width.

9898 Cross Bar Exit Devices are ideal for use in courthouses, historic preservation projects, and full glass doors.

The 9800 Series exit devices are ordered with trim and shipped complete with the strike, screw packs, and cylinder as required in one carton. The cross bars are cut to the correct length, based on door width.
  • Maximum 4-1/2 inch (114mm) projection, minimum 2-3/4 inch (70mm) dogged
  • Can be grand master keyed or master keyed with any other SARGENT product
  • Stainless steel springs
  • Through-bolted trim
  • Meets ANSI A156.3 Grade 1
  • UL Listed
  • 4 Functions Determined by the Trim
  • Device and Trim are sold separately
  • Device Field Reversible
  • Crossbar can be cut to length in the field
    Manufacturer Sargent
    Unit of Measure Each



    Physical Appearance Wide Stile Crossbar
    Device Type Rim
    Includes Trim No
    Fire Rated No
    Product Type Rim Exit Devices
    For Doors Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. For other door thicknesses, consult the factory. 4-1/8" (105mm) minimum stile
    Mounting Supplied standard with wood and machine screws. Through-bolts available on order
    Chassis Cover Brass, bronze, or stainless steel
    Crossbar 1" brass, bronze, and stainless steel tubing. Specify 42- for a reinforced crossbar
    Hand Non-handed; field reversible
    Dogging Standard Allen key dogging (Not available on fire-rated devices)
    Strike 649 Strike
