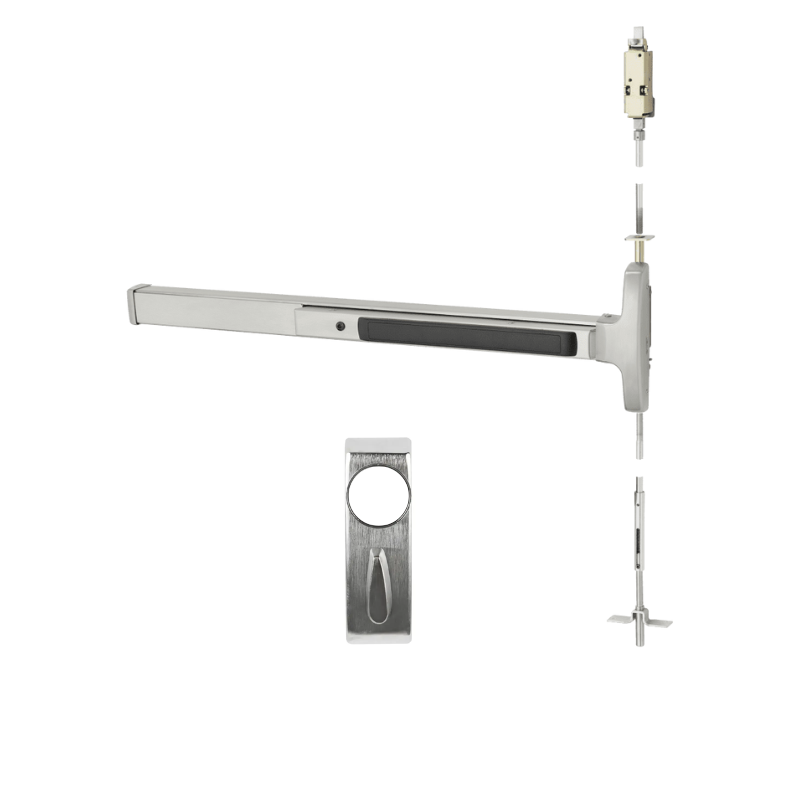

Sargent AD8410F-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 33-36" Width, 106 Aux control, Less Cylinder, 84 in Ht, Satin Stainless Steel Finish

  • SKU: AD8410F106US32DRHR
Sargent AD8410F-106-US32D
Zoomed view
All SARGENT Products

Sargent AD8410F-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 33-36" Width, 106 Aux control, Less Cylinder, 84 in Ht, Satin Stainless Steel Finish

  • SKU: AD8410F106US32DRHR
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$2,581.93/ea
0% Net 30 Days: Apply Now
Handing: RHR Right Hand Reverse
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Sargent AD8410F-106-US32D Narrow Stil...
Quantity
–
+
$2,581.93
Sargent Cylinders - Multiple Keyways ...
Quantity
–
+
From $125.56
Total

Sargent AD8410F-106-US32D Narrow Stile Concealed Vertical Rod Exit Device, 33-36" Width, 106 Aux control, Less Cylinder, No Pull, Hex Key Dogging, 84 in Ht, Grade 1, 630 Satin Stainless Steel Finish

The Sargent AD8410F-106-US32D is a Grade 1 narrow stile concealed vertical rod exit device designed for doors 33-36" wide. It features a 106 auxiliary control, hex key dogging, no pull handle, and comes without a cylinder. The unit stands 84 inches tall and is finished in 630 satin stainless steel, providing durability and a professional look.

Features

  • Designed for narrow stile aluminum door applications (e.g., full glass doors)
  • Concealed rods for security and aesthetics
  • UL10C (Fire) and UL305 (Panic) listed
  • 106 Aux Control
  • Devices are ANSI/BHMA A156.3 - Grade 1
Sargent Function Numbers ANSI Function Numbers  Description & Cylinder Info AD8400 Panic
06 12

Key unlocks Turn, Turn retracts latch/Turn relocks when key is removed

Less Cylinder

 AD8410 x 106
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance No



Physical Appearance Wide Stile Pushpad
Device Type Concealed Vertical Rod
Mechanical Function Mutli-Function
Device Length 36"
Hand LHR or RHR
Dogging Options Hex Key Dogging
Top Strike 640
Strike Bottom 640
Includes Trim No
Trim Type Less Trim
Includes Cylinder(s) No
Minimum Stile Size 1 3/4"
Door Material Aluminum
Door Width 33" to 36"
Door Height 84"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible No
Product Type Concealed Vertical Rod Exit Devices


Product Cut Sheet
