Sargent LC-12-56-8706-F-ETJ-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 33-36" Wd, 96" Ht Door, Less Cylinder

The Sargent LC-12-56-8706-F-ETJ-96 is an electrified, fire-rated surface vertical rod exit device engineered for demanding commercial and institutional openings. Configured for storeroom function with the ETJ lever trim, it provides secure access control while maintaining reliable egress on 33"-36" wide doors up to 96" tall. The 56 electrification option adds electric latch retraction capability, and the device ships less cylinder (LC) to accommodate your preferred keying. Built to Sargent's 80 Series durability standards, it delivers dependable panic hardware performance for fire-rated applications where life safety and controlled entry are both priorities.

Features

• Fire-rated surface vertical rod exit device suitable for labeled door assemblies.
• Storeroom function keeps the outside lever locked at all times while allowing free egress.
• Electrified 56 option provides electric latch retraction for remote access control.
• ETJ lever trim offers a durable, ADA-compliant operating design.
• Sized for 33"-36" wide doors and configured for 96" door height.
• Supplied less cylinder (LC) for flexible keying and system integration.
• Heavy-duty construction built for high-traffic commercial environments.

Functional Details

The storeroom function (12) keeps the exit device latched and the outside trim locked at all times. Entry from the outside requires a key, while the inside push rail always allows immediate free egress. The 56 electrification adds electric latch retraction, enabling the device to be unlocked or dogged electrically through an access control system.

• Outside trim is always locked.
• Latchbolt is retracted by key from outside or lever when unlocked.
• Inside lever or push pad always retracts latchbolt for immediate egress.

Arm Type Details

This unit uses a surface-mounted vertical rod configuration, with top and bottom latch points connected by exposed vertical rods along the door face. This design secures the door at both the header and threshold, providing strong two-point latching for fire-rated openings without mortising rods into the door.

Included Components

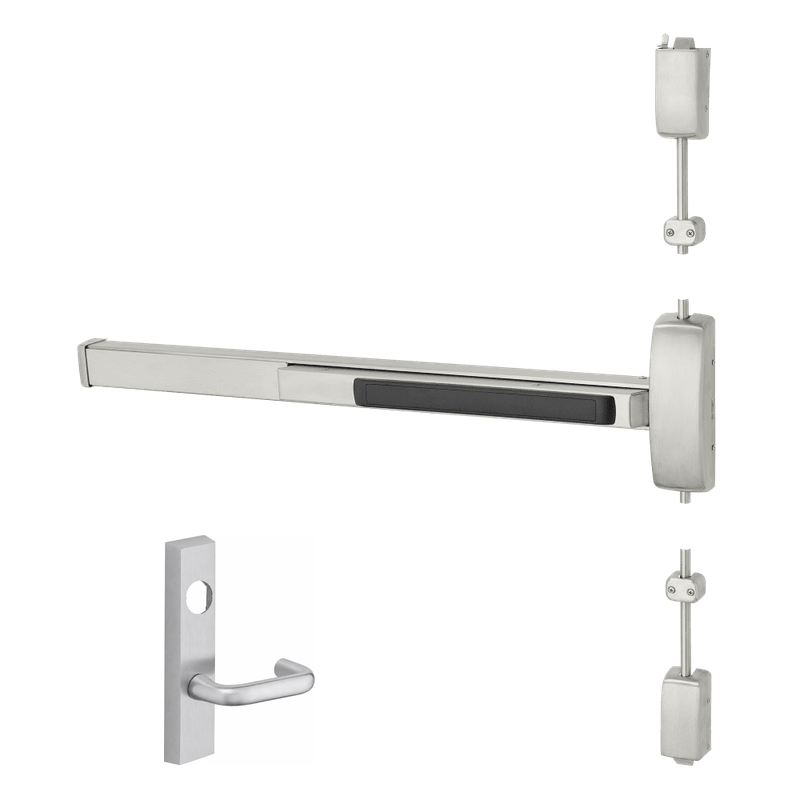

Device includes the fire-rated surface vertical rod exit chassis, ETJ lever trim, top and bottom latch mechanisms, and vertical rods. Cylinder is not included and must be ordered separately.
