Sargent LC-12-56-8706-G-ETL-96 Electrified Fire Rated Surface Vertical Rod Exit Device, Storeroom, For 43-48" Wd, 96" Ht Door, Less Cylinder

The Sargent LC-12-56-8706-G-ETL-96 is an electrified fire rated surface vertical rod exit device built for wide, oversized openings measuring 43 to 48 inches in width and up to 96 inches in height. Part of Sargent's heavy-duty 80 Series, this device combines dependable panic egress with electrified access control through the ETL (electrified trim/lever) function. Configured for storeroom operation with the G lever trim, it ships less cylinder so you can match your existing keying system. UL fire rated for use on labeled door assemblies, it delivers the durability and code compliance demanded in schools, hospitals, and commercial buildings where security and reliable exit are essential.

Features

• Surface-mounted vertical rod design provides secure two-point latching at the top and bottom of the door.
• Fire rated construction suitable for labeled door and frame assemblies.
• Electrified trim (ETL) allows remote control of the outside lever for access management.
• Storeroom function keeps the outside lever locked until released by key or electrical signal.
• Sized for oversized openings up to 48" wide and 96" tall.
• Supplied less cylinder for integration with existing keying systems.
• Durable G (grip/lever) trim rated for high-traffic commercial use.

Functional Details

The storeroom function (12) keeps the outside lever continuously locked, with entry granted only by key or electrical signal, while the inside lever always allows free egress. When electrified, power is applied to unlock the outside lever for controlled access, returning to the locked state once power is removed.

• Outside lever is always locked.
• Key or electrical signal retracts the latch to allow entry.
• Free egress at all times from the inside.

Included Components

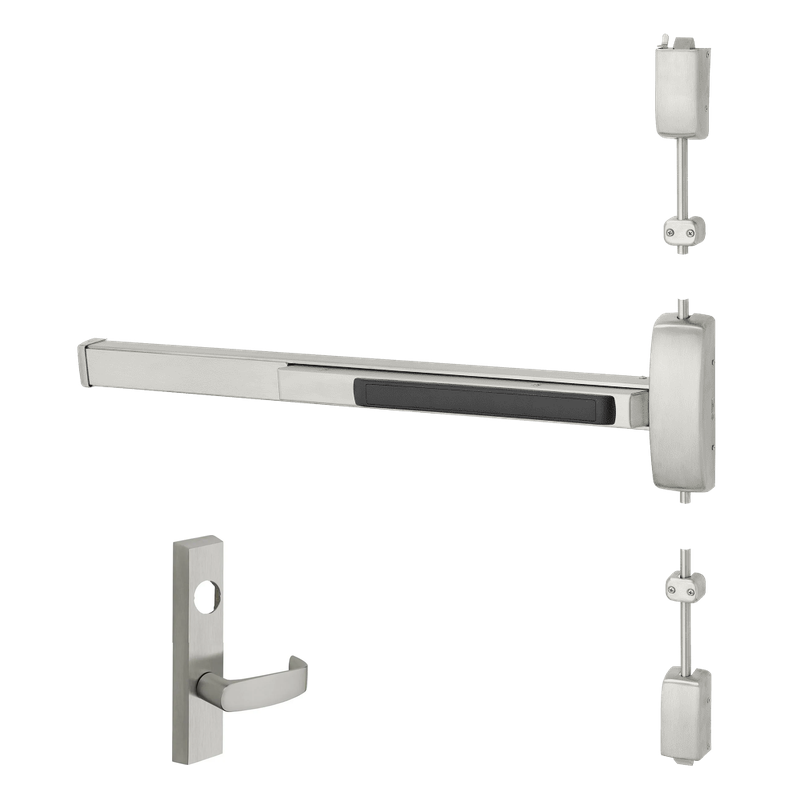

This device includes the surface vertical rod exit mechanism, top and bottom latches with vertical rods, and the electrified G lever trim configured for storeroom operation. A mortise cylinder is not included and must be ordered separately.
