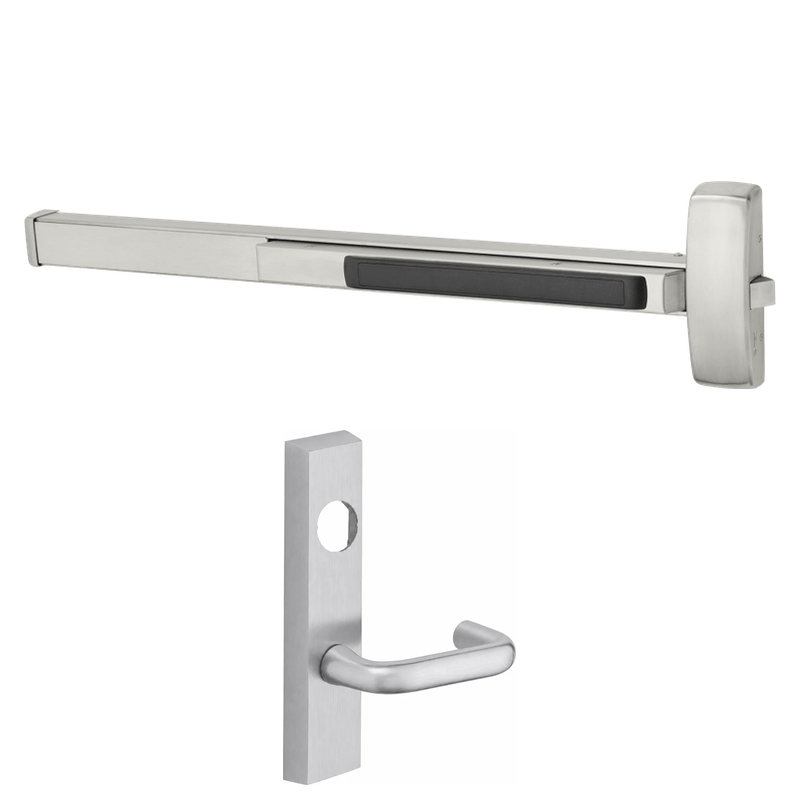

Sargent LC-12-56-8804-F-ETJ Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-F-ETJ is a fire-rated rim exit device built for high-traffic commercial openings that demand reliable security and remote access control. Featuring electric latch retraction (ELR), this device allows the latch to be retracted electronically for momentary or extended free egress and entry, making it ideal for access control integration. Configured with the Night Latch (ETJ) function, the outside lever retracts the latch only when a key is used, while the inside push bar always permits free exit. Designed for doors measuring 33 to 36 inches wide, it ships less cylinder and without mechanical dogging, in keeping with fire-rated code requirements.

Features

• Fire-rated rim exit device suitable for labeled door openings requiring positive latching.
• Electric latch retraction (ELR) enables remote, electronically controlled latch operation.
• Night Latch (ETJ) trim function allows key-controlled entry while maintaining free egress.
• Sized for doors from 33 to 36 inches in width.
• Supplied less cylinder to accommodate your preferred keying system.
• No mechanical dogging, consistent with fire-rated application standards.
• Durable construction engineered for demanding commercial environments.

Functional Details

The Night Latch function works in combination with electric latch retraction. The outside lever is normally locked, and the latch can be retracted either by key or electronically through the ELR feature for access control. The inside push bar always allows free exit, satisfying life-safety egress requirements.

• Night Latch: Exit only by operating push rail from inside. Key retracts latch bolt for entrance from outside.
• Electric Latch Retraction allows the latch to be retracted electrically for remote operation and access control.

Included Components

This configuration includes the fire-rated rim exit device with ELR electrified latch retraction and the ETJ night latch lever trim. A cylinder is not included and must be ordered separately.
