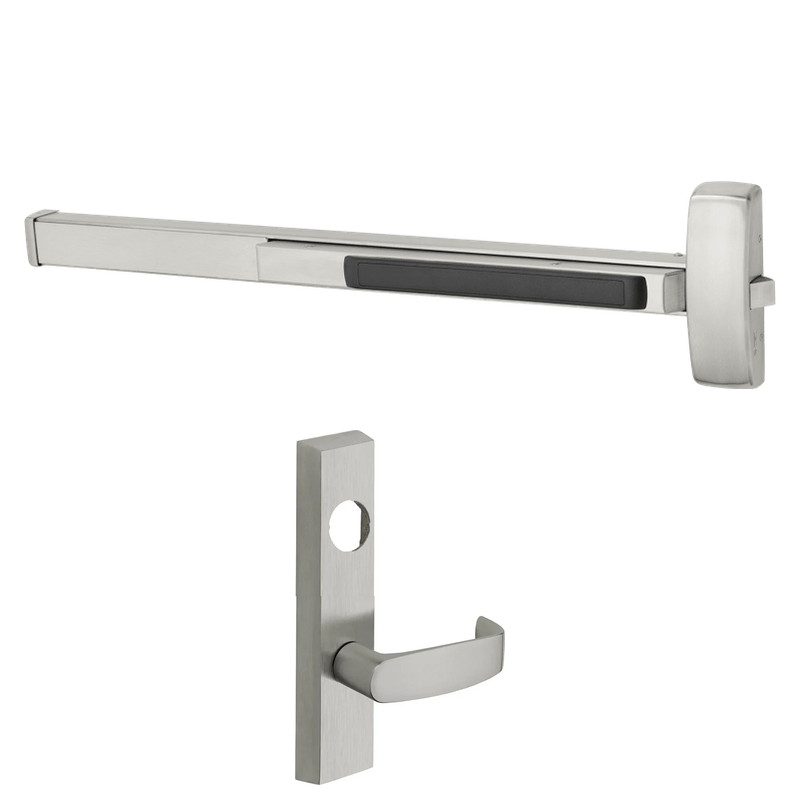

Sargent LC-12-56-8804-F-ETL Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-F-ETL is a fire rated rim exit device engineered for high-traffic commercial openings on doors measuring 33 to 36 inches wide. Built with electric latch retraction (ELR), it allows the latch to be pulled back electronically for remote access control and hands-free entry, while still providing reliable panic egress at all times. This unit ships with the ETL trim for night latch function, meaning a key retracts the latchbolt to unlock entry from the exterior. Supplied less cylinder and without mechanical dogging to meet fire-rated code requirements, it pairs durable construction with the dependable performance Sargent is known for.

Features

• Fire rated rim exit device suitable for doors 33 to 36 inches in width.
• Electric latch retraction (ELR) enables remote, electronic unlocking and hands-free operation.
• Night latch (ETL) function retracts the latchbolt with a key from the outside for controlled entry.
• Supplied less cylinder, allowing you to use your preferred cylinder keying.
• No mechanical dogging, in compliance with fire door assembly requirements.
• Grade 1 construction built for heavy-duty commercial applications.

Functional Details

The night latch (ETL) function keeps the exterior trim locked at all times, with a key used to retract the latchbolt for entry. The electric latch retraction mechanism withdraws the latch electronically to permit push/pull access control and momentary unlocking, while free egress is always available from the inside by depressing the push bar.

• Night Latch (ETL) – Exit only, key retracts latch.
• Electric Latch Retraction (ELR) – Latchbolt retracted electrically.
• Free egress at all times through the push rail.

Included Components

The device includes the rim exit chassis, push rail assembly, and ETL exterior night latch trim. A cylinder is not included and must be ordered separately.
