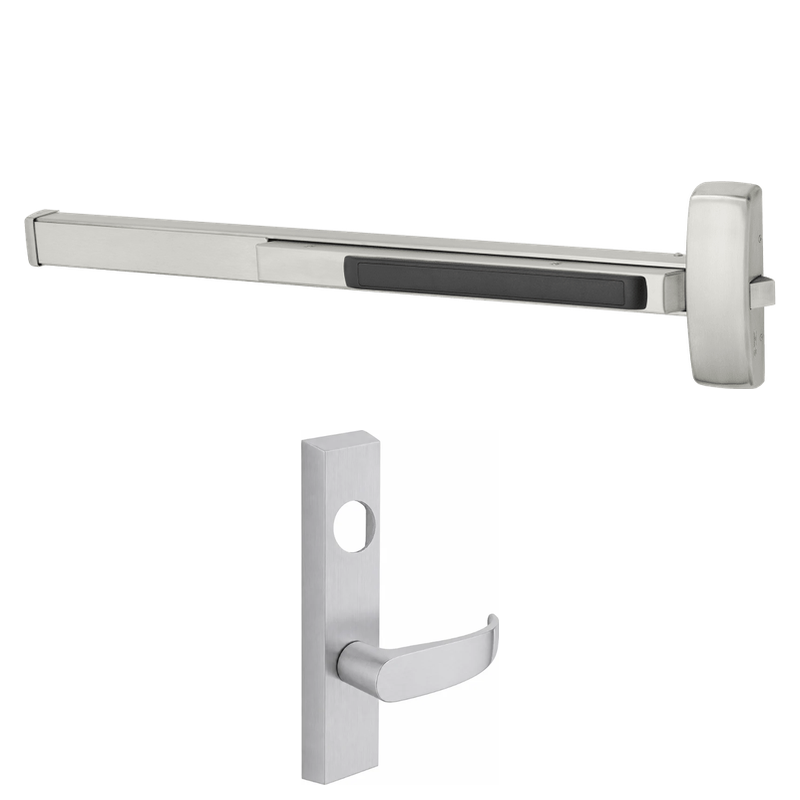

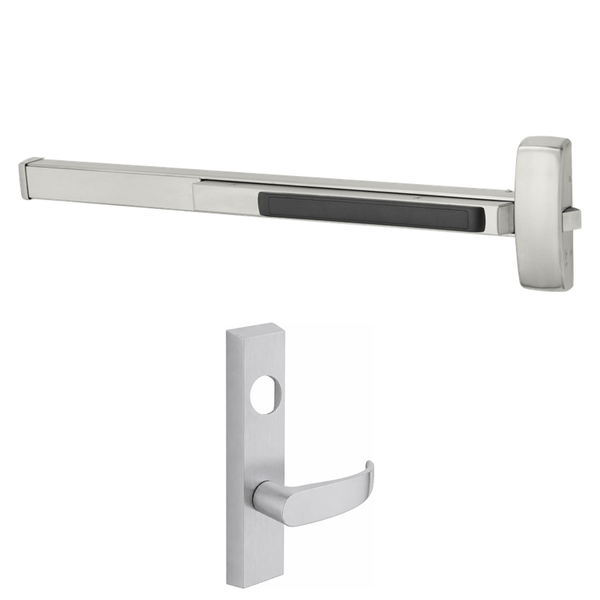

Sargent LC-12-56-8804-F-ETP Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 33-36 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-F-ETP is a heavy-duty electrified rim exit device built for fire-rated openings on doors measuring 33 to 36 inches wide. Engineered with electric latch retraction (ELR), it allows the latch to be withdrawn electrically for controlled access and remote operation, making it ideal for access control integration. Configured for night latch (NL) function with the ETP trim, the exterior lever retracts the latch only when a key is used. Supplied less cylinder for use with your preferred cylinder, this Grade 1 device carries UL fire listing and requires no mechanical dogging, keeping the latch secure on fire-rated applications.

Features

• Electric latch retraction (ELR) for remote and access-control operation of the exit device.
• Fire-rated construction suitable for labeled door openings.
• Night latch (NL) function with the ETP trim for key-controlled exterior access.
• Sized for doors 33 to 36 inches in width.
• Supplied less cylinder, allowing you to install your own mortise cylinder.
• No mechanical dogging, maintaining positive latching on fire openings.
• Grade 1 rim exit device engineered for high-traffic commercial environments.

Functional Details

This device uses electric latch retraction to pull the latch bolt back electrically, holding it retracted so the door can be pushed or pulled freely until power is removed. The night latch trim allows the outside lever to retract the latch only when the cylinder is operated by key, while free egress is always available from the inside.

• Electric latch retraction (ELR) retracts the latch for momentary or sustained operation.
• Night Latch (NL) function: latch retracted by key only, outside lever rigid.
• Free egress at all times from the inside by depressing the push rail.

Arm Type Details

This is a rim-mounted exit device, surface applied to the interior face of the door with the latch engaging a surface strike on the frame, providing straightforward installation and reliable single-door latching.

Included Components

The device ships with the 8804 rim exit chassis, ETP exterior trim, and electric latch retraction hardware. The mortise cylinder is not included and must be ordered separately.
