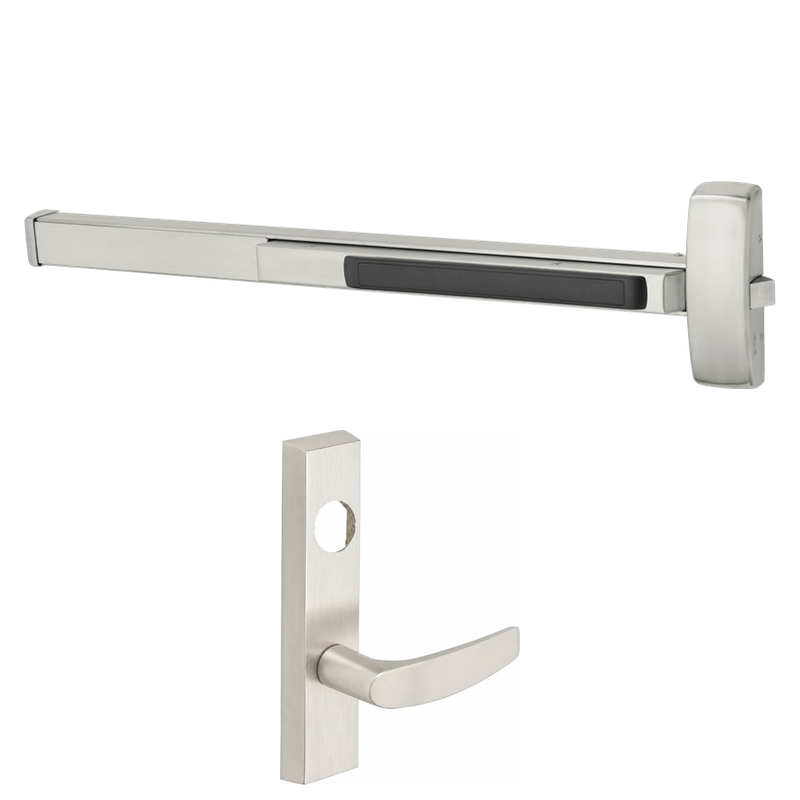

Sargent LC-12-56-8804-G-ETB Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-G-ETB is a heavy-duty electrified rim exit device built for demanding commercial openings that require both fire-rated protection and remote access control. Designed for doors measuring 43 to 48 inches wide, it features electric latch retraction (ELR) that allows the latch to be pulled back electrically for momentary or sustained free access. Configured with the Night Latch function, the outside ETB lever retracts the latch only when a key is used, keeping the door securely latched at all times. Supplied less cylinder and without mechanical dogging, this Grade 1 device pairs rugged reliability with the clean styling of the ET trim, making it well suited for access-controlled entrances in schools, hospitals, and institutional buildings.

Features

• Electric latch retraction (ELR) enables remote release and latch hold-back for controlled access.
• Fire-rated construction for use on labeled fire door assemblies.
• Night Latch (NL) function provides key-retracted entry from the outside for enhanced security.
• Sized for wider openings from 43 to 48 inches in door width.
• Supplied less cylinder, allowing you to match your existing keying system.
• No dogging feature keeps the device latched, consistent with fire door requirements.
• ETB lever trim offers a durable, ergonomic grip with a modern appearance.

Functional Details

The Night Latch function with electric latch retraction allows the latch bolt to be withdrawn electrically for authorized access, while the outside ETB lever retracts the latch only when operated with a key. This combination supports integration with card readers, keypads, and other access control systems for secure, remotely managed entry.

• Night Latch (NL): Outside lever is always rigid. Key retracts latch for entry. Latch retracted by electric latch retraction.

Arm Type Details

The device uses the ETB lever trim on the pull side. The outside lever remains rigid at all times and does not operate the latch mechanically; entry is granted only by key or by electric latch retraction.

Included Components

Includes the 56-8804 electrified rim exit device chassis with electric latch retraction and the ETB lever trim. Mounting hardware is provided. Cylinder is not included and must be ordered separately.
