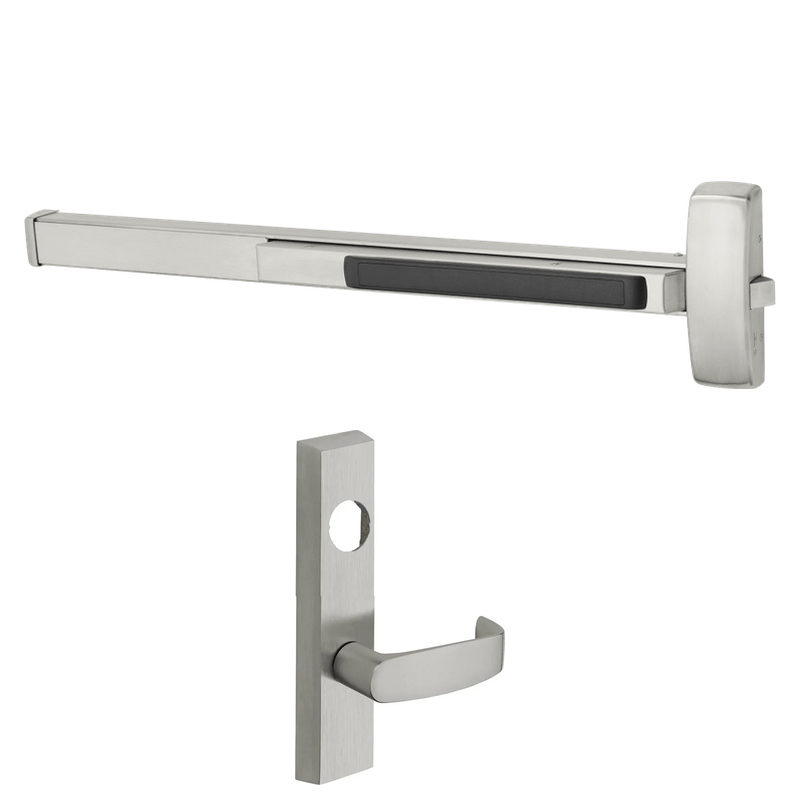

Sargent LC-12-56-8804-G-ETL Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-G-ETL is a heavy-duty electrified rim exit device built for fire-rated openings that require secure, controlled egress. Designed for doors measuring 43 to 48 inches wide, it features Electric Latch Retraction (ELR), allowing the latch to retract electronically for remote access control and seamless integration with building security systems. The 56- prefix identifies the electric latch retraction configuration, while the G (ETL) trim provides night latch function, letting the key retract the latch for entry. Shipped less cylinder, this device accepts your preferred cylinder for simplified keying. Fire-rated construction means no mechanical dogging, maintaining code compliance on labeled door assemblies.

Features

• Electric latch retraction for remote operation and access control integration.
• Night latch (NL) function with ETL trim for key-controlled entry from the outside.
• Fire-rated rim exit device suitable for labeled door assemblies.
• Sized for doors from 43 to 48 inches in width.
• Supplied less cylinder, allowing you to install your own cylinder for keying flexibility.
• No mechanical dogging, keeping the device compliant for fire-rated applications.

Functional Details

The night latch function with ETL (trim G) allows the outside key to retract the latchbolt for entry, while the latch retraction can also be controlled electronically through the electric latch retraction mechanism. This supports momentary or sustained retraction for free passage when the device is energized, and secure latching when de-energized.

• Night Latch (NL): Key retracts latchbolt.
• Electric Latch Retraction (ELR): Latch bolt is retracted electrically.
• Exit device is always operable from the inside for free egress.

Included Components

This order ships as the complete 56-8804 rim exit device with the G (ETL) outside trim and electric latch retraction components. A cylinder is not included and must be ordered separately.
