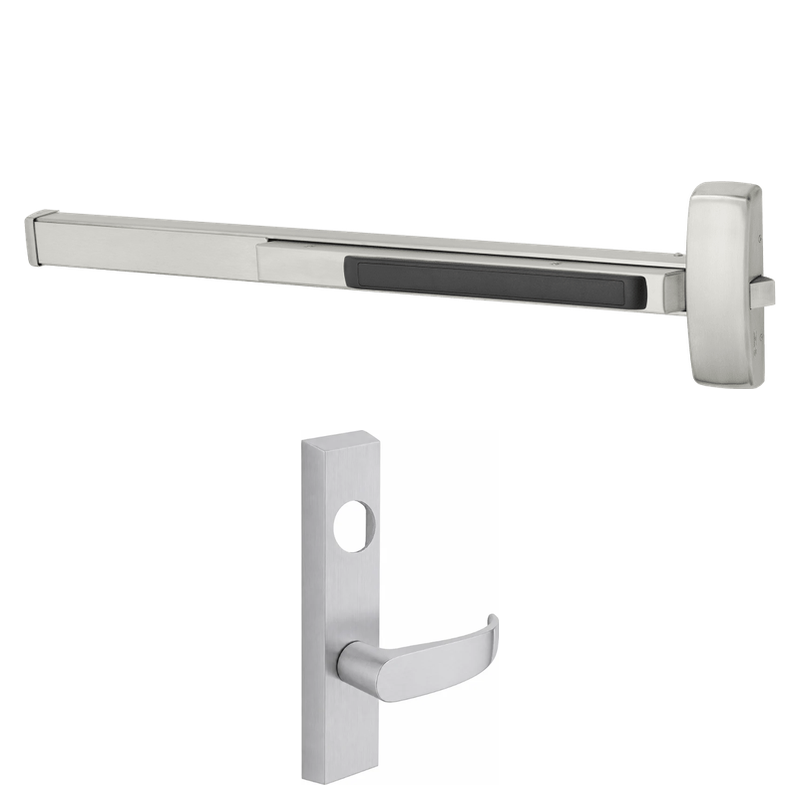

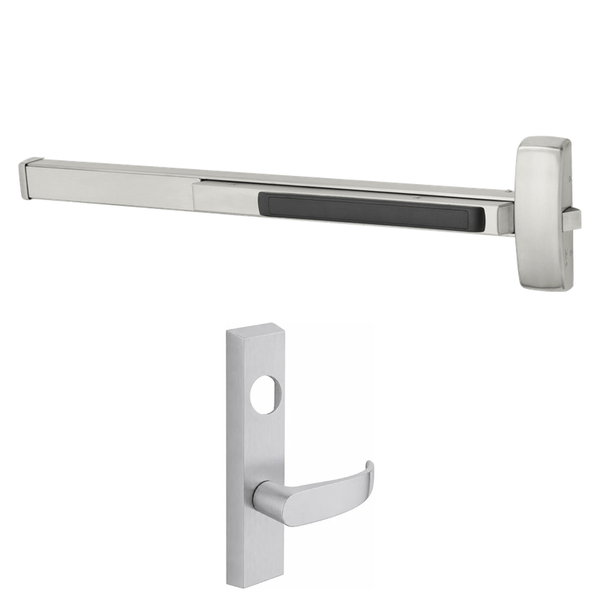

Sargent LC-12-56-8804-G-ETP Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 43-48 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-G-ETP is a heavy-duty electrified rim exit device built for fire-rated openings that demand reliable, remote-controlled access. Designed for doors measuring 43 to 48 inches wide, this Grade 1 device features electric latch retraction (ELR), allowing the latch to be held retracted electrically for controlled entry and automatic door integration. The night latch function pairs with the ETP escutcheon trim, while the less-cylinder configuration lets you match an existing keying system. As a fire-rated device, it ships without mechanical dogging for code compliance. Trusted in schools, hospitals, and commercial facilities, it delivers dependable security and smooth egress in high-traffic environments.

Features

• Electric latch retraction (ELR) enables remote and automatic release of the latch for controlled access.
• Fire-rated construction suitable for labeled door and frame assemblies.
• Night latch (NL) function allows key access from the outside while permitting free egress.
• Sized specifically for doors 43 to 48 inches in width.
• Less-cylinder design so you can supply a cylinder to match your facility keying.
• ETP escutcheon trim with pull for durable, clean exterior operation.
• No mechanical dogging, keeping the device compliant with fire code requirements.

Functional Details

The night latch function provides secure entry control: the outside key retracts the latch for momentary access, while the inside push bar always allows free egress. Electric latch retraction holds the latch bolt retracted when energized, supporting access control integration and automatic operators.

• 12 - 24 VDC continuous duty.
• Electric Latch Retraction (ELR).
• Fire rated devices are supplied less dogging.

Included Components

The device ships with the rim exit chassis, ETP escutcheon trim with pull, and the electric latch retraction mechanism. A mortise cylinder is not included and must be ordered separately.
