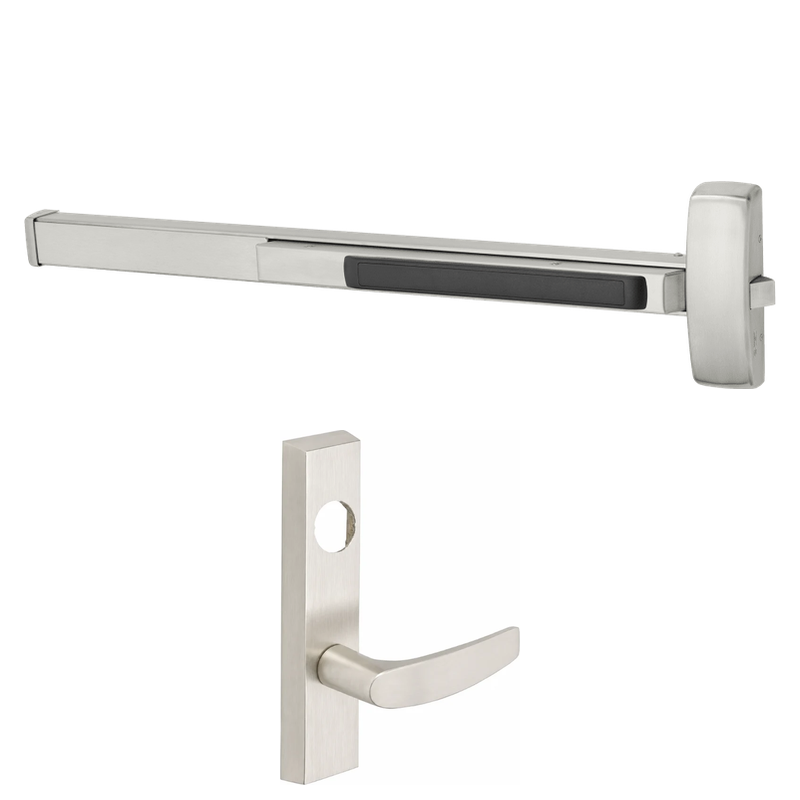

Sargent LC-12-56-8804-J-ETB Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 37-42 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-J-ETB is an electrified fire rated rim exit device built for demanding commercial and institutional openings. Designed for doors measuring 37 to 42 inches wide, it combines electric latch retraction (ELR) with a night latch function, allowing the latchbolt to be electrically pulled back for remote access control and automatic operator integration. The device ships less cylinder for pairing with your preferred mortise cylinder, and includes the ETB exterior trim with J escutcheon. As a fire rated device, it is supplied without mechanical dogging to maintain positive latching at all times, making it a dependable choice for exit doors requiring both life safety and access control.

Features

• Electric latch retraction (ELR) permits remote unlatching and seamless integration with automatic door operators and access control systems.
• Fire rated construction provides positive latching and life safety compliance for fire-rated openings.
• Night latch (NL) function with ETB exterior trim allows key-controlled access from the pull side.
• Sized for door widths from 37 to 42 inches to suit wider commercial openings.
• Less cylinder design lets you specify the mortise cylinder and keying to match your facility.
• No mechanical dogging, keeping the device latched as required for fire rated applications.

Functional Details

The night latch function with electric latch retraction keeps the door securely latched while allowing authorized entry. When power is applied, the latchbolt retracts electrically for push/pull or automatic operator use; on the exterior, the ETB trim with key controls access.

• Night Latch: Exit only by pushpad. Key outside retracts latch.
• Electric Latch Retraction (ELR): Latchbolt retracts electrically for remote unlocking and automatic operator coordination.

Included Components

This configuration includes the 8804 rim exit device chassis, ETB exterior trim with J escutcheon, and the 56 electric latch retraction prefix. The mortise cylinder is not included and must be ordered separately.
