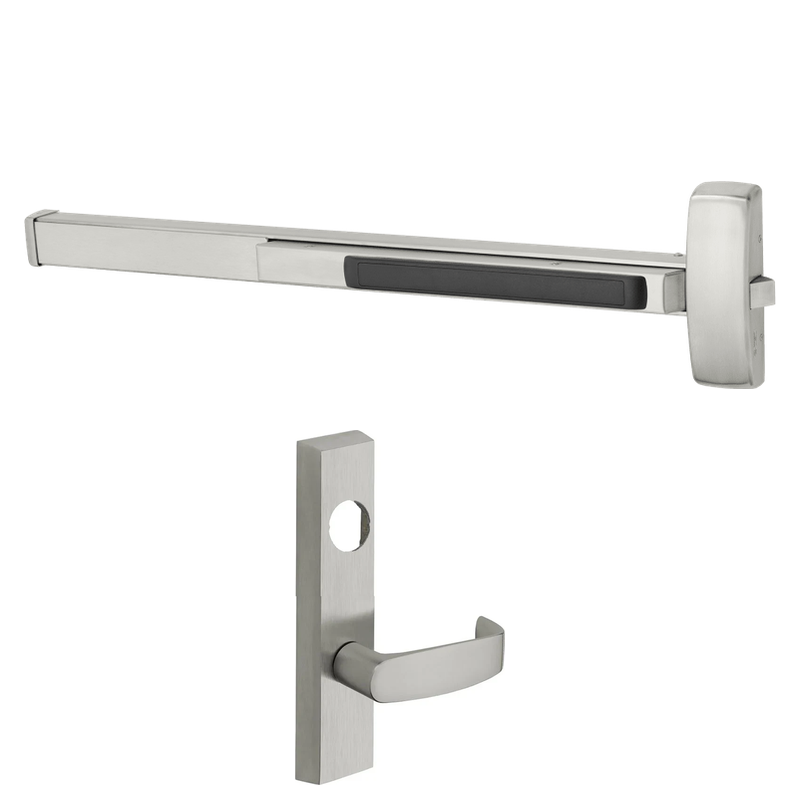

Sargent LC-12-56-8804-J-ETL Electrified Fire Rated Rim Exit Device, Night Latch Function, Electric Latch Retraction, For 37-42 Inch Width Door, Less Cylinder, No Dogging

The Sargent LC-12-56-8804-J-ETL is a heavy-duty electrified rim exit device engineered for high-traffic commercial openings that demand both security and reliable egress. Built for 37" to 42" wide doors, it features electric latch retraction (ELR) that pulls the latch back electrically for remote access control and seamless integration with card readers or access systems. This fire-rated model carries the Night Latch (8804) function with the J escutcheon trim and is supplied less cylinder, giving installers the flexibility to match existing keying systems. With no mechanical dogging, it maintains fire-door compliance while delivering durable Grade 1 performance.

Features

• Fire-rated rim exit device suitable for doors 37" to 42" in width.
• Electric latch retraction allows remote unlocking and integration with access control systems.
• Night Latch (8804) function provides key-operated access from the outside while free egress remains available inside.
• Supplied less cylinder for flexible keying with your preferred manufacturer.
• No dogging feature preserves fire-rated integrity of the opening.
• J-style escutcheon trim offers a clean, robust exterior appearance.
• Grade 1 construction built for demanding commercial applications.

Functional Details

The 8804 Night Latch function uses the outside key to retract the latch for momentary entry, while the push bar always allows immediate free egress from the inside. Electric latch retraction energizes the device to hold the latch retracted, supporting remote release and controlled access operation.

• Night Latch - Key retracts latch bolt.
• Exit device is always operable from inside (free egress).
• Electric latch retraction (ELR) for remote operation and access control integration.

Included Components

The device ships as a complete rim exit assembly with the J escutcheon trim and mounting hardware. A cylinder is not included and must be ordered separately to complete the night latch function.
