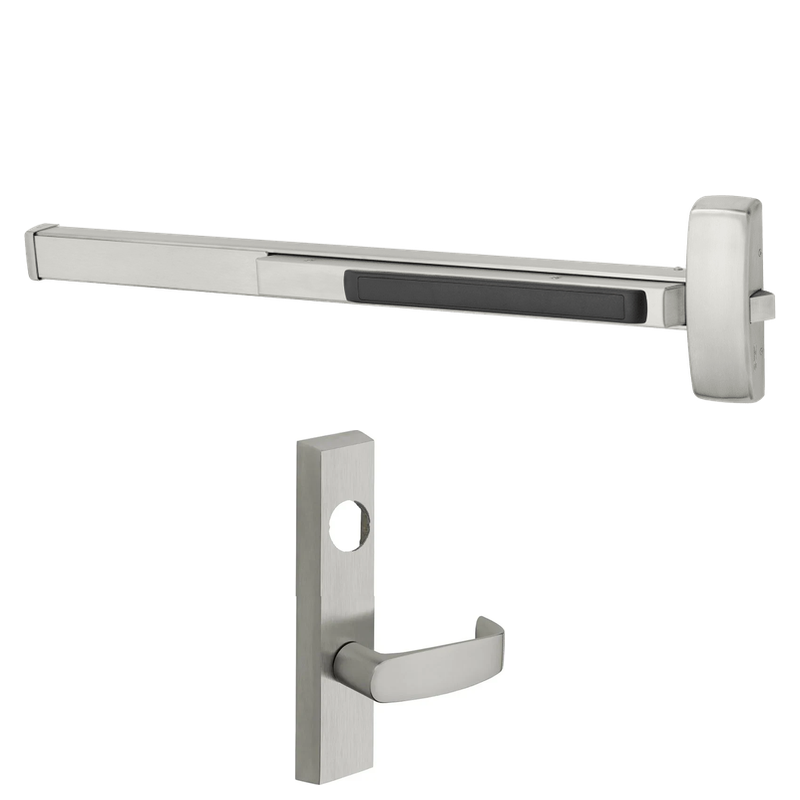

Sargent LC-12-56-8875-F-ETL-24V Electrified Fire Rated Rim Exit Device, Fail Safe Power Off Unlocks Lever, Key Retracts Latch, Electric Latch Retraction, For 33-36" Width Door, Less Cylinder, Less Dogging

The Sargent LC-12-56-8875-F-ETL-24V is a heavy-duty electrified rim exit device engineered for fire-rated openings that require secure, controlled access. Built with electric latch retraction (ELR), it allows the latch to be retracted electronically for remote operation, access control integration, and hands-free entry. Operating on 24V and configured as fail safe, the device unlocks the lever on power loss to support safe egress and emergency compliance. Designed for 33" to 36" door widths and shipped less cylinder and less dogging, this 56-prefix ETL model offers reliable performance for commercial, institutional, and high-traffic environments where life safety and durability are essential.

Features

• Electric latch retraction allows the latch to be retracted electronically for remote and access-controlled operation.
• Fire-rated construction suits openings requiring listed life-safety hardware.
• Fail safe configuration unlocks the lever on power loss for safe egress.
• Operates on 24V for compatibility with common access control power supplies.
• Sized for 33" to 36" door widths.
• Supplied less cylinder, allowing use of a preferred keying system.
• Less dogging, maintaining fire-rated integrity.
• Rim-mounted design for straightforward installation on single or paired doors.

Functional Details

This device uses electric latch retraction to pull the latch bolt in electronically, enabling push/pull operation, remote release, and integration with card readers or other access control systems. In the fail safe mode, removing power unlocks the lever, allowing free access and ensuring egress is never impeded.

• Fail Safe: Power off unlocks lever.
• Key retracts latch.
• Electric latch retraction for momentary or sustained latch pull-in.
